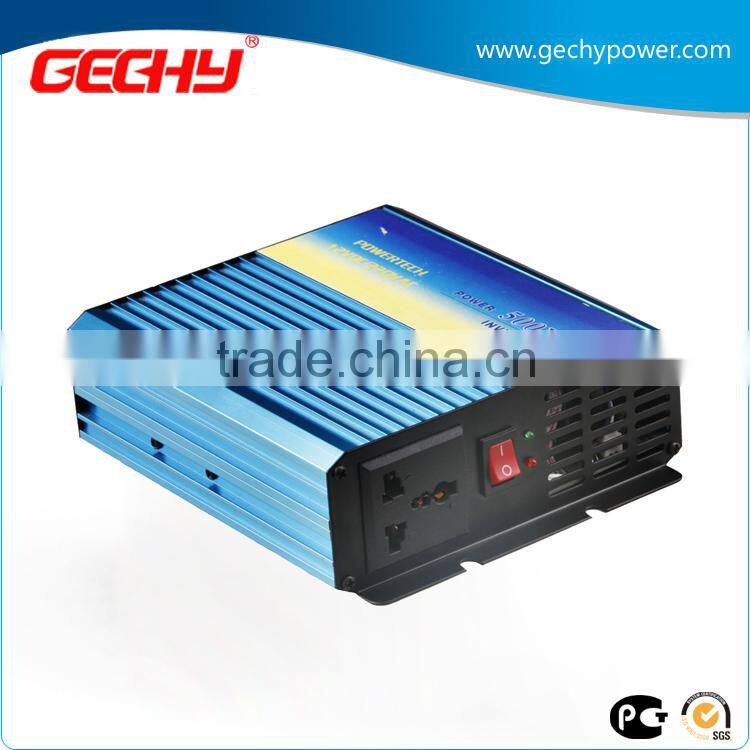

HYM-500W 12v-230v DC to AC Modified Sine Wave Car Power Inverter With Universal Socket

HYM-500W 12v-230v DC to AC Modified Sine Wave Car Power Inverter With Universal Socket thumbnail-1
HYM-500W 12v-230v DC to AC Modified Sine Wave Car Power Inverter With Universal Socket photo-1
US$ 15 - 25 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GECHY
Model Number:
HYM-500
Contact Supplier Request Quote Chat Now
Yueqing Gechy Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GECHY
Model Number HYM-500
Output Power 401 - 500W
Output Type Single
Size 200*150*55mm
Weight 1.2Kg
Input Voltage 12V OR 24V DC
Output Voltage 220VAC/110VAC
Type DC/AC Inverters
Output Frequency 50HZ/60HZ
Output Current <0.4A

HYM-500W 12v-230v DC to AC modified sine wave car power inverter with universal socket

Products Features :

·Small size , light weight and potable

·Easy to use and high efficiency

·Green LED indicates power on,Red LED indicates wrong

·Input & output isolation

·Muti-protection function

·USB output port: 5V 500mA

· Built-in Cooling Fan

Protection Features:

·Low voltage protection

·Over voltage protection

·Overload protection

·Over temperature protection

·Short circuit protection

 ·Reverse connect protection

Power inverter specifications

Model

HYM500-121

HYM500-122

HYM500-241

HYM500-242

Output voltage

110V

230V

110V

230V

Input voltage

12V

12V

24V

24V

High Volt Cut off

15-16V

30-32V

Low Volt Alarm

10.5±0.5V

21±1V

Low Volt Cut Off

10±0.5V

20±1V

Rated power

500W

500W

Surge power

1000W

1000W

Output frequency

50±2Hz OR 60H±2Hz

USB port

5V 500mA

Output waveform

Modified Sine Wave

 No load current

<0.4A

Efficiency

>88%

Max. outer temperature

<65°C

Packing

Gift box

Brand

HOOVS or OEM

Certification

CE-EMC/LVD,RoHS, E-mark

Warranty

18 months

 HYM-500W 12v-230v DC to AC modified sine wave car power inverter with universal socket

Packaging & Shipping

HYM-500W 12v-230v DC to AC modified sine wave car power inverter with universal socket

Our Services

1.Enquiry answered within 24 hours
Don't hesitate to send inquiry to us when you see our products, we will do our best to reply as soon as possible and help you get more profit here

2.OEM/ODM available
you can supply your logo and package design to us, we will do that according to your requirements
3.Customized products supplied
we have 2 electronic engineers, so we can produce all kinds of stabilizers according to your thought
4.Sample for you
Telling me your specific address and your requirements of stabilizers, sample can be offered for test before order, but customer will have to pay the sample charger and freight charge. The sample will be refunded cost when order confirmed.
5. 2 years warranty available:
Every stablizers has 1pcs qualification and 1pcs after-sale service card, customers can get 2 years warranty with the both card

Company Information

HYM-500W 12v-230v DC to AC modified sine wave car power inverter with universal socket

FAQ

Q 1. what's the payment terms?

A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs   and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
