Specifications
ApplicationTensile, compression, flexure, shear
peel tear and other tests of
metallic and nonmetallic
materials.

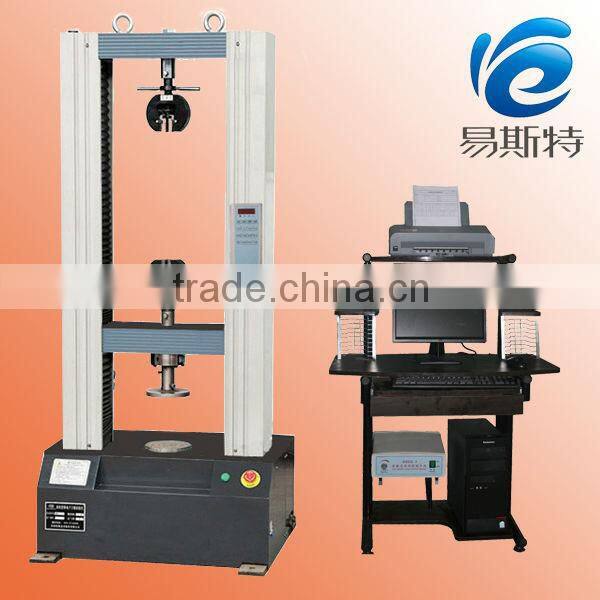

electronic universal testing machine flooring-Standing
Capacity: 100N to 30kN Application: Tensile, compression, flexure, shear, peel, tear and other tests of metallic and nonmetallic materials. Feature and uses: High stiffness columns are used to link upper crosshead with work table, which ensures frame with high rigidity. Apply servo motor to drive crosshead moving though gear system These rugged electromechanical feature SUNS strain gage load cell force measuring systems. Choice of single working space or dual working space load frame and maximum frame capacities from 100Nto 30kN. All testing hardware is fully complemented by SUNS developed software that turns your hardware into a sophisticated quality analysis system. Be sure to examine the software products to determine which package is right for your application. SUNS professional testing software and proprietary control system ultimate come true closed loop testing and control of load, extension and displacement. Easy to use and operate 1. High accuracy: Measurement accuracy of testing speed, load, crosshead displacement can meet or surpass +0.5% of reading 2. High sampling rate: The sampling rate 50Hz, reach advanced international level 3. High load resolution: Better than 1/300000, no step, and unchanged in full range 4. Multi-cycle control modes: Control system is capable in load cycle, displacement cycle, extensometer cycle or their combination 5. Extending function: Equipped with multi-load cells to meet the further requirement of customers 6. High security: The system can inspect and protect automatically once overload, over currency; Position limiter; Emergency stop 7. Automatic determine the parameters of ReH,ReL,Rp0.2,Fm,Rt0.5 ,Rt0.6,Rt0.65,Rt0.7/Rm,E,etc 8. Comply with different standards, such as GB,ISO,DIN,ASTM,JIS Technical Specification: Series Dual Columns Floor-Standing Electromechanical Universal Testing Machine Mode UTM4000 series UTM4102/UTM4202/UTM4502 /UTM4103/UTM4203/UTM4503/UTM4104 UTM4204/UTM4304 Capacity 100N/200N/500N / 1kN/2kN/5kN/10kN/ 20kN/30kN Accuracy Class 0.5 Load range 0.4%~100%FS Load measurement accuracy within ±0.5 of reading Load resolution ±1/300000 of Max. capacity, stepless, no change in full range Long travel extensometer measurement range 10~800mm Long travel extensometer measurement accuracy within ±1% of reading Long travel extensometer measurement resolution 0.008mm Displacement measurement accuracy within ±0.2% of reading Displacement measurement resolution 0.025μm Loading speed range 0.005~5%FS/s Loading speed accuracy Speed<0.05%FS/s,within ±2% of set value,speed≥0.05%FS/s,witin ±0.5%of set value Extension speed range 0.005~5%FS/s Extension speed accuracy Speed<0.05%FS/s,within ±2% of set value,speed≥0.05%FS/s,witin ±0.5%of set value Crosshead speed range 0.001~500mm/min Crosshead speed accuracy within ±0.2% of set value, Constant load,strain,displacement control range 0.5%~100%FS Constant load,strain,displacement control accuracy Set value≥10%FS,within±0.5% of set value, set value<10%FS,within ±1% of set value Frame dimension 694X578X1911mm Max tensile space 840 Max compression space 1000mm Effective test space 395mm Voltage 220V/50Hz,±10% Power 400W 750KW Weight 250Kg
