Help CenterHot Feeding Rubber Extruder for Tire Tread , Seals and Tubes Production
Related Products
-
Tire Tread Rubber Extruder MachineUS$ 10,000 - 20,000MOQ: 1 Set -
Pin Barrel Cold Feeding Rubber Extrusion Machine / Cold Feed Rubber Extruder With Advanced TUC SystemUS$ 10,000 - 20,000MOQ: 1 Set
-
Pin Barrel Cold Feed Rubber Sheet Extrusion MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Pin Barrel Cold Feed & Normal Cold Feed Rubber Extruder MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Hot Feed Rubber Extruder Machine/rubber MachineUS$ 2,800 - 38,000MOQ: 1 Set

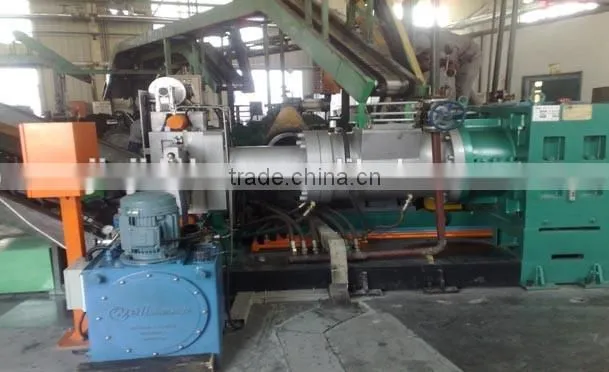

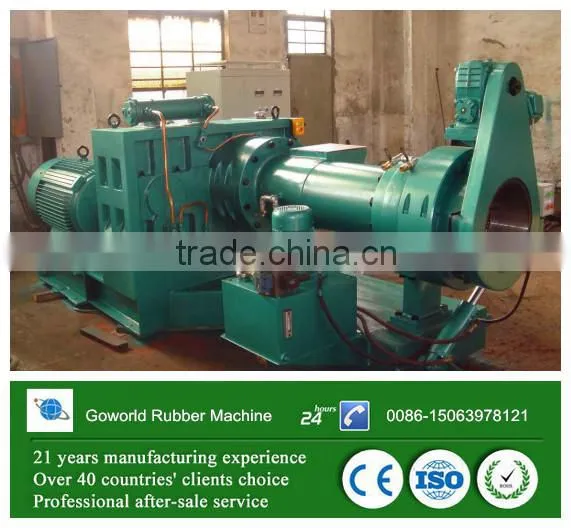

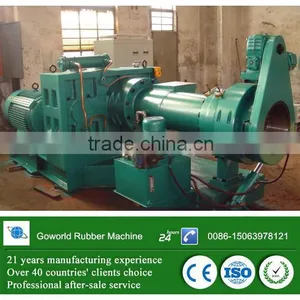

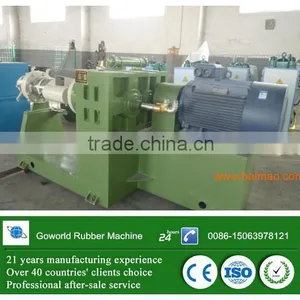

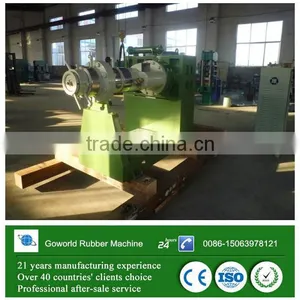

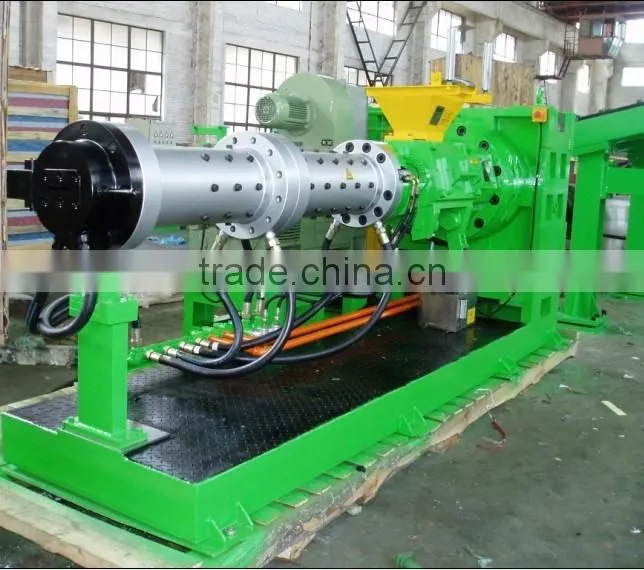

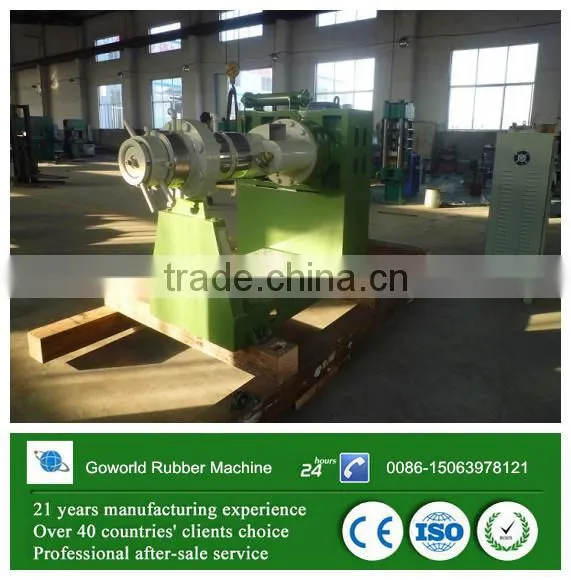

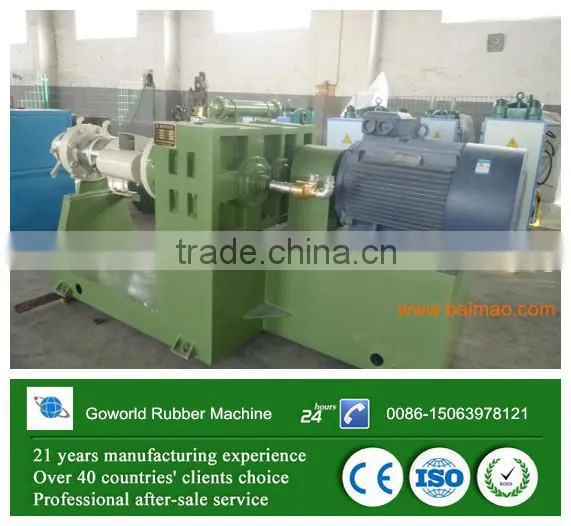

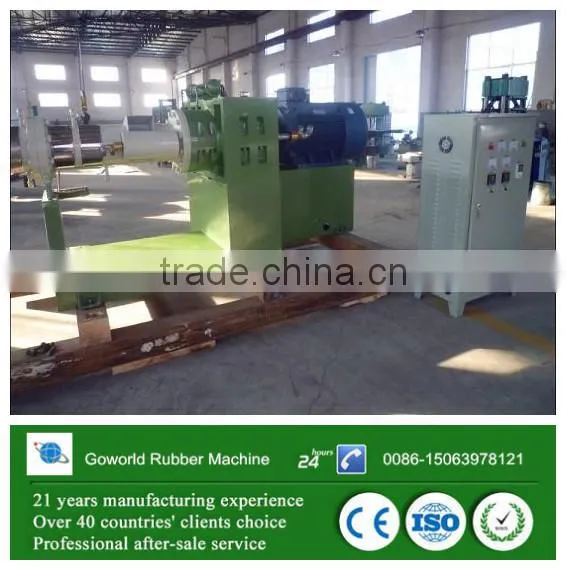

Hot feed rubber extruder machine
Following are machine features
1. Screw is made of best 38CrMoALA, its hardness is higher generally than HRC62 ( 60-65 ), Depth of nitrogen is higher than 0.55-0.7 mm ( 0.4-0.7 )
2. Bush is also made of 38CrMoALA, its hardness is generally higher than HRC66( 65-70 ), Depth of nitrogen is generally higher than 0.55-0.7 mm ( 0.4-0.7 mm )
3. Feeding device is made of feeding roller and feeding barrel, Feeding roller is driven by gears and its structure resembles Italy type. The rubber will never leak out, then it is never impossible for that the rubber enters into the bearing bush.
4.Screw made of special steel is with nitrogen treatment,durable.
5.Jacketed type barrel can be cooled for cooling the rubbers effectively.
6.Double head strainer to be quickly and easily exchanged.
7.Smoothly running and high output.
8.Equipped with die-head auto opening system when electric power is cut off.
Techncial Parameters
| screw |
motor (kw) |
ntrol unit | Max.capacity | |||||
|
diameter (mm) |
L/D | Max.speed(r/m) | zones | power | (kg/h) | |||
| XJD-90X12D | 90 | 12 | 60 | Z4 | 45 | 4 | 6*4 | 320 |
| XJD-120X12D | 120 | 12 | 50 | Z4 | 75 | 4 | 6*4 | 650 |
| XJD-150X12D | 150 | 12 | 45 | Z4 | 160 | 4 | 10*4 | 1500 |
| XJD-200X12D | 200 | 12 | 30 | Z4 | 220 | 5 | 12*4 | 2200 |
| XJD-250X12D | 250 | 12 | 25 | Z4 | 450 | 4 | 16*4 | 3800 |
1.we will one year guarantee for the machine . During this period if there is anything wrong with machine , supplier are responsible for it and should offer the best spare part freely for buyer
2.supplier should send professional if required by customer
3.we will offer service for whole life of machine
Factory Brand---Qingdao Goworld Rubber Machine Co ., Ltd
Following is customer visiting showing
Following is our certificate show
Contact Information
contact us , we will send you good product catalogue and working video
