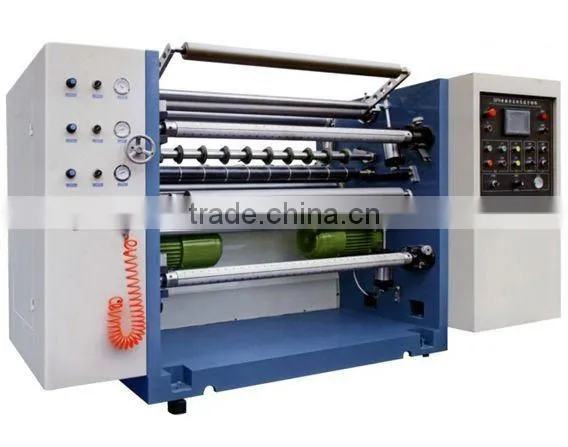

Help CenterJFQ-C Slitting Machine
Related Products
-
Surface Rewining Roll Slitting MachineUS$ 1,000 - 30,000MOQ: 1 Set -
JFQ-B Slitting MachineNegotiableMOQ: 1 Set
-
JFQ-A CE Approved Paper Slitting Machine, Paper Slitter, Paper Slitting and Rewinding MachineUS$ 5,000 - 60,000MOQ: 1 Set
-
JFQ-B SlitterNegotiableMOQ: 1 Set
-
JFQ-A CE Approved Film Slitting Machine, Film Slitter, Film Slitting and Rewinding MachineUS$ 5,000 - 60,000MOQ: 1 Set
Specifications
This machine is mainly used to cut paper, laminated film, aluminum foil, etc.2. Entire machine is controlled by PLC(two vecto
|
1. This machine is mainly used to cut paper, laminated film, aluminum foil, etc.
2. Entire machine is controlled by PLC(two vector motors), man-machine interface, screen touch operation
3. Unwinding part adopts the import magnetic powder brake,
realizes by the PLC automatic counting, as well as constant tension control for unwinding
4. transmissiont part uses the vector frequency conversion motor, realize the constant line speed control.
5. Unwinding part is shaftless, adopt air cylinder equipment, vice- clamps electrically operated by the lead screw to adjust.
6. Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic diameter counting, auto tension control.
7. Auto meter presetting, auto meter counting, auto stoppage , etc.
8. EPC error correction device is positive to assure the accuracy
MAIN TECHNICAL SPECIFICATION:
Width of machine |
1300mm |
Max.diameter of raw material |
φ1000mm |
Max rewinding diameter |
φ600mm |
Speed of machine |
0-300m/min |
Total power |
8kw |
Overalldimensions(L×W×H) |
1800×2800×1600 |
Weight of machine |
2800kg |
