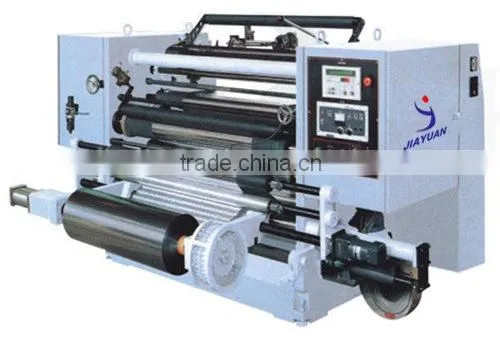

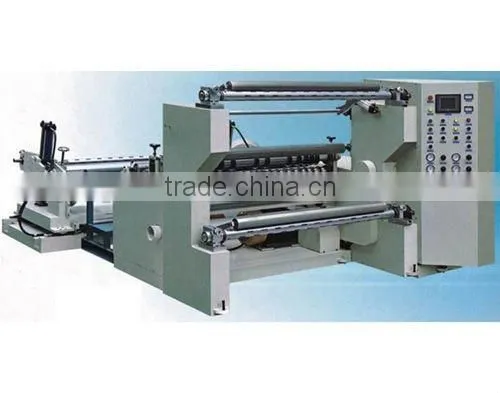

JFQ-B Slitter

JFQ-B Slitter thumbnail-1
JFQ-B Slitter photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Textiles
Packaging Type:
Other, wooden box
Contact Supplier Request Quote Chat Now
Ruian City Jiayuan Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Textiles
Packaging Type Other, wooden box
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Power 3.5kw
Place of Origin Zhejiang, China
Brand Name jiayuan
Model Number JFQ-B

Specifications

The machine is mainly used to slit stick paper, craff paper and other kinds of paper
2. Entire machine is controlled

CHARACTERISTICS
1.       The machine is mainly used to slit stick paper, craff paper and other kinds of paper
2.       Entire machine is controlled by PLC(two vector motors), man-machine interface, screen touch operation
3.       Unwinding part adopts imported pneumatic brake control, the rolling diameter is automatically calculated by PLC, to achieve constant tension control.
4.       Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively cut off interactant tension between rewind and unwind
5.       Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic cliameter counting auto tension control.
6.       Unwinding parts adopts hydraulic power feed, which can save much labour force and shorten time.
7.       Auto meter presetting, EPC error correction device is positive to assure the accuracy.
8.       The feature of machine is stability, secunlty, efficient.,etc

MAIN TECHNICAL PARAMETER

Max. width of roller

1100-1800mm

Max. diameter of raw material

1300mm

Max. diameter of rewinding

800-1000mm

Speed of machine

16-250m/min

Total power

19KW

Overall dimensions

3200×2500×1500mm

Weight of machine

3000KG



JFQ-B slitterJFQ-B slitterJFQ-B slitterJFQ-B slitterJFQ-B slitter
