PLC Controlled High Speed Roll Material Slitting and Rewinding Machine for Adhesive Tape, PVC, OPP, PET

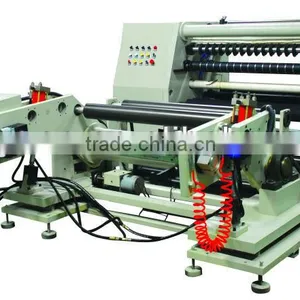

PLC Controlled High Speed Roll Material Slitting and Rewinding Machine for Adhesive Tape, PVC, OPP, PET photo-1
US$ 1,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Slitting Rewinder
Computerized Yes
Place of Origin Zhejiang, China
Brand Name JIAYUAN
Model Number JFQ-B
Voltage 380V
Power(W) 7KW
Dimension(L*W*H) 2100MM*1800MM*1200
Weight about 1800kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Main Characteristics:


1.       The machine is mainly used to slit stick paper, craft paper and other kinds of paper
2.       Entire machine is controlled by PLC(two vector motors), man-machine interface, screen touch operation
3.       Unwinding part adopts imported pneumatic brake control; the rolling diameter is automatically calculated by PLC, to achieve constant tension control.
4.       Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively cut off interacting tension between rewind and unwind
5.       Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic diameter counting auto tension control.
6.       Unwinding parts adopts hydraulic power feed, which can save much labor force and shorten time.
7.       Auto meter presetting, EPC error correction device is positive to assure the accuracy.
8.       The feature of machine is stability, security, efficient, etc.



Technical Parameter:



Model

JFQ-B1100

JFQ-B1300

JFQ-B1600

Max Width of Unwinding

1100mm

1300mm

1600mm

Max Diameter of Unwinding

1400mm

1400mm

1400mm

Min Width of Slitting

20mm

20mm

20mm

Max Diameter of Rewinding

500mm

500mm

500mm

Max Speed

200m/min

200m/min

200m/min

Slitting and Rewinding Prescision

±0.2mm

±0.2mm

±0.2mm

Total Power

7kw

7kw

400kg

Suitable Power Supply

380V/50Hz

380V/50Hz

380V/50Hz

Weight

2100kg

2300kg

2600kg

Overall Dimension(L×W×H)

2850×2150×1350mm

2850×2350×1350mm

2850×2650×1350mm



PS: any doubts or need video, please call Miss Monica. Cel: 86-13587591360  Skype: monica913601

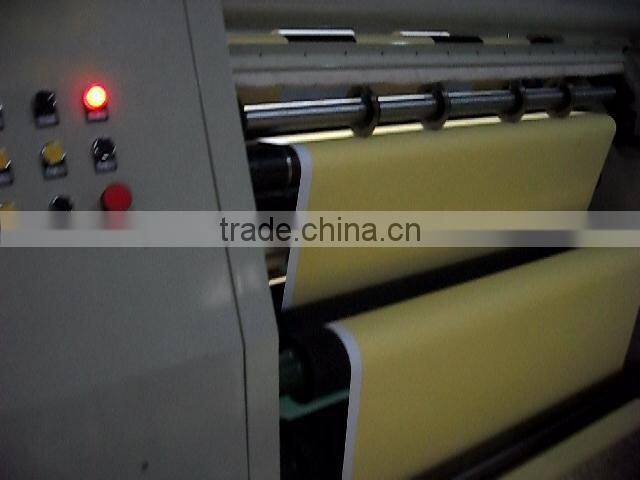

PLC controlled high speed roll material slitting and rewinding machine for adhesive tape, PVC, OPP, PET

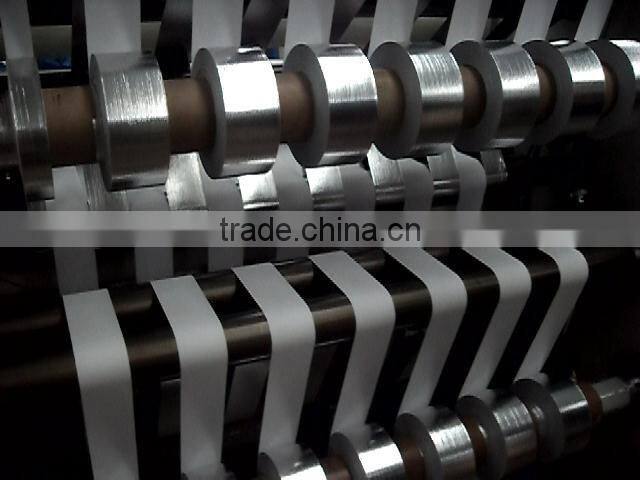

PLC controlled high speed roll material slitting and rewinding machine for adhesive tape, PVC, OPP, PET

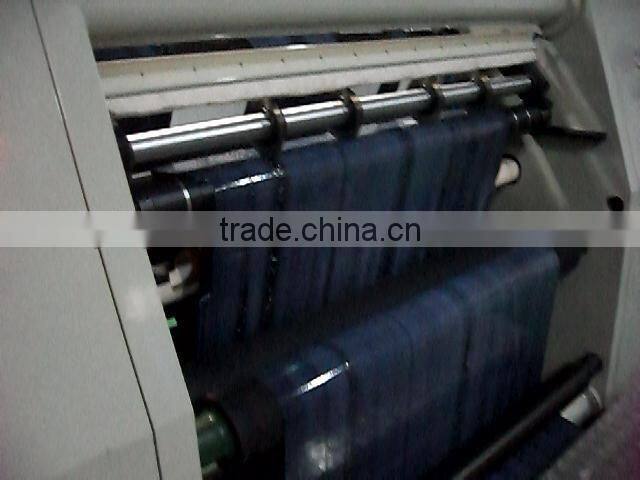

PLC controlled high speed roll material slitting and rewinding machine for adhesive tape, PVC, OPP, PET

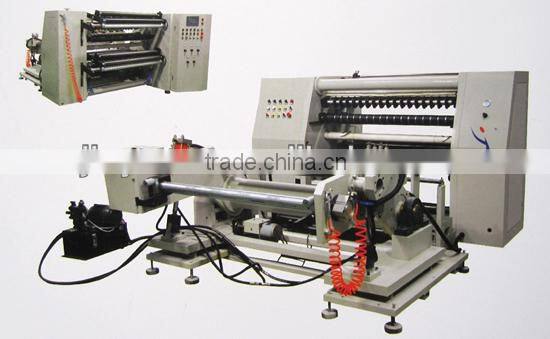

PLC controlled high speed roll material slitting and rewinding machine for adhesive tape, PVC, OPP, PET

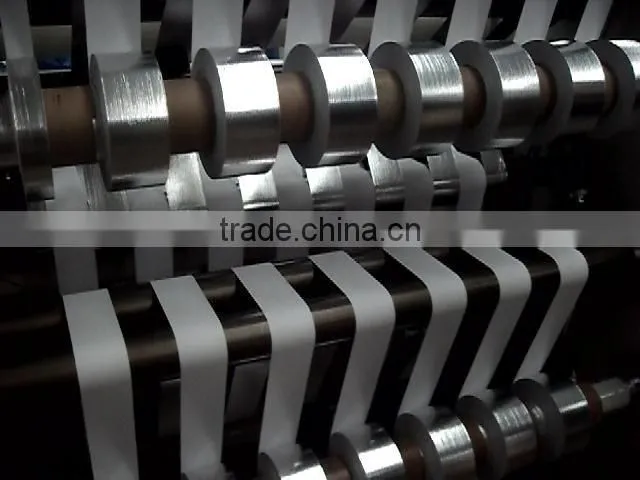

PLC controlled high speed roll material slitting and rewinding machine for adhesive tape, PVC, OPP, PET
