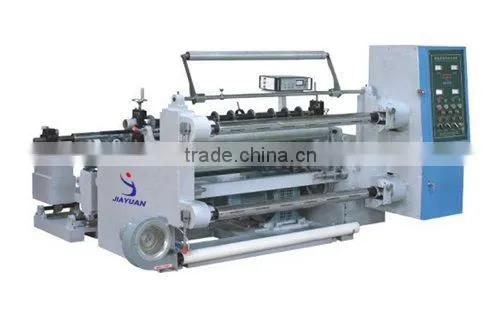

Jiayuan High Speed Plastic Film Slitting Machine/Paper Slitting Machine (BOPP, CPP, PE, PET, PC, Aluminium Foil Slitting Rewinding Machine)/Slitter Rewinder
Application
Suitable for slitting rewinding jumbo roll plastic film, paper, aluminium foil, cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, foil roll, all kinds of paper rolls, film and printing of various materials to slitting.
Feature
- The motor unit adopts three-motor connective control with high speed, stable tension and nice looking products.
- It’s equipped with tension detecting device with PLC auto constant tension control system.
- The rewind press roller system adopts combined device of discontinuous movement and air pressure auxiliary control to ensure minimum distance between press roller and products, and also to ensure different materials converting.
- The rewind system can be changed easily from air shaft to differential shaft.
- It’s equipped with infrared ray auxiliary paper core position device to save time.
- It’s equipped with finished products fast unloading device.
- Waste collect system can choose left-right moveable surface rewinding type, servo motor control center rewind type and blower fan collect type.
Main Technical Parameters
Jumbo roll width |
1300mm |
1600mm |
Diameter of jumbo roll |
1200mm |
1200mm |
Diameter of rewinding |
500mm |
500mm |
Inner dia.of paper core |
3''or 76mm(optional: 6''or 152mm) |
3''or 76mm(optional 6'' or 152mm) |
Slitting speed |
200m/min |
200 m/min |
Tolerance of EPC |
+-0.1mm |
+-0.1mm |
Min.width of produce |
15mm |
15mm |

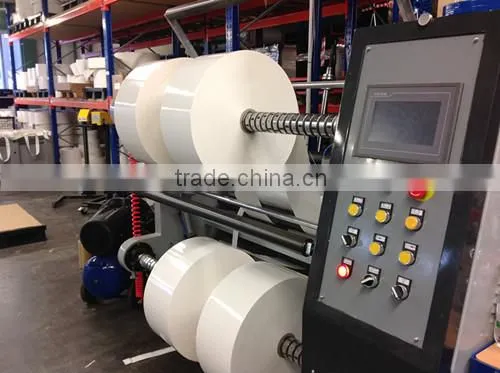

Machine operating on Russia customer factory:
Delivery Time: within 30 working days after we receive the deposit
(Noted: Machine can be shipped after Inspection only.)
Warranty Time: 1 year
Packing: wooden case
