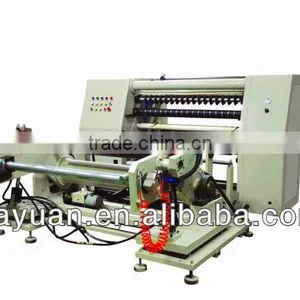

Help CenterComputerized High Speed Slitting and Rewinding Machine, Paper and Film Slitter and Rewinder
Related Products
-
JFQ-320 Slitting Machine for OPP, PET, Adhesive Tape, Automatic ShutdownUS$ 2,000 - 40,000MOQ: 1 Set -
Slitting Machine for Paper, Thermal Paper,kraft PaperUS$ 1,000 - 20,000MOQ: 1 Set
-
Vertical Automatic Slitting MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
JFQ-M Computerized Surface Coiling Slitter / Sheet CutterUS$ 2,000 - 40,000MOQ: 1 Set
-
Automatic JFQ-320 Adhesive Tape / Label / Paper / PP / PVC / OPP / PET / PE / Foam / Fabric Roll Slitting Machine , CE ApprovedUS$ 1,000 - 20,000MOQ: 1 Set

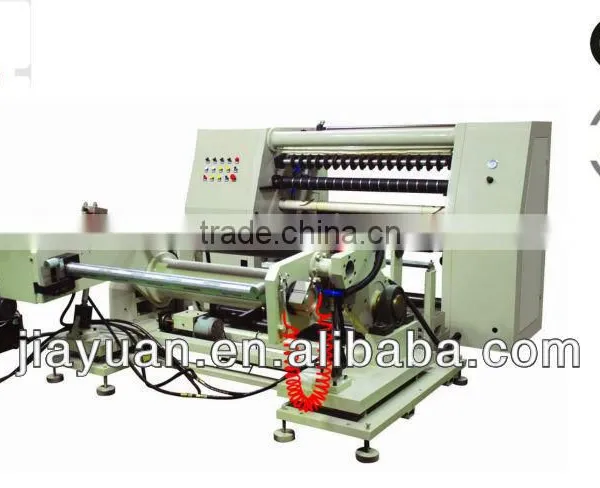

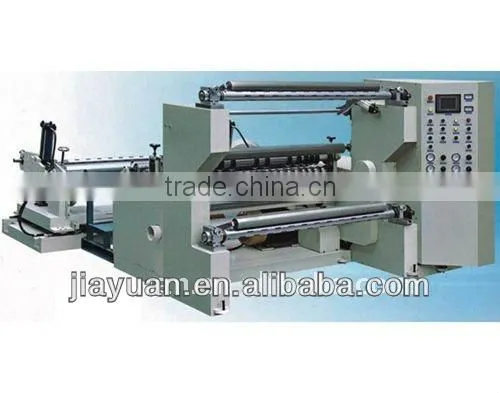

Main Characteristics of Roll Slitting Machine:
1. The paper roll and BOPP film slitter is mainly used to slit stick paper, craft paper and other kinds of paper
2. Entire machine is controlled by PLC(two vector motors), man-machine interface, screen touch operation
3. Unwinding part adopts imported pneumatic brake control; the rolling diameter is automatically calculated by PLC, to achieve constant tension control.
4. Traction control is driven by a vector variable frequency motor, to achieve constant linear velocity control, and effectively cut off interacting tension between rewind and unwind
5. Rewinding part uses the vector frequency conversion motor, to drive magnetic powder clutch, realized by the PLC automatic diameter counting auto tension control.
6. Unwinding parts adopts hydraulic power feed, which can save much labor force and shorten time.
7. Auto meter presetting, EPC error correction device is positive to assure the accuracy.
8. The feature of machine is stability, security, efficient, etc.
Technical Parameter of Roll Slitting Machine:
Model |
JFQ-B1100 |
JFQ-B1300 |
JFQ-B1600 |
Max Width of Unwinding |
1100mm |
1300mm |
1600mm |
Max Diameter of Unwinding |
1400mm |
1400mm |
1400mm |
Min Width of Slitting |
20mm |
20mm |
20mm |
Max Diameter of Rewinding |
500mm |
500mm |
500mm |
Max Speed |
200m/min |
200m/min |
200m/min |
Slitting and Rewinding Prescision |
±0.2mm |
±0.2mm |
±0.2mm |
Total Power |
7kw |
7kw |
400kg |
Suitable Power Supply |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Weight |
2100kg |
2300kg |
2600kg |
Overall Dimension(L×W×H) |
2850×2150×1350mm |
2850×2350×1350mm |
2850×2650×1350mm |
