Home > Products > Die Cutting Machine > Rotary Die Cutting Machine With Slitting Function For Self Adhesive Labels

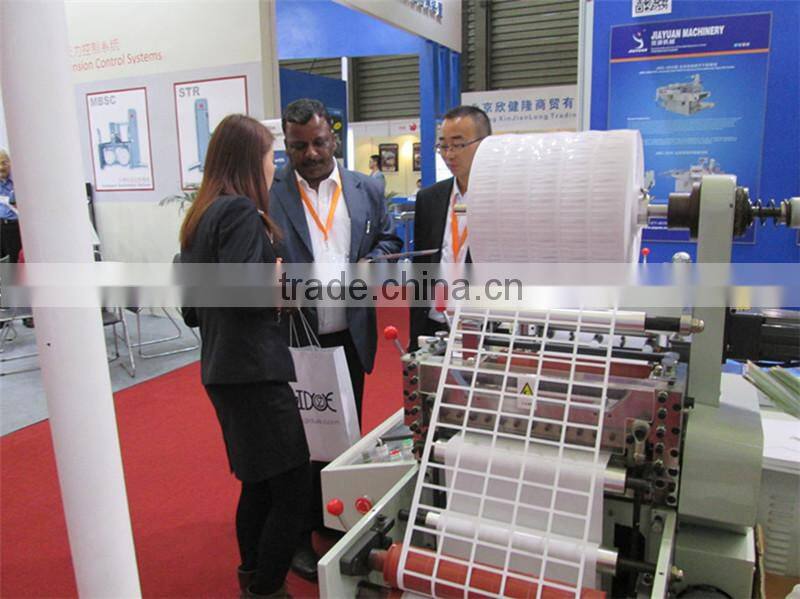

Rotary Die Cutting Machine With Slitting Function For Self Adhesive Labels
- 5 Set / Sets per Month
- Ningbo
- T/T Credit Card
You May Like
-
Blank Printed Adhesive Label Die Cutting Machine
-
JMQ 320 Type Flat Bed Label Die Cutting Machine/flatbed/flat To Flat /diecutting Machine
-
2016 Has Video Iml Sticker Label Die Cut Flat Bed Machine With Punching,Hot-stamping,Laminating
-
High Speed Label Rotary Die Cutting Machine With Slitting Function
-
Die cutting machine for ADHESIVE TAPE Die Cutting Machine
-
JMQ-320A automatic label die cutting machine adhesive sticker die cutting machine
Product Details
| Condition | New | Type | Die-cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Jiayuan | Model Number | JMQ-320A | |
| Voltage | 220v | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 1600*900*1300 | Weight | 600kg | |
| Certification | CE | Warranty | 1 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main characteristics of Flat Bed Roll to Roll Die Cutter:
Rotary die cutting and slitting machine adopt one group rotary die cutting station. this machine is suitable for die cutting and slitting for bank label. it is with auto.length set,auto stop,web guaiding etc fuction.the machine has advantage of high speed,high efficiency,accurate slitting,easy opration,stable running.
Parameter of Flat Bed Roll to Roll Die Cutting Machine:
Cutting speed | 70(m/min) |
slitting speed | 75m/min |
die cutting girth | 170-380mm |
Max width of roll | 320mm |
Max diameter of rewinding roll | 500mm |
Max diameter of unwinding roll | 480mm |
Total power | 2.2KW |
Power voltage | 220V±10% |
Machine weight | About 600kg |
Overall dimensions(L×W×H) | 1600×900×1300mm |
Optional Device:
Punching System: can be middle or side punching;
Lamination System: can be installed in different postion;
Hot-stamping System.
