JMQ-320A

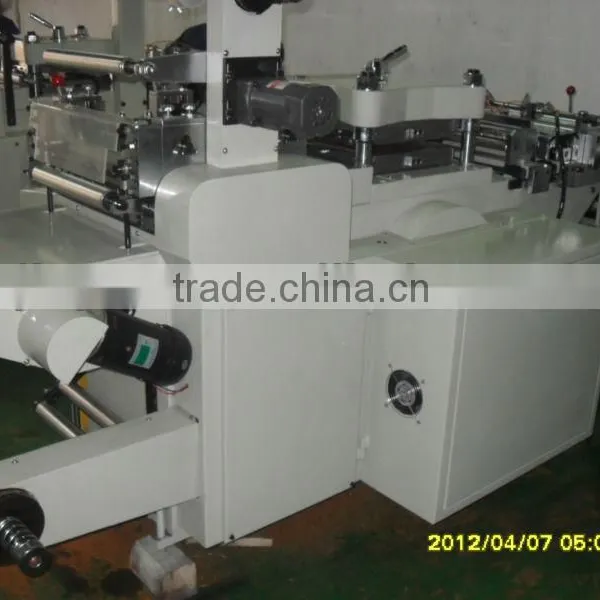

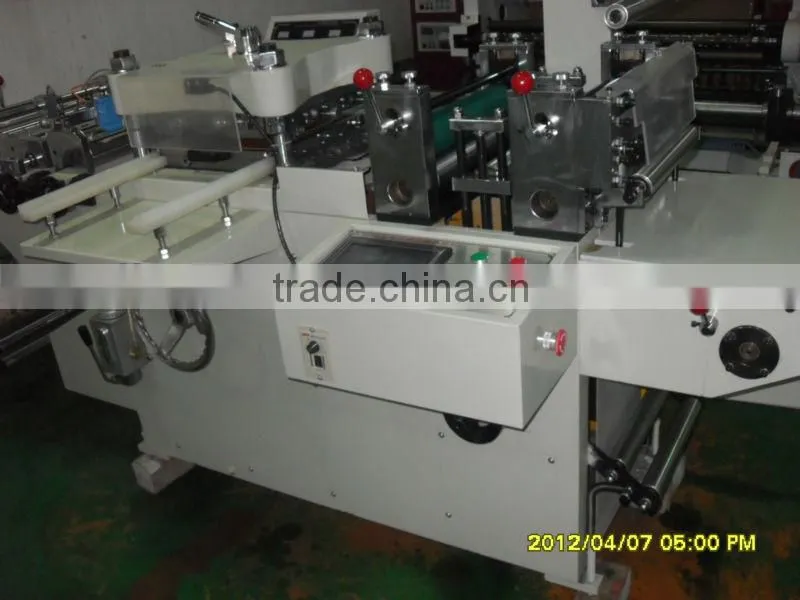

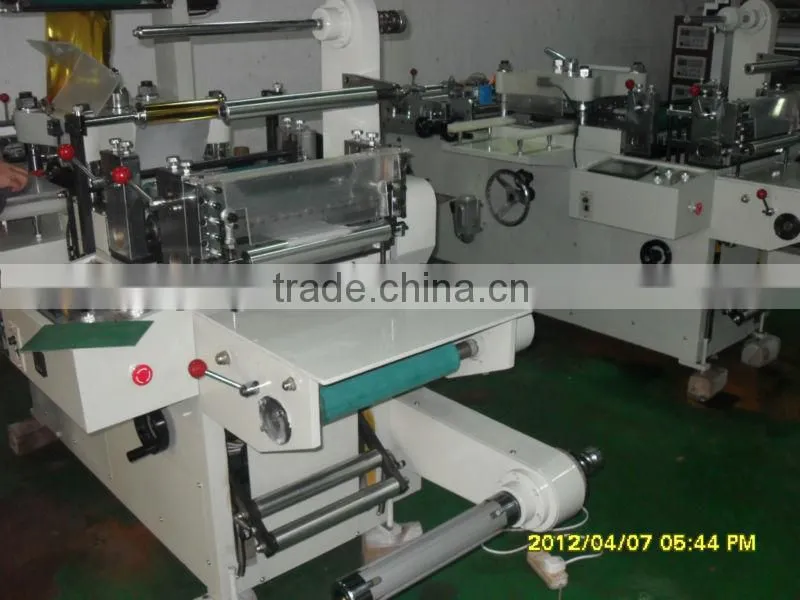

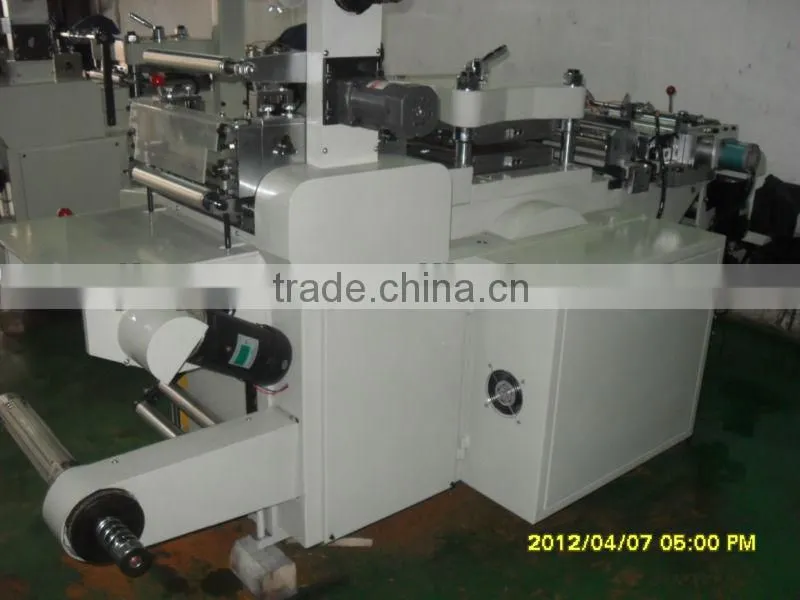

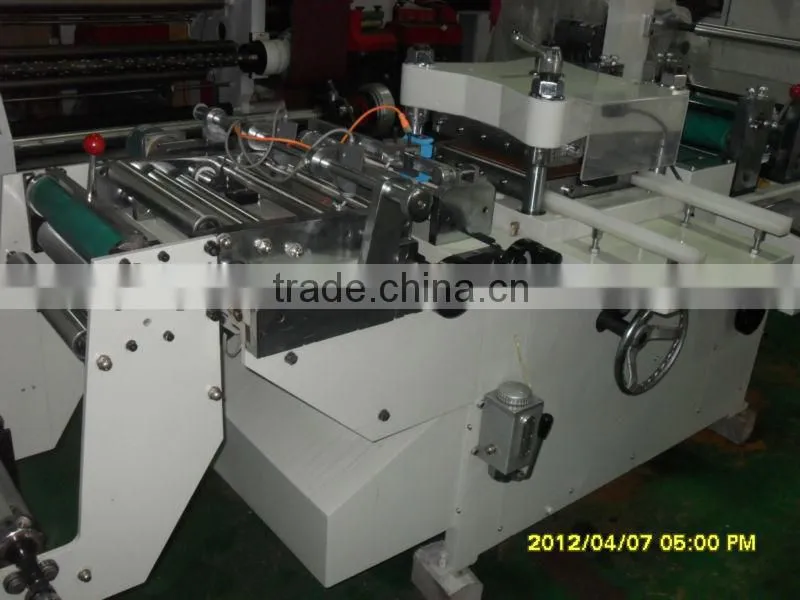

Main characteristics of Flat Bed Roll to Roll Die Cutter:
This Flat Bed Roll to Roll die cutting machine die cuts through flat pressing and high precision unit while shifting materials and slitting are controlled through servomotor. The printing Abel’s two-faced and Lengthways the color marks from three optics electric eyes to have exquisite tracking to locate, die cut, collect the discarded waste, slit or auto label in one processing. It is very applicable to die cut free paper adhesive tape, Dacron film trademark and laser anti-false trademark. It is ideal equipment for soft printing machine, continuous thread printing machine. Intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.
Optional device:
Hole punching device
Laminating device
Hot-stamping device
Parameter of Flat Bed Roll to Roll Die Cutting Machine:
Cutting speed |
20-180(time/min) |
Max web width |
320mm |
Max mould cutting width |
300mm |
Max unwind diameter |
450mm |
Max mould cutting length |
290mm |
Positioning Precision |
±0.1mm |
Main motor power |
2.2KW |
Total power |
3.5KW |
Power voltage |
220V±10% |
Machine weight |
About 1500kg |
Overall dimensions(L×W×H) |
2800×950×1400mm |
