Specifications
OP-1325S Plasma cutting machine (industrial type)1,Panasonic motor servo
2,Safeyy and convenience
3,Without any distortion
Product introduction:
OP-1325S cnc plasma and waterjet cutting machine
Functions and Applications:
Machine Data:
Machine Size |
1850*3000*1300 |
MM |
Working Area |
1300*2500 |
MM |
Material Thickness |
0-25 |
MM |
Cutting Speed |
0-20000 |
MM/Min |
Power |
8500 |
W |
Input Voltage |
3-Phase 380V/50Hz |
V/Hz |
Plasma Current |
40A , 60A, 100A, 120A |
A |
File Transfer |
USB Interface |
|
ARC Mode |
Non-Contact ARC |
|
Net Weight |
3000 |
KGS |
Functions and Applications:
Structure |
Adopted the design of double light beam to ensure the good rigidity, low weight and low inertia. |
Feature |
Gantry type structure, Y axis apply the helical high rack and pinion . X axis adopts high accurate ball screw transmission. |
Merits |
Small cutting incision , clear , no dregs , avoiding the secondary repair again. |
Material |
Iron Sheet, Aluminum Plates, Zinc Plates, White Iron Sheet, Titanium Plates and other metal processing. |
Software |
Wentai, Artcam, Beihang Haier, Type3, or through the software switcher to read AUTOCAD to form DXF format. |
Service:
Warranty |
One year |
Technical Support |
All Life |
Trading Terms:
Payment Terms |
T/T |
Delivery Terms |
FOB Shanghai |
Payment Condition |
By T/T , 30% as deposit and the balance should be paid off before shipping |
Packing |
Exported Standard Pack |
Supply Capacity |
200Sets / Month |
Packing Size:
Packing |
Length |
Width |
Height |
Unit |
Size |
Up;0.68 Down:3.75
|
1.87 |
Up:0.48 Down :0.52 |
M |

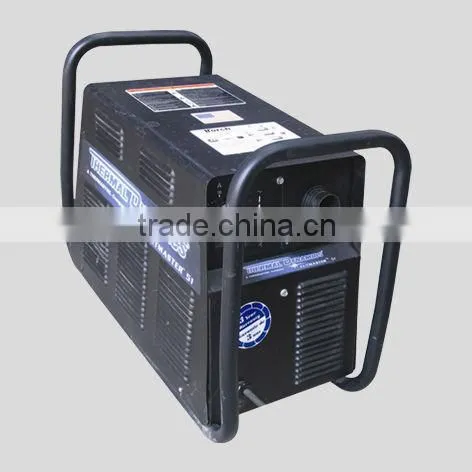

Components Display:
|
|
|
|
|

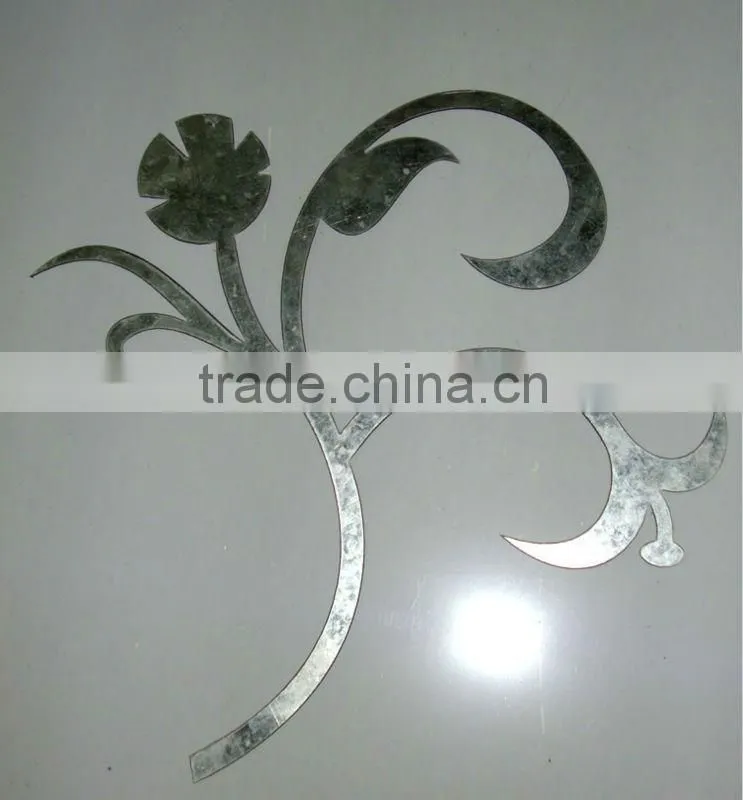

Samples Performed:
Samples | |
|
|
Workshop and Certificate:
Package:

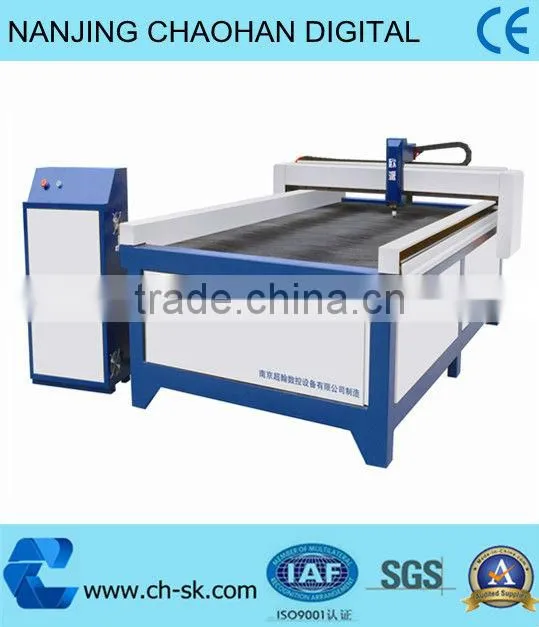

Machine:
