Specifications
OP-1325S CNC plasma cutting machine for steel aluminum stainless cutting with CE CERTIFICATEincision,clear,no dregs
Y axis a
OP-1325S CNC plasma cutting machine for steel aluminum stainless cutting with CE CERTIFICATE Functions and Applications
1.Using unique dual-beam structure design to ensure wide contact surface,low weight and low inertia(other machines in domestic use single beam structure design ,they are with high inertia
2.Gantry type structure,X axis adopts imports double nuts screw drive,high precision,can cut 5mm small hole(other machine in domestic with lather belt or screw drive,poor accuracy.
3.Y axis adopts high precision helical synchronous drive,fast running speed,high precision(other machine in domestic with lather belt or straight teeth drive,large intermittent,poor accuracy,high product scrap rate.)
4.The cable in router adopts highly flexible shielded cable,wiring all adopt cable slot structure,have the high ability of prevent interference,difficult to break
.
Remark:
The machinery size and standard could be produced as customer's requirements.
Working Area |
1300*2500 |
MM |
Material Thickness |
0-15 |
MM |
Cutting Speed |
0-8000 |
MM/Min |
Power |
8500 |
W |
Input Voltage |
3-Phase 380V/50Hz |
V/Hz |
Plasma Current |
40A , 60A, 100A, 120A |
A |
File Transfer |
USB Interface |
|
ARC Mode |
Non-Contact ARC |
|
Net Weight |
3000 |
KGS |
Packing Size
Packing |
Length |
Width |
Height |
Unit |
Size |
Up:0.68 Down:3.75
|
1.87 |
Up:0.48 Down :0.52 |
M |
Service:
Warranty |
One year (Consumption goods are not included). |
Technical Support |
All Life ( If machine is blocked, please contact us immediately and we will arrange for technical engineer to solve freely). |
Trading Terms:
Payment Terms |
T/T , L/C |
Delivery Terms |
FOB Shanghai or Nanjing (Only Domestic). |
Payment Condition |
Payment 70%in advance before shipping to the port (domestic) pay off the balance. |
Packing |
Wooden case with inner plastic proof |
Supply Capacity |
200Sets / Month |
COMPONENTS
| |
|
|
| |
|
|

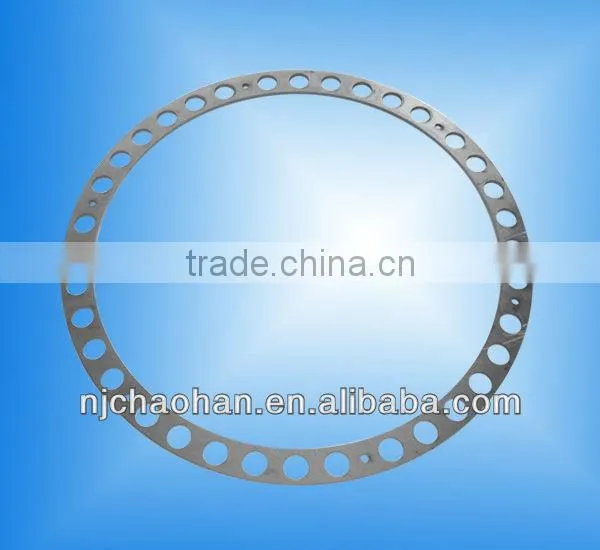

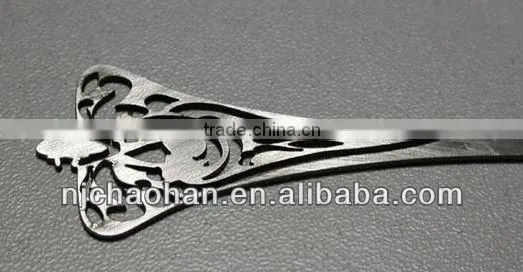

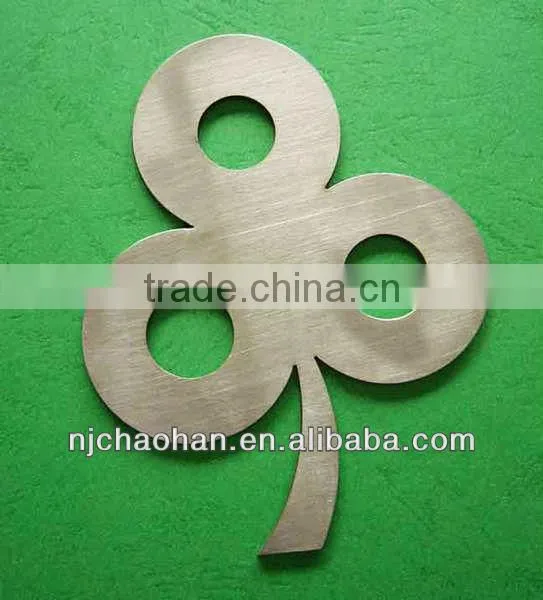

SAMPLES
| |
|
| |
|
MACHINE
FACTORY:
| |
|
CEITIFICATIONS
| |
|
PACKING
