Specifications
Suitable for various fine words,titanium words,metal plate painting words and so on.
NANJING CHAOHAN DIGITAL MACHINERY CO.,LTD

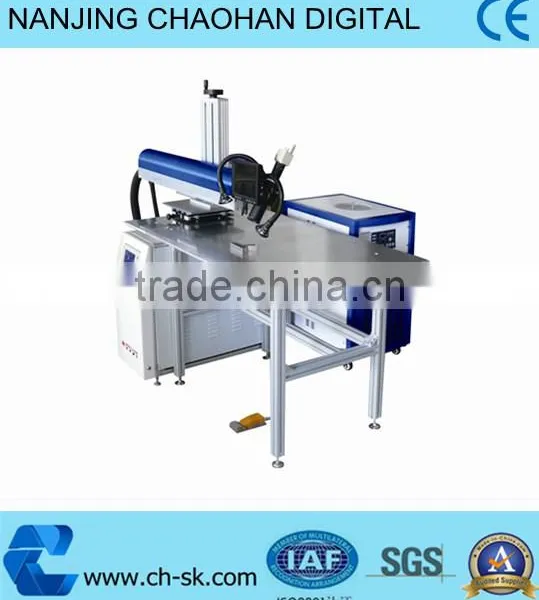

CNC Router Laser Welding Letters Machine
| Model | PH200HZ |
| Mechanical parts | Optical bench extension range 750mm, rotary 90° |
| X, Y, Z working process | 750*1000mm |
| Table bearing limit | ≤ 200KGS |
| Voltage supply | 220V± 10%/50/60Hz or 380V± 10%/50/60Hz |
| Laser model | YAG impulse lamp |
| Spot adjust range | 0.1~0.3MM |
| Spot range | 0.2~3.0MM |
| Lase wave length | 1064MM |
| Pulse width | ≤ 15M/S |
| Max laser power | 200W |
| Pulse frequancy | ≤ 15Hz |
| Laser output focus | 110MM/150MM (Optional) |
| Laser cooling system | Water cooling |
| Observation system | CCD or microscope |
| Up and down process | 300MM |
| Horizontal process | 200MM |
Application:
Suitable for various fine words, Titanium words, Metal plate painting words (stainless steel plate, iron plate, galvanize plate), Advertising and Sign words and different metal sign and LED letter's shell welded.
Feature Instructions:
Red light can automatically rapid check the welding point, observing directly through the CCD or alter microscope.
Accroding to your needs to change the working table to meet the different kinds of letters.
Fast speed processing, pfofessional fixed-focus clamp, rapidly testing the welding point by automatic focus without CCD and microscope.
Little temperature distortion and thermomechanical effect.
It also can be used for the local heat treatment of the metal letters.
Complicated pattern components and small words processing.
Without noise and pollution when processing.
With the superfine locating rod inside, the light-spot doesn't need to adjust its position in the turing points of the characters.
Due to the advanced processing skill, greatly improve the quality of metal letters.
Why choose our product?
1. We are a professional manufacturer specializing in CNC and Laser machines for over 15 years.
2. We have the high quality optical system and long working time laser tube.
3. We use big power air pump, several times of cost than the cheap ones.
4. We apply the Original laser working DSP system, rather than the cheap ones using illegal Copy.
5. We adopt imported high precision linear rail on both X and Y axis; The cheap ones using the low quality domestic linear rail or even round rail!
6. We can send our technicians for local service if you need.
7. We have the timely support team, not like other no after-sales service though they promised.
8. We have many high feedback end customers around the world, mainly in developed markets.
If you are not sure which machine is suitable, please tell me the following questions,
I will recommend the most suitable machine to you.
1) what materials do you want to engrave or cut?
2) what's the max. Size of the materials? (Length*Width*Thickness)
We are looking for overseas AGENT, please Kindly contact us if your are interested in.
Workshop and Certificate:
Pack:
