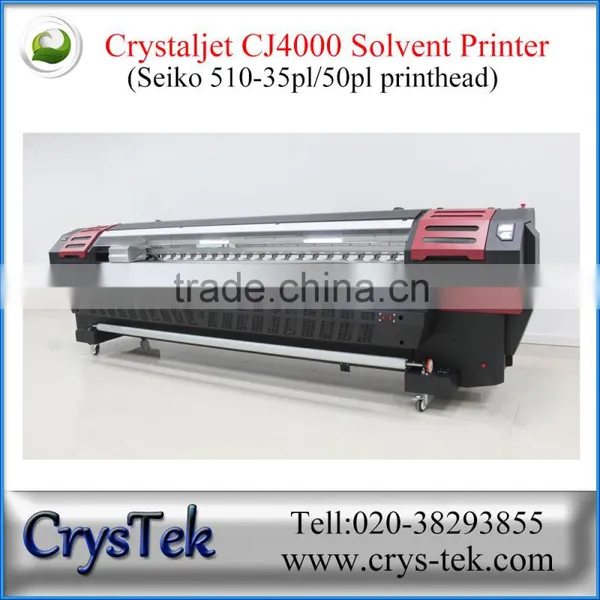

CRYSTEK CRYSTALJET CJ4000 Solvent Machine
US$ 9,000 - 15,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, inkjet printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CRYSTEK Crystaljet 3.20m CJ4000 SPT510/35PL Advertising Large Format Printer Solvent PrinterUS$ 9,000 - 9,300MOQ: 1 Set -
CRYSTEK 3.2m Crystaljet 4000 Series Spt510 35pl/50pl Printhead Solvent PrintersUS$ 8,900 - 9,300MOQ: 1 Set
-
CrysTek F12 Solvent Printer With SPT Sei ko Printheads Banner MachineUS$ 9,000 - 17,000MOQ: 1 Set
-
3.2m Digital Solvent Printer With Spt 510/35pl Printhead High Speed PrintingUS$ 9,000 - 17,000MOQ: 1 Set
-
3.2m Solvent Printer With 12 Pcs SPT 510 Printhead Large Format Print Machine F12US$ 7,000 - 15,000MOQ: 1 Set
Condition
New
Plate Type
Other, inkjet printer
Place of Origin
Guangdong, China
Brand Name
CRYSTEK
Model Number
CRYSTEK CRYSTALJET CJ4000 solvent machine
Usage
Other, Solvent printer
Automatic Grade
Automatic
Voltage
1500W
Gross Power
AC220V 50/60HZ
Dimensions(L*W*H)
4840mm(L)X1000mm(W)X1340mm(H)
Weight
520 KG
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
3.2m large fomat printer Crystaljet CJ4000 with spt 510/35pl pirntead
1:seiko spt510
2:157sqm/hour 720dpi
3.high qulity and competitive price
Product Description
Crystaljet 4000 series performance:
- The safety of DC24V voltage print head heating system allows the printer can be worked on varies environment.
- 400W high power AC servo motor control sysytem ,with long life,high accuracy and quick response.
- This printer provides positive flush ,suction function, with each color ink prime and onekey injecting funtionm.
- With super wide print platform design, the machine can load more heads and easy upgraded.
- Auto head protector keeps the print head in a good condition ,With limit switch protection avoiding printhead mangled
- Automatic media feeding device with memory of each kind of medias, automatically indentify which kind of media is using currently. It is easier to operate such device with the control panel in front of the printer.
- Led lighting system brings more convenience during printing and on print head status suspect.
- The power of medias absorbing can be adjusted, which allows printer adopts varied different kind of medias.
- There are auto white skip, auto step adjustment, bi-direction, auto single file copy, wave and line eclosion technology in the software, makes the printing process more sample and easy.
- Print head temperature can be automatically detected by a device, it will adjust the print head voltage accordingly, which ensures print head in a good performance.
- Pre heating on rear heating board, middle heating board with higher temperature improves ink absorption, precision printing and working efficient
| Model | S4306SPT510_35PL | F4308SPT510_35PL | F4304SPT510_50PL | F4308SPT510_50PL | ||
| Printhead | SPT510_35PL | SPT510_50PL | ||||
| No of Printheads | 6 | 8 | 4 | 8 | ||
| Printhead combination | 1×6 | 2×4 | 1×4 | 2×4 | ||
| Print Width | 3200mm 125.98inch | |||||
| Media Width | 3220mm 126.77inch | |||||
| Print speed | Print mode | speed | speed | speed | speed | |
| High speed | 240X540 3pass 56m²/hr | 240X540 3pass 112m²/hr | 240X540 3pass 65m²/hr | 240X540 3pass 130m²/hr | ||
| Middle speed | 240X720 4pass 41m²/hr | 240X720 4pass 82m²/hr | 240X540 3pass 51m²/hr | 240X540 3pass 102m²/hr | ||
| Standard speed | 360X540 3pass 37m²/hr | 360X540 3pass 74m²/hr | 180X720 4pass 47m²/hr | 180X720 4pass 94m²/hr | ||
| Ink Type | Ink Type | Solvent Ink | ||||
| Color | KCMYLcLm | KCMY | KCMY | KCMY | ||
| Ink supply system | Automatic ink suppy based on auto-detected ink level, failure alarming, empty main tank prompt(optional) | |||||
| Cleaning method | Singel color positive flush(with pressure protection), auto flushing & head moisturizing | |||||
| RIP software | MainTop( Photoprint optional) | |||||
| Interface | USB2.0 | |||||
| Printing assistant system | Auto feeding system | Infrared-detecting, feed & take-up system with memory function | ||||
| Heating system | Three stage heating system(Preheating, Print- heating, post- heating) | |||||
| Head heating | Low-voltage consistant-temperature head-heating(DC24V) | |||||
| Height of the tray | 2~5mm Distance to platform, adjustable | |||||
| Other functions | One key positive-pressure ink injecting,adjustable force of media being absopted to platform, anti-warp media-press,subtank heater(optional),lighting for head cleaning, drying fan, anti-splash board, emergency stop, full waste tank prompt | |||||
| Printer info | Voltage | AC220V 50/60HZ (AC110V 50/60HZ is optional) | ||||
| Power | Printing system 500W Heating system(Post-,1000w, print-,1500w, pre-, 1000w) | |||||
| Working environment | Normal temperature 22~28°C Himidity 40%~70%RH | |||||
| Machine size and weight | 4840mm(L)X1000mm(W)X1340mm(H) 520kg±15kg | |||||
| Shipping size and weight | 5230mm(L)X1040mm(W)X1480mm(H) 740kg±15kg | |||||
Detail Pictures

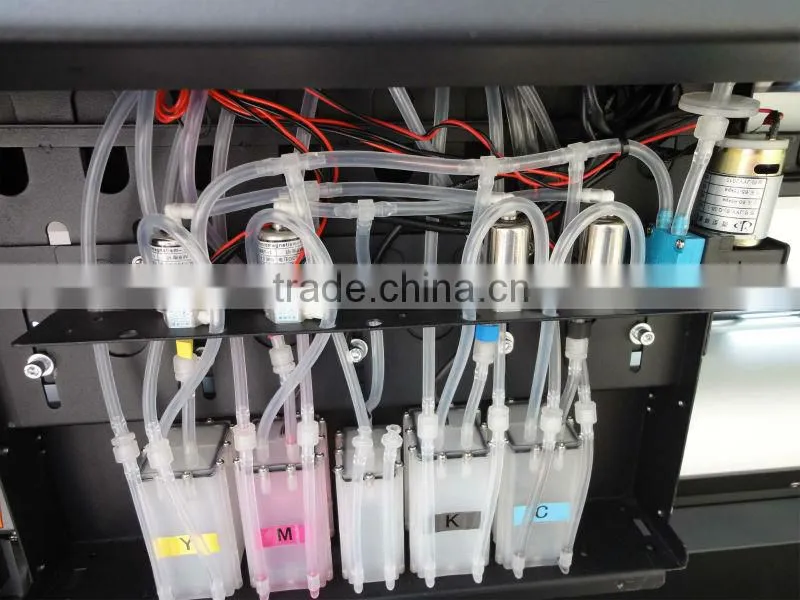

1. The ink sub tank for the printer

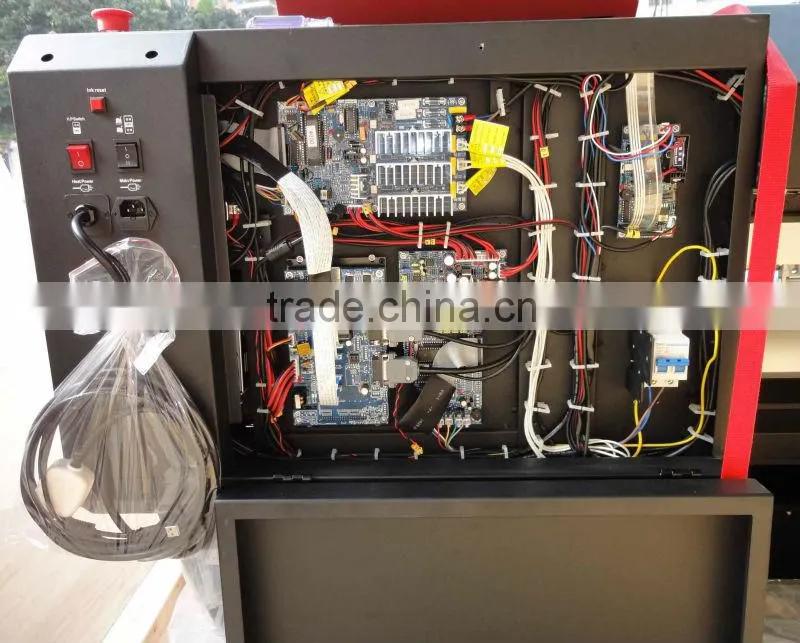

2. The boards for the printer

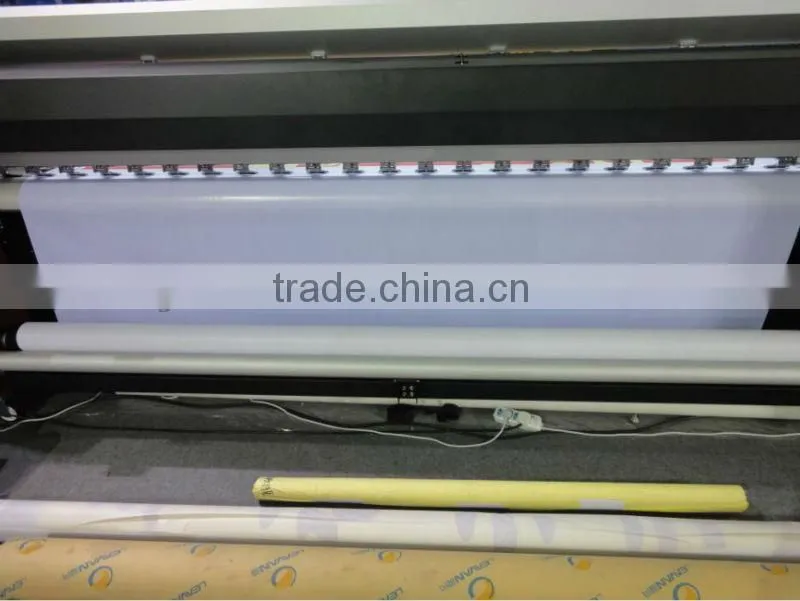

3. The punch roller

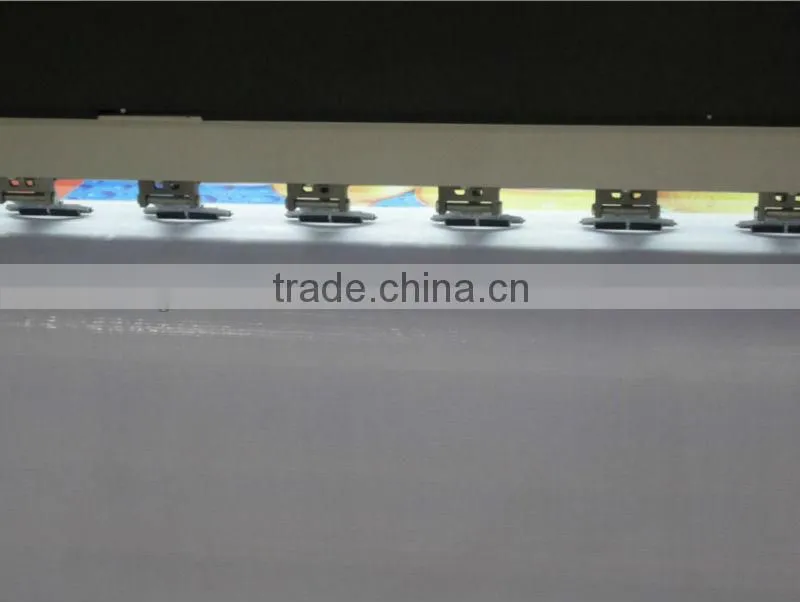

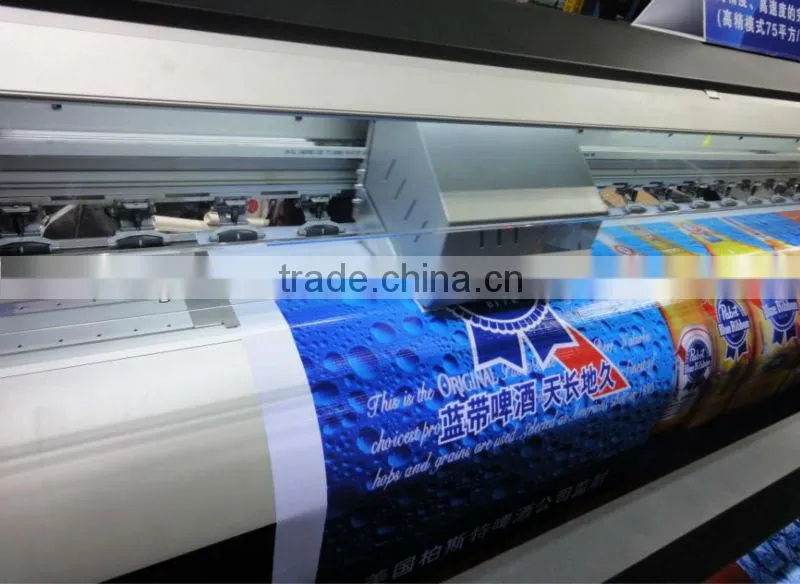

4. The printing of printer

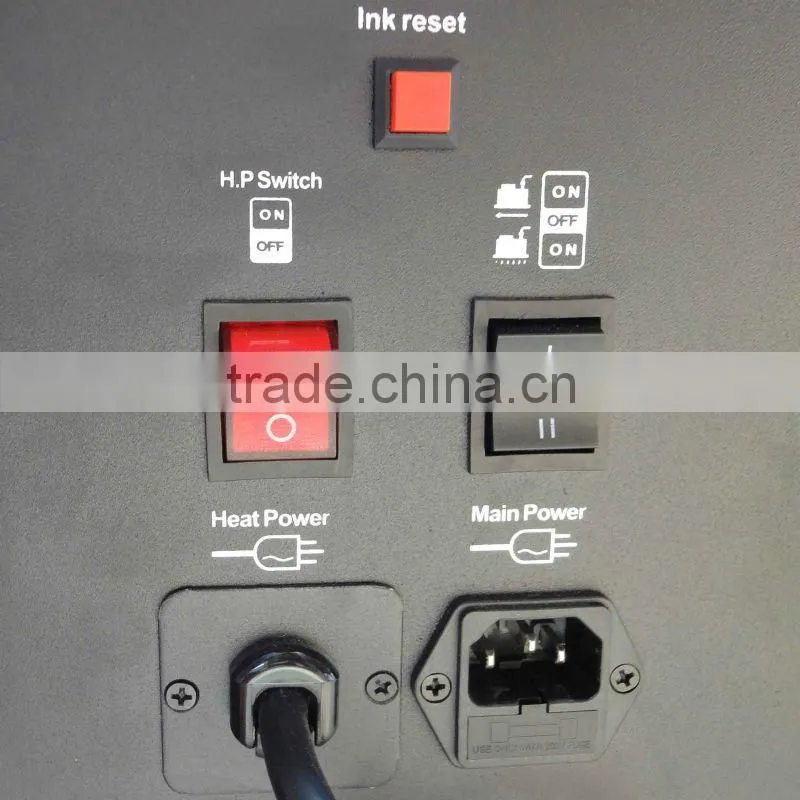

5. The back of printer

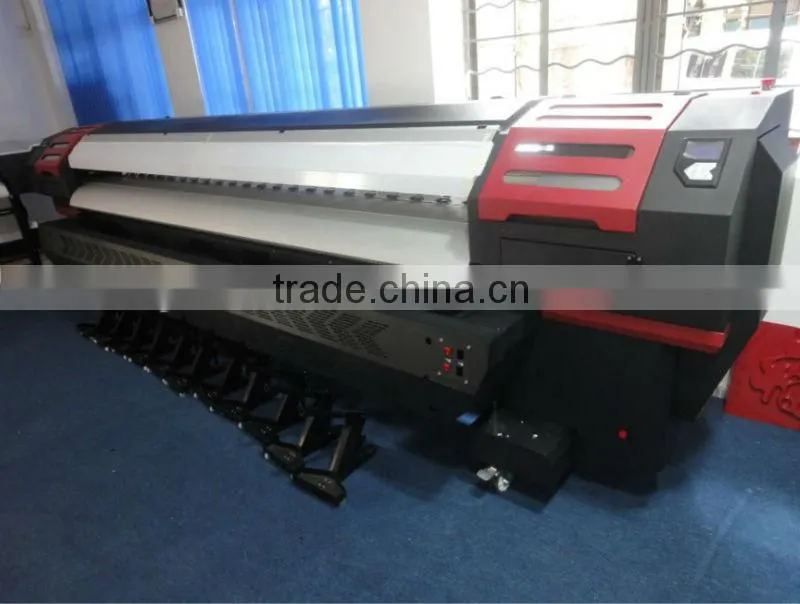

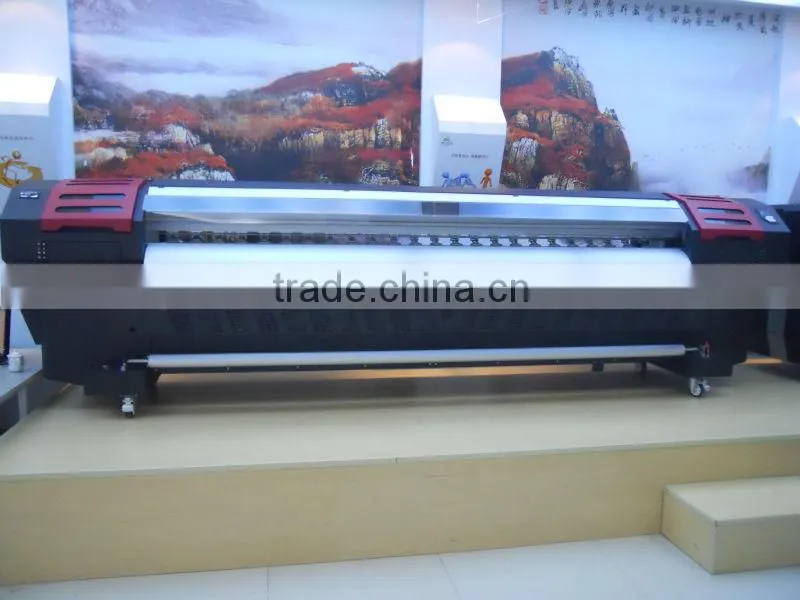

Printer in The office
Warranty
Warranty: One year warranty for machine boards and motors
Packaging & Shipping

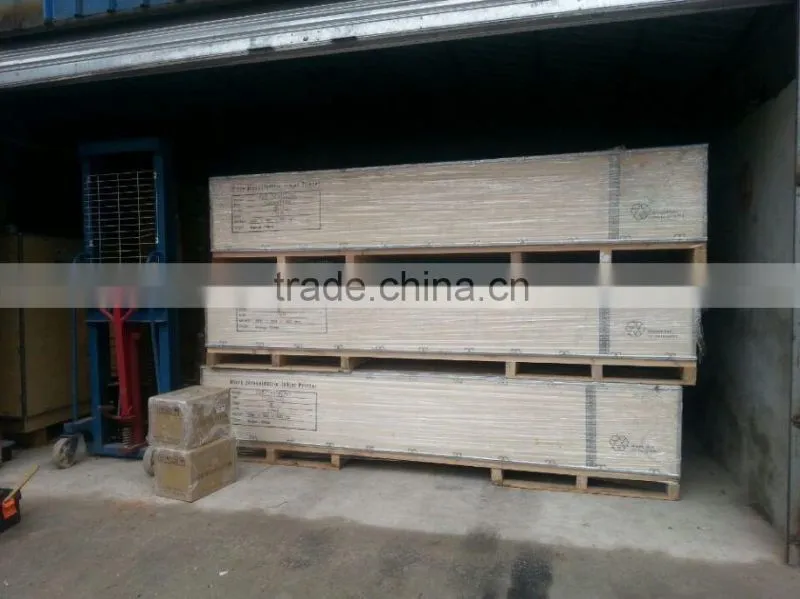

Packing : By Wooden Box
Packing size: 4800*1100*1700mm 800KG ±15kg
Shipping: By Sea. Huangpu, Guangzhou Port
