3.2m Solvent Printer With 12 Pcs SPT 510 Printhead Large Format Print Machine F12

Name: 3.2m Solvent Printer With 12 Pcs SPT 510 Printhead Large Format Print Machine F12
Brand: CrysTek
SKU: 111557601

US$ 7,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, roll to roll printer

Place of Origin:

Guangdong, China

Guangzhou Crystek Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, roll to roll printer

Place of Origin Guangdong, China

Brand Name CrysTek

Model Number F12

Usage Other, digital printer

Automatic Grade Automatic

Voltage 220V

Gross Power 2200W

Dimensions(L*W*H) L4890 x W890x H1700 mm

Weight 950kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

3.2m solvent printer with 12 pcs SPT 510 printhead large format print machine F12

Product Description

1. 3.2m printing size
2. SPT 510 or 1020 printhead
3. 12 pcs printhead,

4. 4 color: C/M/K/Y
5. fast print, 260sqm/h

Specifications

Model	F12

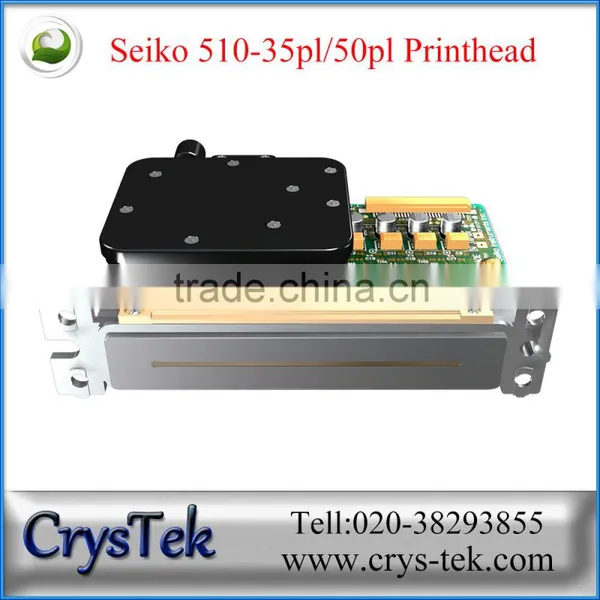

printhead	Spt 510 or Spt 1020 Printhead
Number of Printhead	8/12 pcs Heads
Max Print Width	3200mm(126” )
Printing Resolution	(8 pcs 510 heads) 2Pass	160m² /hr
	(12 pcs 510 heads) 2Pass	230m² /hr
	(8 pcs 1020 heads) 2Pass	190m² /hr
	(12 pcs 1020 heads) 2Pass	260m² /hr
Ink	Type	solvent ink
	Color	4 colors CMKY
	Capacity	5000ml
	Type	flex banner, vinyl sheet, one way sion, indoor light box cloth, flective material
Print Height	1-3mm above media adjustable
Heating System	pre-heating platen-heating post-heating
Media adsorption system	Several phase of intelligent air draft, and intensity adjustable
Auto feeding Media System	Equipped (Max Media Weight 40kg)
Auto Printhead Cleaning System	Anti-clogged Flash Function & Moisturing System
Clamp	Equipped
Auto paper collecting system	Selectable
Print Interface	Hi-USB2.0/3.0
RIP software	MaintopPhotoprintWasatch
Input Power	AC220V, 50Hz/60Hz , min: 1500W, max: 6000w
Machine Dimension	L4890 x W890x H1700 mm 750KG ±15kg
Pachage Dimension	L490 x W1000 x H1750 mm 9500KG ±15kg
