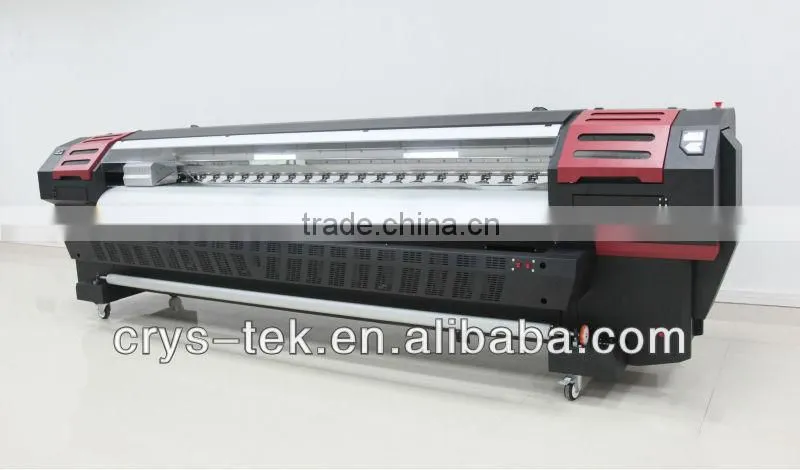

3.2m large format solvent printer crystaljet CJ4000 / CJ6000
4 / 6 / 8 Seiko SPT510 print head
♣ The safety of DC24V voltage print head heating system allows the printer can be worked on varies environment.
♣ 400W high power AC servo motor control system ,with long life, high accuracy and quick response.
♣ With super wide print platform design, the machine can load more heads and easy upgraded.
♣ Auto head protector keeps the print head in a good condition ,With limit switch protection avoiding printhead mangled.
♣ Print head temperature can be automatically detected by a device, it will adjust the print head voltage accordingly,
which ensures print head in a good performance.
♣ Pre heating on rear heating board, middle heating board with higher temperature improves ink absorption,
precision printing and working efficiency.
| Crystaljet CJ4000 printer | ||||||
| Model | S4306SPT510_35PL | F4308SPT510_35PL | F4304SPT510_50PL | F4308SPT510_50PL | ||
| Printhead | SPT510_35PL | SPT510_50PL | ||||
| No of Printheads | 6 | 8 | 4 | 8 | ||
| Printhead combination | 1×6 | 2×4 | 1×4 | 2×4 | ||
| Print Width | 3200mm 125.98inch | |||||
| Media Width | 3220mm 126.77inch | |||||
| Print speed | Print mode | speed | speed | speed | speed | |
| High speed | 240X540 3pass 56m²/hr | 240X540 3pass 112m²/hr | 240X540 3pass 65m²/hr | 240X540 3pass 130m²/hr | ||
| Middle speed | 240X720 4pass 41m²/hr | 240X720 4pass 82m²/hr | 240X540 3pass 51m²/hr | 240X540 3pass 102m²/hr | ||
| Standard speed | 360X540 3pass 37m²/hr | 360X540 3pass 74m²/hr | 180X720 4pass 47m²/hr | 180X720 4pass 94m²/hr | ||
| Ink Type | Ink Type | Solvent Ink | ||||
| Color | KCMYLcLm | KCMY | KCMY | KCMY | ||
| Ink supply system | Automatic ink suppy based on auto-detected ink level, failure alarming, empty main tank prompt(optional) | |||||
| Cleaning method | Singel color positive flush(with pressure protection), auto flushing & head moisturizing | |||||
| Media type | Vinyl, Window Film, Polyester,Flex, Back-lit Film, etc | |||||
| RIP software | MainTop( Photoprint optional) | |||||
| Interface | USB2.0 | |||||
| Printing assistant system | Auto feeding system | Infrared-detecting, feed & take-up system with memory function | ||||
| Heating system | Three stage heating system(Preheating, Print- heating, post- heating) | |||||
| Head heating | Low-voltage consistant-temperature head-heating(DC24V) | |||||
| Height of the tray | 2~5mm Distance to platform, adjustable | |||||
| Other functions | One key positive-pressure ink injecting,adjustable force of media being absopted to platform, anti-warp media-press,subtank heater(optional),lighting for head cleaning, drying fan, anti-splash board, emergency stop, full waste tank prompt | |||||
| Printer info | Voltage | AC220V 50/60HZ (AC110V 50/60HZ is optional) | ||||
| Power | Printing system 500W Heating system(Post-,1000w, print-,1500w, pre-, 1000w) | |||||
| Working environment | Normal temperature 22~28°C Himidity 40%~70%RH | |||||
| Machine size and weight | 4840mm(L)X1000mm(W)X1340mm(H) 520kg±15kg | |||||
| Shipping size and weight | 5230mm(L)X1040mm(W)X1480mm(H) 740kg±15kg | |||||

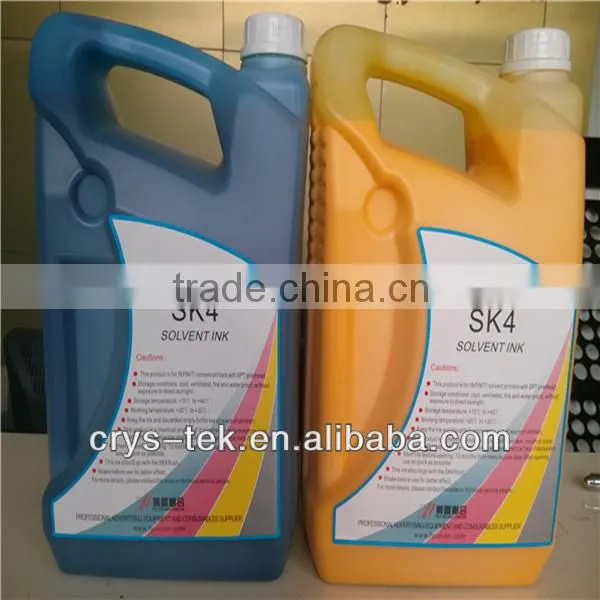

SK4 solvent ink
