6mm Hydraulic Guillotine Sheet Metal Shearing Machine
- 200 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
- 4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
- Automatic cnc plasma cutting machine gate cnc router 120a/200a
- Fully automatic 20mm plasma cutting machine custom size high quality
- 200mm pipe table axe for plasma metal cutting machine spare parts in weifang
- China gantry cnc plasma and oxy cutting machine dust removal equipment
Product Details
Condition: | New | Place of Origin: | Anhui, China | Brand Name: | LVD CNC |
Model Number: | QC11Y/K | Voltage: | 220V/380V | Rated Power: | 11kw |
Dimension(L*W*H): | 6530*2075*2520mm | Weight: | 14000kg | Certification: | ISO9001 |
Warranty: | 5 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
6mm Hydraulic Guillotine Sheet Metal Shearing Machine
Performance and Features of QC11K/Y Hydraulic Guillotine Shearing Machine
1. The second generation of QC11K Hydraulic guillotine cutting . |
2. Rack, blade frame is entire welded, vibration to eliminate inner stress, to maintain good accuracy. |
3. Use advanced integrate hydraulic system and good reliability of our QC11K Hydraulic guillotine cutting . |
4. Use three-point support rolling guide to eliminate the support gap, improve cut quality. |
5. The clearance between the blades adjusted by hand wheel rapidly, accurancy and convenient. |
6. Rectangular blade. four cutting edges, and loong service life for our QC11K Hydraulic guillotine cutting. |
7. Adjustable shearing angle to reduce deformation of the sheet. |
8. The upper blade frame use introversion structure, easy for blanking to improve the accuracy of production. |
9. With the sub-shear function, motorized backgauge, digital display. |
Main Accessoies | Main Outsourcing Parts |
CNC System | Dutch Delem310 |
Hydraulic System | Germany Bosch/Hoerbiger |
Servo System | China EDBO5 |
Oil Sylinder | Jiangdu Yong Nut |
Seals; Before the Carrier Aircraft | United States Parker; China |
Main Electrical Components | Germany Siemens |
Card of Joint Body | Germany EMB and United States Parker |
Ball Screw; Linear Guider | Taiwan ABBA; Germony Lux LeDeXing |
Optional Configuration
CNC System | DAC310 servo control system | 1. Bright LCD display. 275*48 pixels 2. Backgauge, blade clearance, shearing stroke control 3. Simutaneous display of the real position and the program 4. Value of backgauge 5. Shear counting 6. 100 procedures 7. Panel type installation 8. Servo control/variable frequency speed adjistment control/double-speed AC motor control |
DAC360 servo control system | 1. Panel based housing 2. Bright LCD screen 3. Backgauge control 4. Retract function 5. Cutting angle control 6. Cutting gap control 7. Stroke length limitation 8. Force control 9. Manual movement of axes | |
Feeding Device | CNC | |
Care Feeding Device | Pneumatic care feeding | |
Safety Device | Photoelectric protection, laser protection | |
CNC System Installation | Rotatable suspension arm |
Hydraulic system: |
1.Adop integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box. |
2.Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board. |
3.All seals in cylinder is imported, the most famous brand, good quality and high performance. |
4.Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen dir |
Blade adjust and cutting precision |
1.Adopt handwheel to rapidly and accurately adjust the blade clearance, shearing in sections, shadow-line cutting. |
2.The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high chrome blades D2 quality. |
3.Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal. |
4.System uses a bladder-type hydraulic accumulator as an auxiliary energy, absorb the pressure shock, the machine is running smooth, low noise. |
Main Technical Parameters for QC11K/Y Hydraulic guillotine cutting | |
Model | 6*6000 |
Cutting Thickness(mm) | 6 |
Cutting Width(mm) | 6000 |
Stroke Times(min-1) | 25 |
Backgauge Range(mm) | 800 |
Cutting Angle9(°) | 0.5-2.5 |
Throat Depth(mm) | 125 |
Motor Power(KW) | 11 |
Dimension(mm)(L*W*H) | 6530*2075*2520 |
Detailed pictures of QC11K/Y Hydraulic Guillotine Shearing Machine
1.Front view of QC11K/Y Hydraulic Guillotine Shearing Machine
2.Side view of QC11K/Y Hydraulic Guillotine Shearing Machine
3. Back view of QC11K/Y Hydraulic Guillotine Shearing Machine
4.DAC310 control system of QC11K/Y Hydraulic Guillotine Shearing Machine
4.Electrical Cabinet of QC11K/Y Hydraulic Guillotine Shearing Machine
Electrical components in line with international standards, safe and reliable, strong anti-jamming capability, electric control cabinet cooling function. |

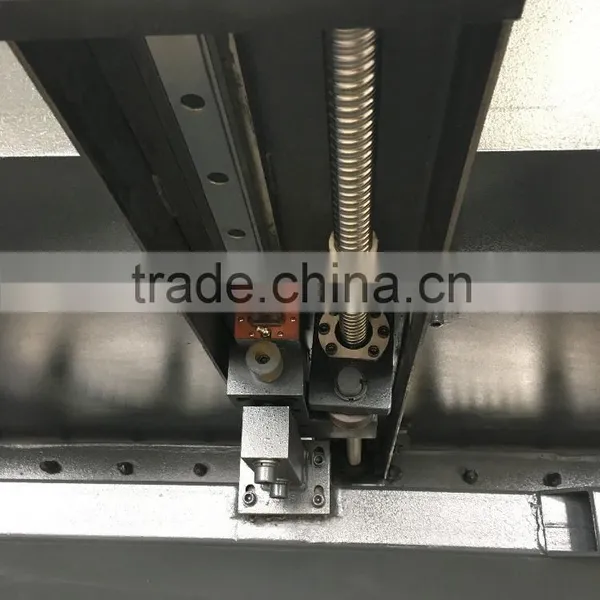

5.The pictures of other parts
Technical parameters of QC11K/Y Hydraulic Guillotine Shearing Machine
Size | 6530mm(L) * 2075mm (W) * 2520mm (D) |
Weight | 14 ton |
Packaging Details | 1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time. 2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool. 3.The outmost is wooden case with fixed formwork. 4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport. |
