QC11K/Y 6mm 6000mm Hydraulic Guillotine Sheet Metal Shearing Machine
- 200 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
-
1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
-
4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
-
Automatic cnc plasma cutting machine gate cnc router 120a/200a
-
Fully automatic 20mm plasma cutting machine custom size high quality
-
200mm pipe table axe for plasma metal cutting machine spare parts in weifang
-
China gantry cnc plasma and oxy cutting machine dust removal equipment
Product Details
| Condition: | New | Place of Origin: | Anhui, China | Brand Name: | LVD CNC |
| Model Number: | QC11Y/K | Voltage: | 220V/380V | Rated Power: | 11kw |
| Dimension(L*W*H): | 6530*2075*2520mm | Weight: | 14000kg | Certification: | ISO9001 |
| Warranty: | 5 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QC11K/Y 6mm 6000mm Hydraulic Guillotine Sheet Metal Shearing Machine
Performance and Features of QC11K/Y Hydraulic Guillotine Shearing Machine
1. The second generation of QC11K Hydraulic guillotine cutting . |
| 2. Rack, blade frame is entire welded, vibration to eliminate inner stress, to maintain good accuracy. |
| 3. Use advanced integrate hydraulic system and good reliability of our QC11K Hydraulic guillotine cutting . |
| 4. Use three-point support rolling guide to eliminate the support gap, improve cut quality. |
| 5. The clearance between the blades adjusted by hand wheel rapidly, accurancy and convenient. |
| 6. Rectangular blade. four cutting edges, and loong service life for our QC11K Hydraulic guillotine cutting. |
| 7. Adjustable shearing angle to reduce deformation of the sheet. |
| 8. The upper blade frame use introversion structure, easy for blanking to improve the accuracy of production. |
| 9. With the sub-shear function, motorized backgauge, digital display. |
| Main Accessoies | Main Outsourcing Parts |
| CNC System | Dutch Delem310 |
| Hydraulic System | Germany Bosch/Hoerbiger |
| Servo System | China EDBO5 |
| Oil Sylinder | Jiangdu Yong Nut |
| Seals; Before the Carrier Aircraft | United States Parker; China |
| Main Electrical Components | Germany Siemens |
| Card of Joint Body | Germany EMB and United States Parker |
| Ball Screw; Linear Guider | Taiwan ABBA; Germony Lux LeDeXing |
Optional Configuration
| CNC System | DAC310 servo control system | 1. Bright LCD display. 275*48 pixels 2. Backgauge, blade clearance, shearing stroke control 3. Simutaneous display of the real position and the program 4. Value of backgauge 5. Shear counting 6. 100 procedures 7. Panel type installation 8. Servo control/variable frequency speed adjistment control/double-speed AC motor control |
| DAC360 servo control system | 1. Panel based housing 2. Bright LCD screen 3. Backgauge control 4. Retract function 5. Cutting angle control 6. Cutting gap control 7. Stroke length limitation 8. Force control 9. Manual movement of axes | |
| Feeding Device | CNC | |
| Care Feeding Device | Pneumatic care feeding | |
| Safety Device | Photoelectric protection, laser protection | |
| CNC System Installation | Rotatable suspension arm | |
| Hydraulic system: |
1.Adop integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box. |
2.Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board. |
3.All seals in cylinder is imported, the most famous brand, good quality and high performance. |
4.Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen dir |
| Blade adjust and cutting precision |
1.Adopt handwheel to rapidly and accurately adjust the blade clearance, shearing in sections, shadow-line cutting. |
2.The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high chrome blades D2 quality. |
3.Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal. |
4.System uses a bladder-type hydraulic accumulator as an auxiliary energy, absorb the pressure shock, the machine is running smooth, low noise. |
| Main Technical Parameters for QC11K/Y Hydraulic guillotine cutting | |
| Model | 6*6000 |
| Cutting Thickness(mm) | 6 |
| Cutting Width(mm) | 6000 |
| Stroke Times(min-1) | 25 |
| Backgauge Range(mm) | 800 |
| Cutting Angle9(°) | 0.5-2.5 |
| Throat Depth(mm) | 125 |
| Motor Power(KW) | 11 |
| Dimension(mm)(L*W*H) | 6530*2075*2520 |
Detailed pictures of QC11K/Y Hydraulic Guillotine Shearing Machine

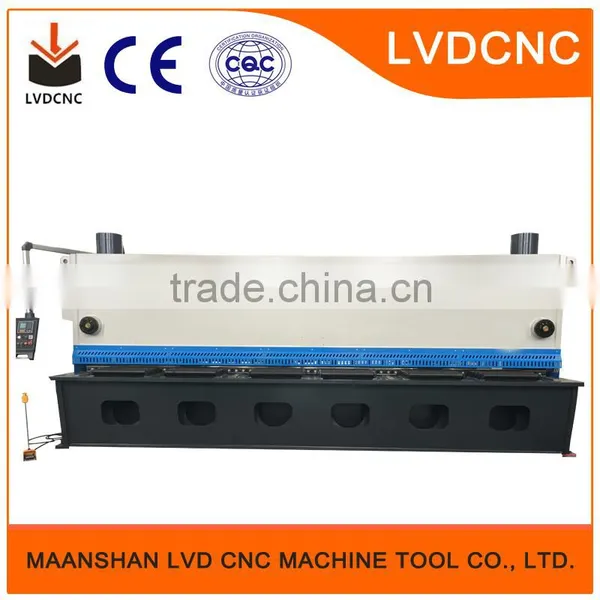

1.Front view of QC11K/Y Hydraulic Guillotine Shearing Machine

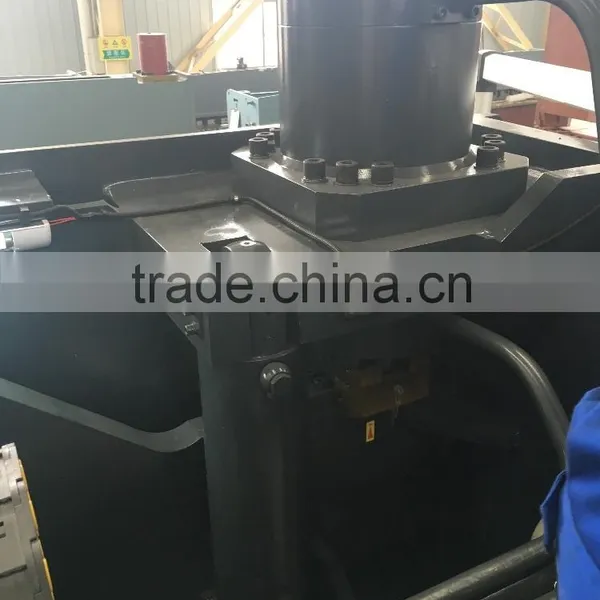

2.Side view of QC11K/Y Hydraulic Guillotine Shearing Machine

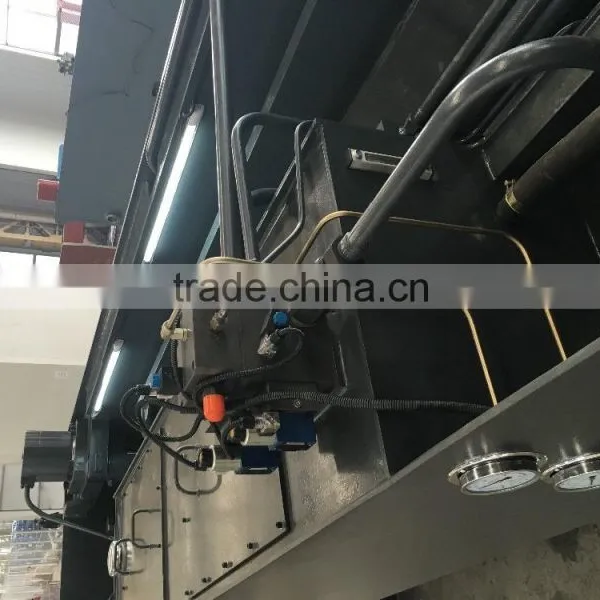

3. Back view of QC11K/Y Hydraulic Guillotine Shearing Machine
4.DAC310 control system of QC11K/Y Hydraulic Guillotine Shearing Machine
4.Electrical Cabinet of QC11K/Y Hydraulic Guillotine Shearing Machine
| Electrical components in line with international standards, safe and reliable, strong anti-jamming capability, electric control cabinet cooling function. |

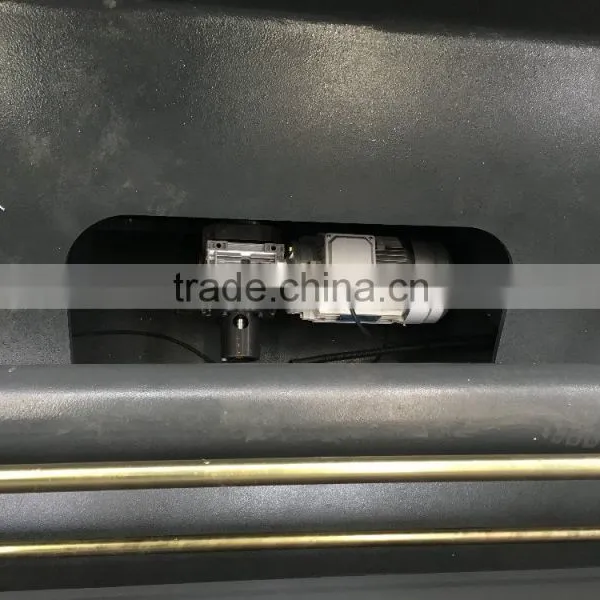

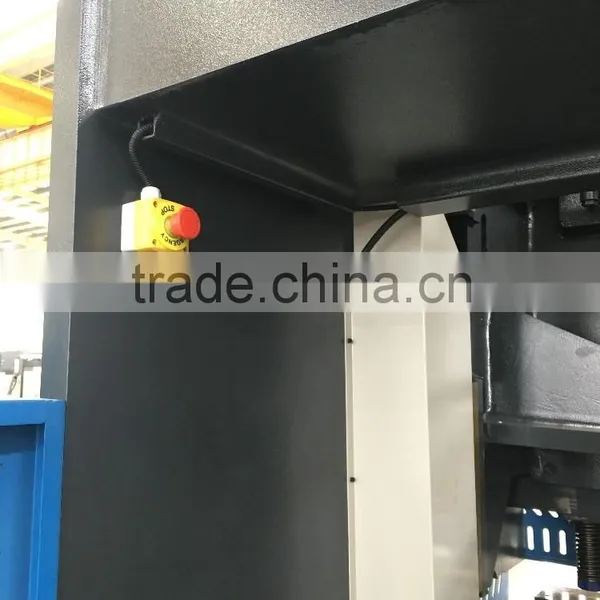

5.The pictures of other parts
Technical parameters of QC11K/Y Hydraulic Guillotine Shearing Machine
| Size | 6530mm(L) * 2075mm (W) * 2520mm (D) |
| Weight | 14 ton |
| Packaging Details | 1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time. 2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool. 3.The outmost is wooden case with fixed formwork. 4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport. |
Introduction:
LVD CNC is the manufacturer for more than 16 years, equiped with most advanced Production Machines. Our machines have been sold to more than 70 countries, and all of our customers are very satisfied with our quality and after-sale service. As an experienced company in the engineering field, LVD CNC would like to develop itself as a much more quality-conscious, professional machinery building company.
Our Advantages:
- More than 5 years experience of machines
- High reputation around the world
- Overseas service and technology support
- Competitive price with better quality, even the best
- Strict test processing before shipment
- Stated owned enterprises, without business risk
Machines we produce as follows:
- Press Brake Machine
- Shearing Machine
- Punching Machine/Power Press
- Plasma Cutting Machine
- Tube Bending Machine
- Manual Bending Machine
- Ironworker
- Hydraulic Press Machine
- Moulds and Machinary Blades
- Others
•Technical Service |
Our techinicians are available to give you technical helping or offer training of how to use our machines. |
| As well, you can also send your own technician to our company to learn how to operate machines. |
•Quality Guarantee |
We provide 5 years warranty. We sign the agreement with detailed technical data. |
•Long term cooperation |
If we keep a long term cooperation, there will be more discout. |
•Problem solving |
We will provide solutions in one day. |
We will solve complaints in two days. |
1.Q:Are you a factory or trading company?
A: We are a factory for cnc press brake machine.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Maanshan(next to Shanghai), Anhui Province,China.You can fly to Shanghai airport directly. All our clients, from home or abroad, are warmly welcomed to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO,BV authentication.
4.How about your service?
A:We provide 5 years warranty. Besides, we will provide solutions in one day and solve complaints in two days.
5.Trade Terms:
♦Payment: T/T,Western Union,MoneyGram,PayPal; 30% deposits;70% balance before deliverying.
♦Delivery Time: 20-90 days
♦MOQ: 1 pcs
6.Why choose us?
♦We are China Leading cnc press brake machine manufacturer.
♦Alibaba assessed 6 years Gold Supplier for cnc press brake machine.
♦Inspected by the Inspection Institution of Bureau Veritas Certification.
♦100% QC inspection Before Shipment.
♦Best Quality & Best Service with Competitive price.
Sincerely invite you to visit our factory!
If you have any problems or advice, just contact us!
We’re glad to be of your service!
Tel: 86-555-6766881 Mobile: 86 138-555-15221
Fax: 86-555-6766881 E-mail: blue(@)
Skype: lvdcnc.blue WhatsApp: 13855515221
Website: /
Alibaba B2B: http://lvdcnc.en.china.cn
Address: Zhenxi industrial park 12,Bowang,Ma Anshan city,
Anhui Province,China
JUST Click the Pictures to see more Products!!
