Help CenterDouble Horsehead Oil Pumping Unit Pump Jack
Related Products
-
API Crank Balance Pumping Unit for Oil ProductionUS$ 50000.00 - 50000.00MOQ: 1 Unit -
Intelligent Long-stroke Tower Pumping UnitUS$ 50000.00 - 50000.00MOQ: 1 Unit
-
CYJ Pumping Unit Used in Oil LandNegotiableMOQ: 1 Set
-
API B Series Oilland Pump JackNegotiableMOQ: 1 Set
-
China Manufacturers API C Series Oilland Pump JackNegotiableMOQ: 1 Set
Double horse head type beam pumping unit is evolved on the basis of conventional beam pumping unit on, it will not only maintain the simple structure of a conventional machine, reliable operation, easy maintenance, etc., but also has a smooth operation additional dynamic load, low stroke length, energy consumption, integrated high efficiency, is an ideal surface production equipment.
Double horse head type beam pumping unit, suitable for mining, low viscosity oil and high water content of crude oil. For normal operating conditions can not be mined horizontal wells, deviated and viscous crude oil wells, allowing appropriate to increase the speed reducer and motor specifications, reduce red times
Restructured from SINOPEC in 1997, Puyang Zhongshi Group Co., Ltd has 18 years manufacturing experience of petroleum machinery products till now, we have competitive prices of our main products of Pumping Units,Subsurface sucker rod pump,wellhead,cementing accessories,etc.
We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001,and HSE certificates.
With 10 years exporting experience,we have exported to more than 30 countries such as USA,Middle East,Southeast Asia,Russia,etc.

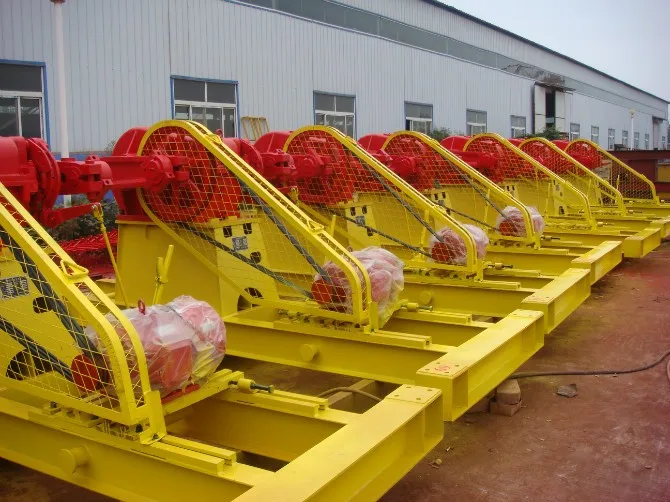

Reducer and base
We have large yard and workshop to
stock hundreds of reducers waiting to be assembled.
We can paint any colar based on customer's need.
Counter Weight
We produce counter balance in our
casting workshop,color ad shape can
be trimmed.
Allan among pump parts
Same parts with same shape are strapped via steel bar to reduce its space.
Allan before open top container
To load more pumpers in to container,we usually use open top container for easy loading.
Reinforce unassembled pumper
We use steel bar to fasten strapped pump parts to container in case they move during transport.
