for industry, boat, crane application electric winch

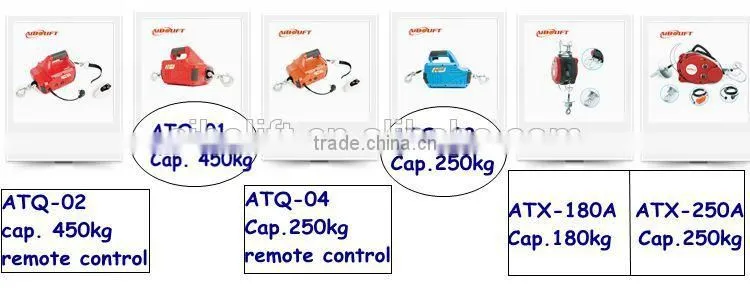

| Item No. | Capacity |
Lifting H. |
Wire rope
dia
|
Speed |
Power |
Voltage |
Overall dim. | N.W. |
ATQ-01 |
450kg |
4.6M |
5.8mm |
5m/min |
1200w |
220v |
50*21*21cm | 7kg |
|
ATQ-02
remote control
|
450kg |
4.6M |
5.8mm |
5m/min |
1200w |
220v |
same as abv. |
7kg |
ATQ-03 |
250kg |
8M |
4.8mm |
5m/min |
1200w |
220v |
same as abv. |
7kg |
|
ATQ-04
remote control
|
250kg |
8M |
4.8mm |
5m/min | 1200w |
220v |
same as abv. |
7kg |
MINI hoist |
180-250 |
15-30M |
5mm |
12m/min |
1200/1300w |
220v |
60*23*24cm |
18.5kg |

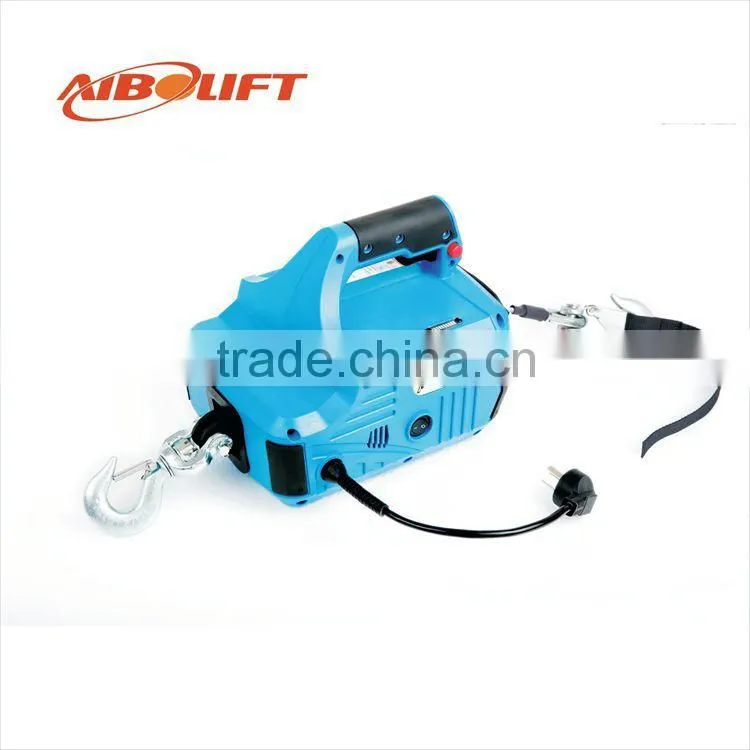

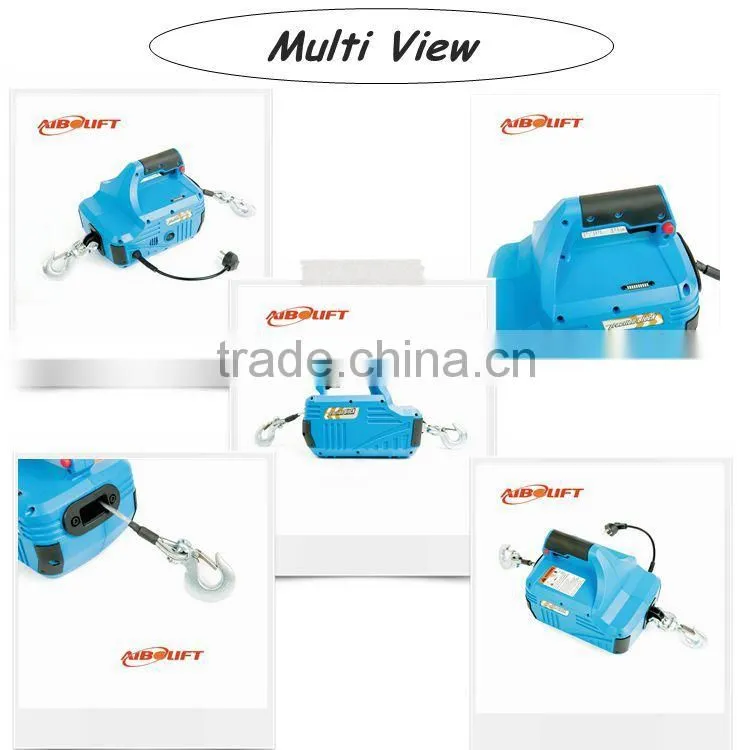

It's a portable electric winch(manual one, we also have others with remote control) with strong wire rope. They can lift, pull and place loads across distances without extra efforts. The galvanized wire rope winches are suitable for use in various applications and are the ideal solution for professionals.
The powerful, lightweight, easy- to-use handheld electric tool that is equipped with a strong motor that allows you to move heavy items into place with minimum effort. It will help get the job done easier, faster, and with less manual labor.
1.Model Number: |
ATQ-03 |
2.Power Source: |
Electric 1200W |
3.Voltage: |
AC 100-240V/50/60HZ |
4.Lifting Height: |
8M |
5.Wire rope dia: |
4.8mm |
6.Speed: |
5m/min full speed Variable speed available for multi-applications. |
7.Load Capacity: |
250KGS/550lbs |
8. Net weight: |
7kg |
9.Motor: |
Series motor |
10. Protection: |
Overload protection and overheat protection. |
11.Certification: |
CE and ISO |
12.Color: |
Blue,Yellow,Red or According to Customer Request |
13.Logo: |
AiboLift |
14.OEM: |
Welcome |
15.MOQ: |
108sets, small trial order is welcome |
16.Production Capacity: |
5000sets/Month |
17.Sample Lead time: |
5days for regular item |

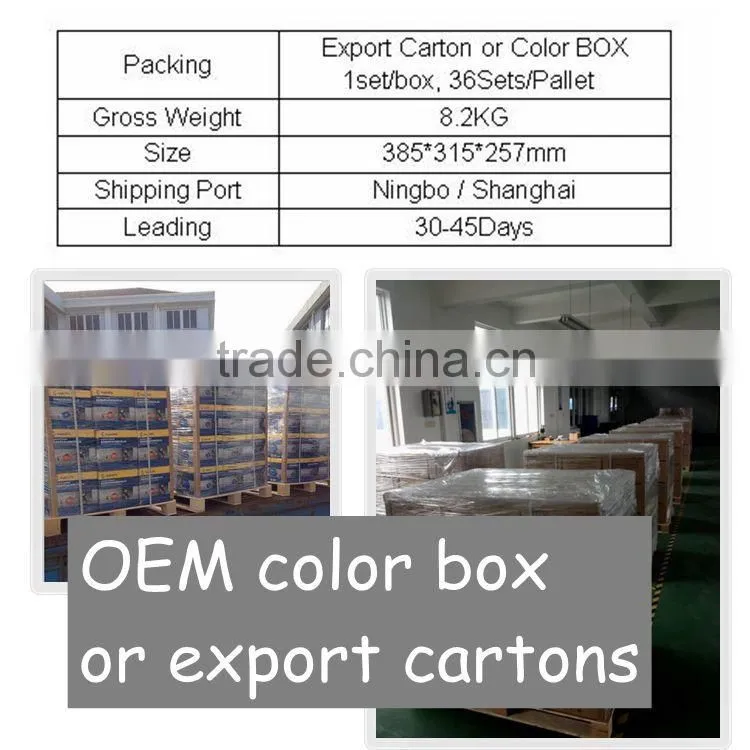

18.Packing: |
Color Box or Standard Export Cartons |
19.Delivery: |
By express courier / by air / by sea |
20.Payment: |
T/T |
Features:
— Mini electric winch providing precision power for all pulling, hauling and drag away jobs.
— 450KGS pull rating powered via a 100V-240V AC.
— 5.8mm/4.6m Aircraft grade galvanizedwire rope.

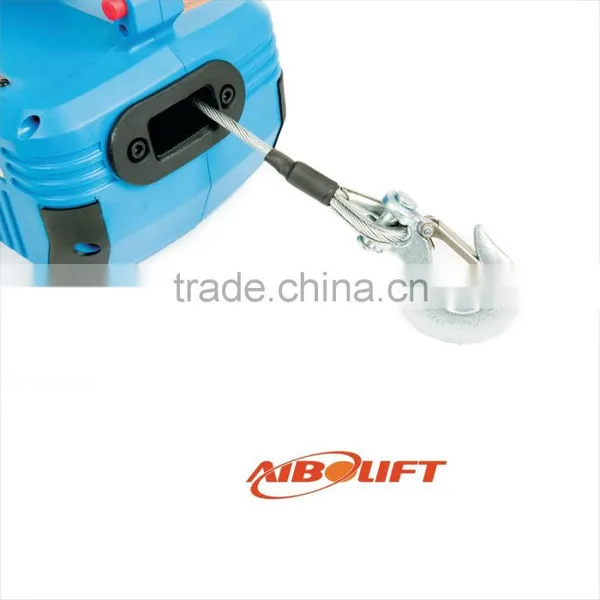

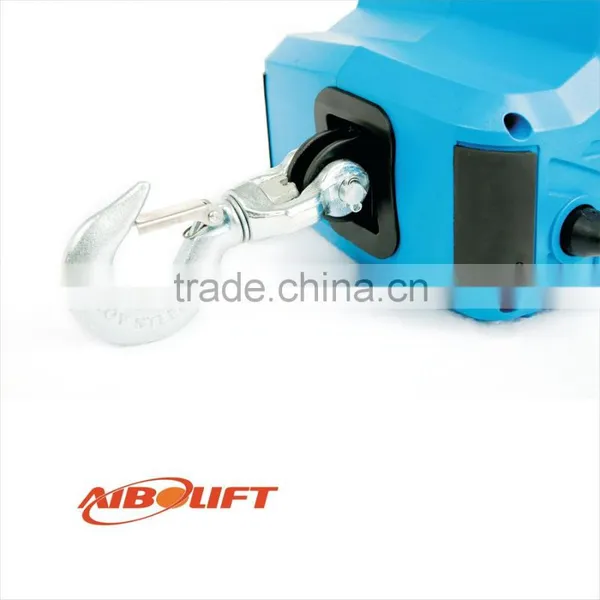

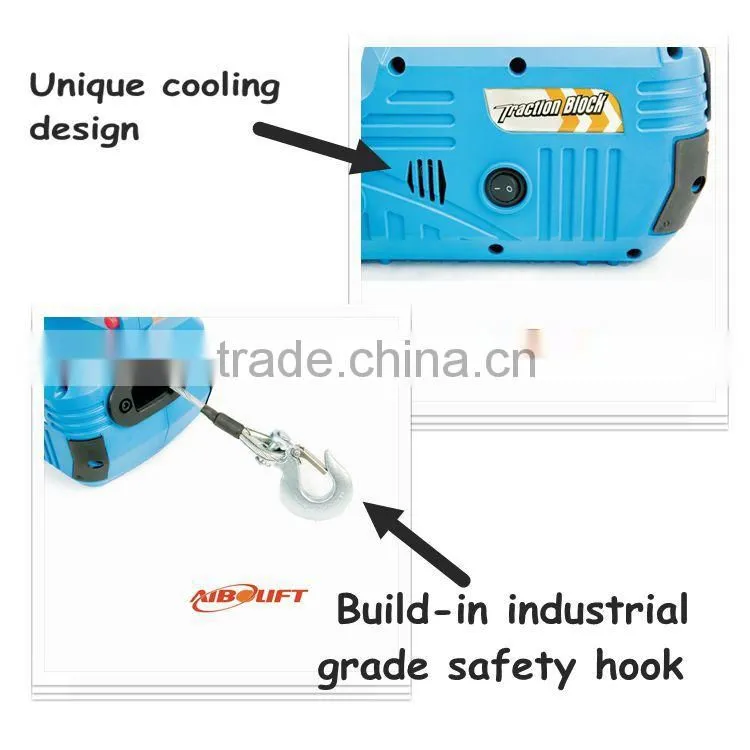

— Build-in industrial grade safety hook and hawse fairlead at wire rope end of tool and
swiveling anchor hook at its base.
— Touch the switch by manual button, variable speed for multi-applications.

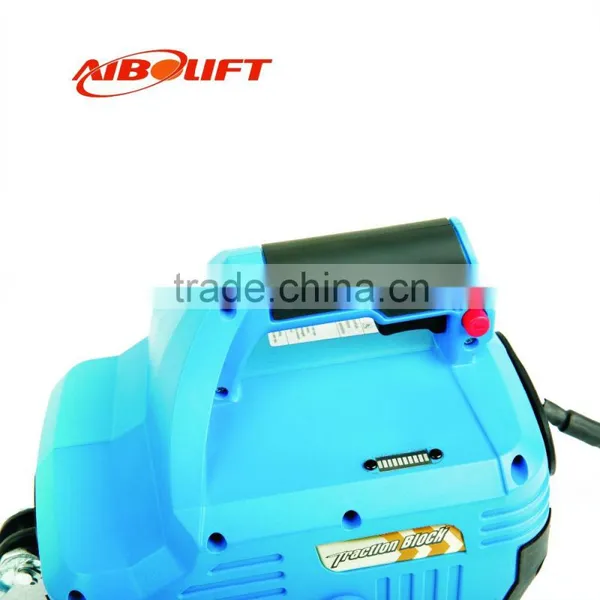

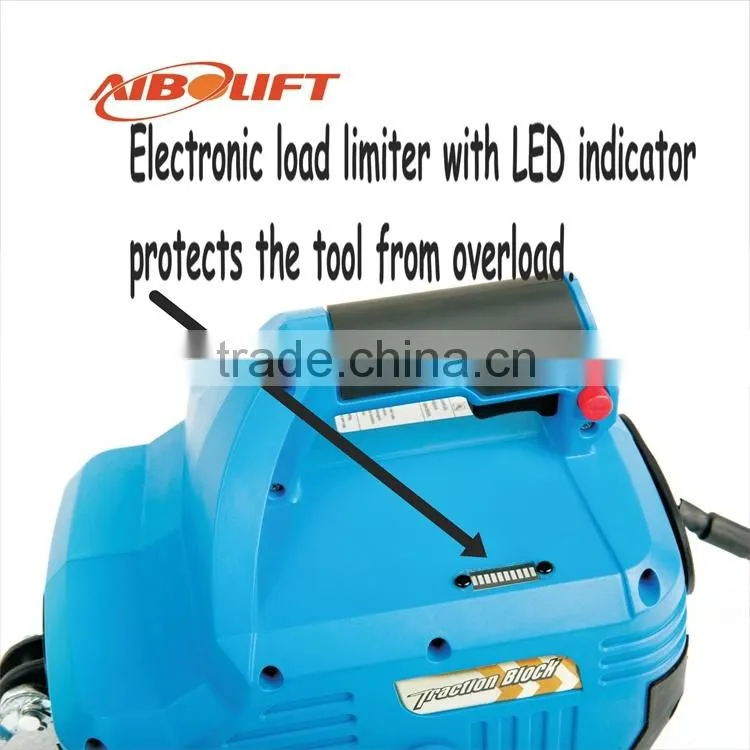

— Electronic load limiter with LED indicator protects the tool from overload.
— Self-locking geartrain with dynamic braking.
Q: What is our factory product range?
A: Mini electric wire rope hoist, suspending electric hoist, wire rope winch, vertical lifting AC winch remote control etc.
Q: What information should I provide if I want to order the products?
A:1) Product information: Quantity, Model No. , Specification (capacity, lifting height, voltage, size, material, color and packing requirements),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/air port.
4) Forwarder's contact details if there is any in China.
Q: How about your payment terms?
A: For trial sample order, 100% advance, via Western Union is preferred.
For bulk order, 30% deposit, with the balance before delivery, via TT.
Q: Can I use our own logo?
A:Yes, we can produce by using your own logo.
Q: What’s the sample policy?
A: We can send you 1pc of sample for your test, but you need to pay for the sample fee and delivery expenses, as it's our company's rule. Pls contact us for the sample details.
Experienced but Keep Original

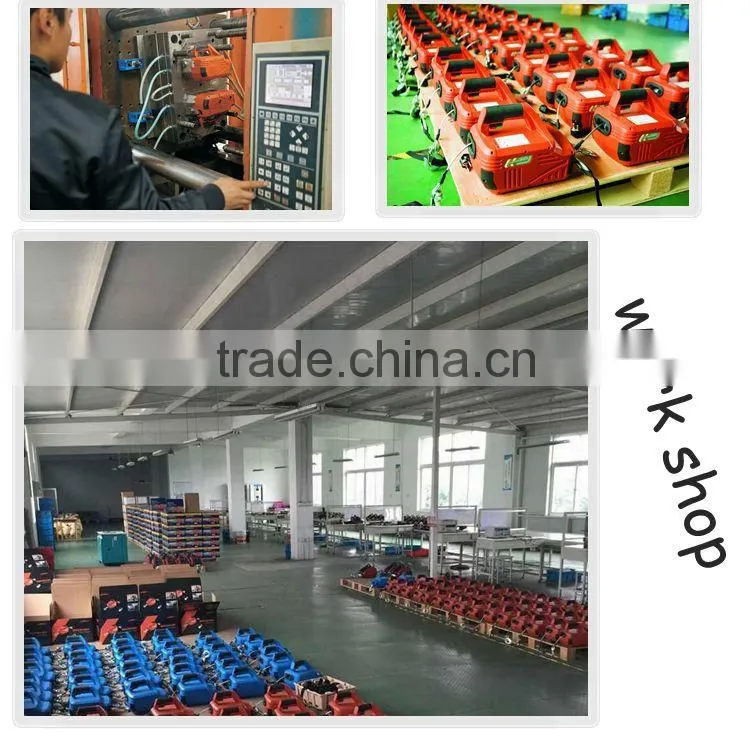

Over 23 years in hardware manufacture and continue developing new styles in electric hoist and winch. OEM is available due to skilled engineers and trained staffs.
Cost Down, Quality Up
Independently manufacture and export by us that will help you cost saving and more competitive in the market.
Only suppliers with good fame will we select to cooperate from raw material to packing.
Mature management ensures a smooth production.
Testing systems are established to ensure finished product are in good quality, including hoisting test, pulling test, high voltage resistance test and earth resistance test.
These build up our confidence.
Service within 24 hours
We promise to feedback within 24 hours from Monday to Saturday.
Pulling, Lifting, Energy Saving! Easy you take, Safety we care!
