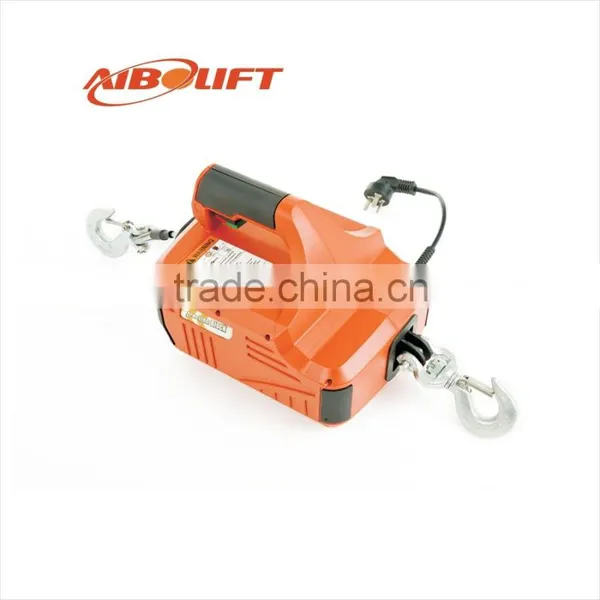

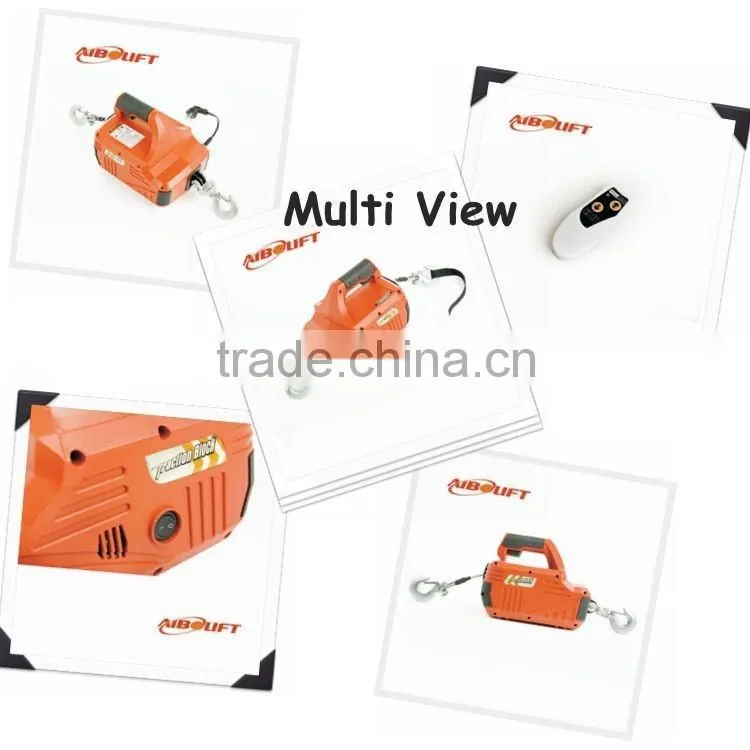

mini portable electric winch 500lbs with remote control
| Item No. | Capacity |
Lifting H. |
Wire rope
dia
|
Speed |
Power |
Voltage |
Overall dim. | N.W. |
ATQ-01 |
450kg |
4.6M |
5.8mm |
5m/min |
1200w |
230v |
50*21*21cm | 7kg |
|
ATQ-02
remote control
|
450kg |
4.6M |
5.8mm |
5m/min |
1200w |
230v |
same as abv. |
7kg |
ATQ-03 |
250kg |
8M |
4.8mm |
5m/min |
1200w |
230v |
same as abv. |
7kg |
|
ATQ-04
remote control
|
250kg |
8M |
4.8mm |
5m/min | 1200w |
230v |
same as abv. |
7kg |
MINI hoist |
180-250 |
15-30M |
5mm |
12m/min |
- |
230v |
60*23*24cm |
18.5kg |

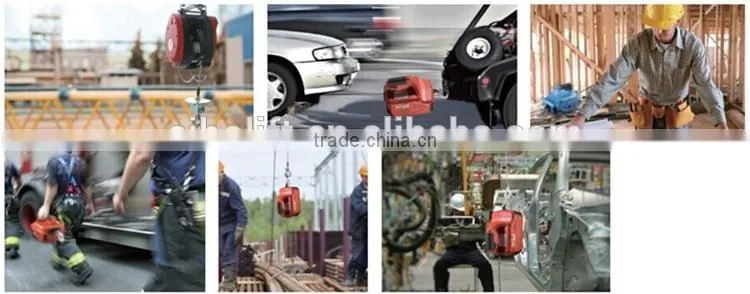

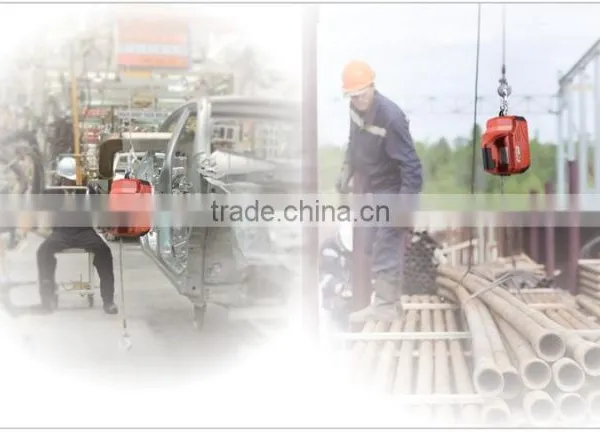

It's easy-to-mount and ideal for mobile use on pickup materials, machines, trucks etc

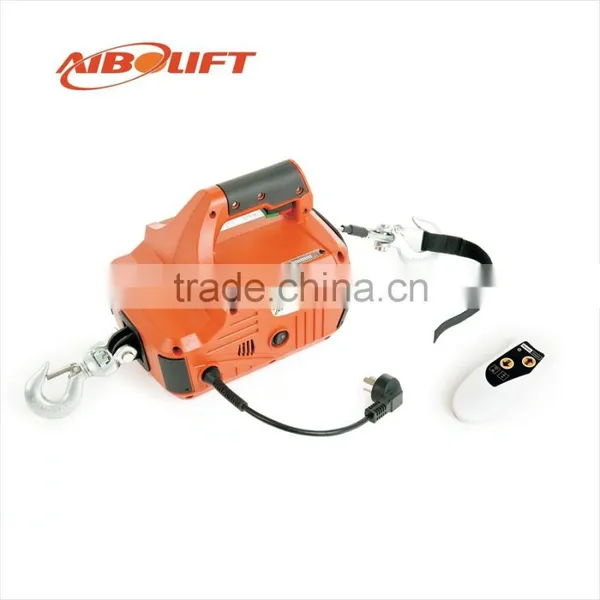

Equipped with a strong motor and remote control, this tool allows you to move heavy items into place with minimum effort.
1.Model Number: |
ATQ-04 |
2.Power Source: |
Electric 1200W |
3.Voltage: |
AC 100-240V/50/60HZ |
4.Lifting Height: |
8M |

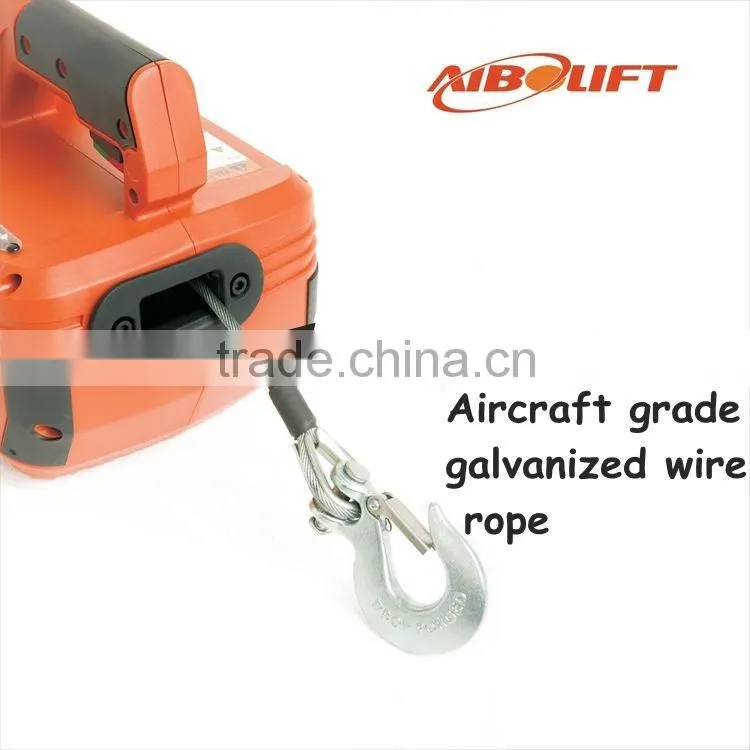

5.Wire rope dia: |
4.8mm |
6.Speed: |
5m/min |
7.Load Capacity: |
250KGS/550lbs |
8. Net weight: |
7kg |
9.Motor: |
Series motor |
10. Protection: |
Overload and overheat protection, remote control adds a third protection. |
11.Certification: |
CE and ISO |
12.Color: |
Blue,Yellow,Red or According to Customer Request |
13.Logo: |
AiboLift |
14.OEM: |
Available |
15.MOQ: |
108sets, small trial order is acceptable |
16.Production Capacity: |
5000sets/Month |
17.Sample Lead time: |
5days for regular item |

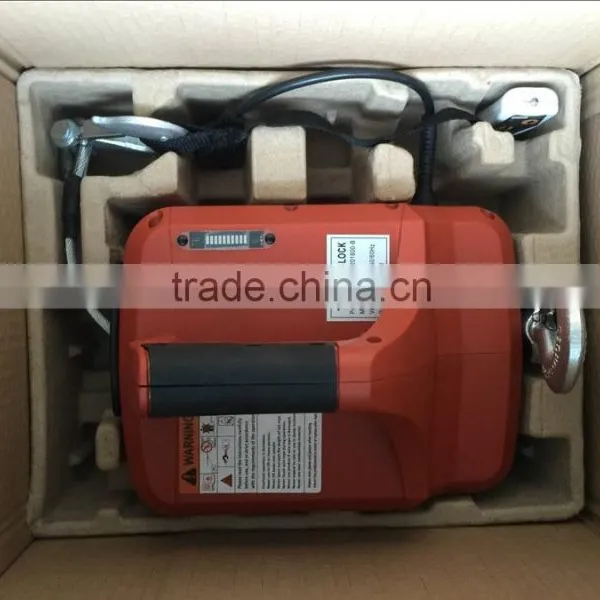

18.Packing: |
Color Box or Standard Export Cartons |
19.Delivery: |
By express courier / by air / by sea |
20.Payment: |
T/T |
Q: What is our factory product range?
A: Mini electric wire rope hoist, suspending electric hoist, wire rope winch, vertical lifting AC winch remote control etc.
Q: What information should I provide if I want to order the products?
A:1) Product information: Quantity, Model No. , Specification (capacity, lifting height, voltage, size, material, color and packing requirements),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/air port.
4) Forwarder's contact details if there is any in China.
Q: How about your payment terms?
A: For trial sample order, 100% advance, via Western Union is preferred.
For bulk order, 30% deposit, with the balance before delivery, via TT.
Q: Can I use our own logo?
A:Yes, we can produce by using your own logo.
Q: What’s the sample policy?
A: We can send you 1pc of sample for your test, but you need to pay for the sample fee and delivery expenses, as it's our company's rule. Pls contact us for the sample details.
Experienced but Keep Original
Over 23 years in hardware manufacture and continue developing new styles in electric hoist and winch. OEM is available due to skilled engineers and trained staffs.
Cost Down, Quality Up
Independently manufacture and export by us that will help you cost saving and more competitive in the market.
Only suppliers with good fame will we select to cooperate from raw material to packing.
Mature management ensures a smooth production.
Testing systems are established to ensure finished product are in good quality, including hoisting test, pulling test, high voltage resistance test and earth resistance test.
These build up our confidence.
Service within 24 hours
We promise to feedback within 24 hours from Monday to Saturday.
Pulling, Lifting, Energy Saving! Easy you take, Safety we care!
