Home > Instruments & Meters > Meter for Liquid & Gas > Flow Meter > Orifice Plate Flow Meter Made in China

Orifice Plate Flow Meter Made in China

Name: Orifice Plate Flow Meter Made in China
Brand: kaide
SKU: 111464093
Availability: InStock

Kaifeng Kaide Flow Instrument Co., Ltd.

Orifice Plate Flow Meter Made in China thumbnail-1

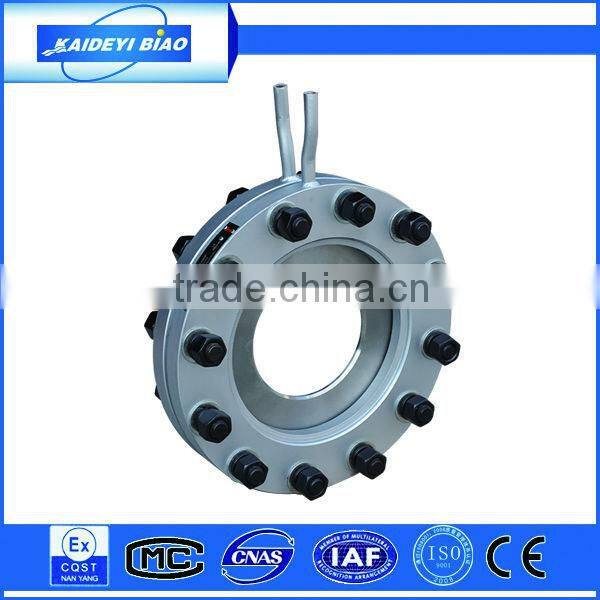

Orifice Plate Flow Meter Made in China photo-1

US$ 200 - 3,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

kaide

Model Number:

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name kaide

Model Number LZ

Specifications

1.flow meter
2. displacement meter
3. high accuracy
4. easy installation.
5. Simple structure

Standard orifice plate

Digital/Smart /Intelligent standard orifice plate flow meter made in China is a kind of low cost liquid / water / gas / air flowmeter measuring tool / instrument, which is a kind of standard throttling device with the most models. They are widely used in the measurement of many kinds of fluid, especially gaseous fluid. The structure of orifice plate varies with the difference of nominal pressure, nominal diameter and pressure tapping mode. According to the main pressure tapping mode, standard orifice plate can be classified as corner taps(include annular chamber bore taps and single bore taps) orifice plate, flange taps orifice plate, radius taps(D and D/2 taps) orifice plate.

Specification:

Pressure tapping mode	corner taps		flange taps	radius taps(D and D/2 taps)
	annular chamber bore taps	single bore taps
Operating conditions	d≥12.5mm, DN:50~1600mm, β=0.20~0.75		d≥12.5mm, DN:50~1000mm, β=0.20~0.75	d≥12.5mm, DN:50~1000mm, β=0.20~0.75
Accuracy	±1.5%~±0.5%
