Specifications
Fluid measuring instruments(Magnetic flow meter,) DN10~3000, rubber/PTFE/hard rubber/etc. liner,flange,high quality,low prices1.Introduction:

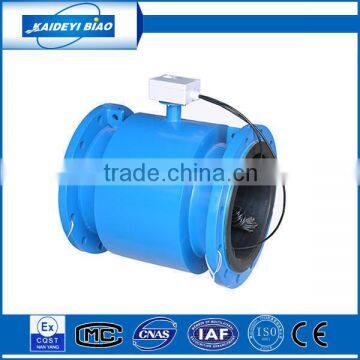

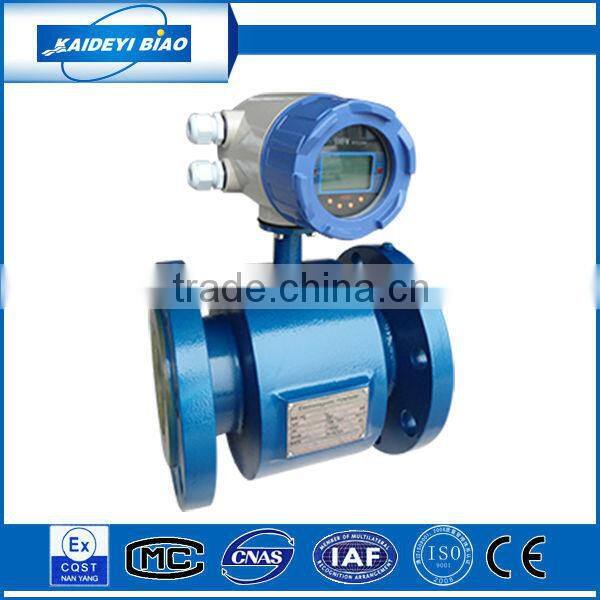

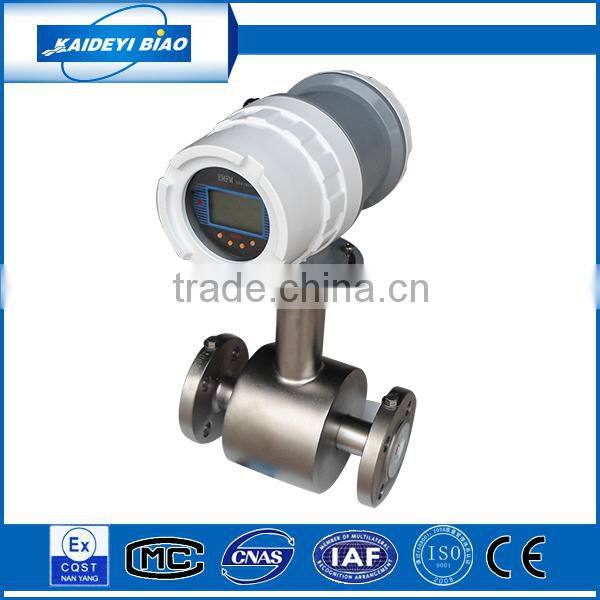

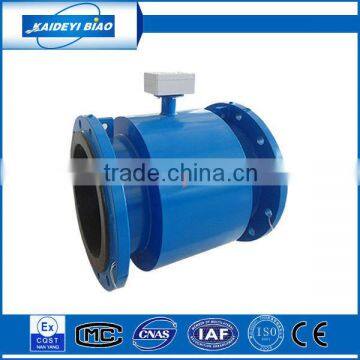

KDLD fluid measuring instrument (magnetic flow meter) is manufactured with the modern technology of electromagnetic flow, the measuring principle of which is based on the electromagnetic induction law of Farady. It is mainly used to measure the volume flow of conducting liquid and slurry in closed pipeline, applicable to industries like chemical, power supply, metallurgical mine, oil, water supply and drainage, paper making, pharmaceutical, food, etc..
2. Specifications:
| Item | Specifications |
Caliber(mm) | DN10~DN3000 |
| Pressure(MPa) | 0.6,1.0,1.6,4.0 |
| Accuracy | ±0.5% |
| Applicable medium | Conductive liquid and slurry |
| Medium Temperature | ≤150°C |
| Medium Conductivity | ≥5μS/cm |
| Medium Velocity | ≤15 m/s |
| Ambient | Temperature:-25°C~+60°C, Humidity: 5%~90% |
| Liner Material | Rubber, PTFE, Hard rubber, etc. |
| Electrode Material | SS316L,Ti,Ta,HB,HC,etc. |
| Electrode Type | Fixed type(DN150~DN2600); Blade type(DN300~DN1600) |
| Flange Material and standard | SS, CS Chinese national standard, ANSI standard, DIN, JSK, etc. |
| Signal Output | 4-20mA; Pulse |
| Display | LCD display with back light, able to display positive and negative instantaneous and accumulative flow |
| Communication | RS485, Modbus, RS232, HART, Profibus-DP |
| Power Supply | AC 85-265V, 45-63Hz, power≤20W; DC 11-40V; lithium battery(3.6V) |
| Protection Grade | IP65(convertor), IP67/68(sensor) |
| Explosion- proof Grade | Exdm2CT4, md2BT4 |
| Available Form | Compact/Remote |
