Help CenterLRD33 Generator Protection Relay
US$ 1 - 10
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Thinke/Orignal/OEM
Model Number:
LRD 33
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Thinke/Orignal/OEM
Model Number
LRD 33
Theory
Thermal Relay
Usage
Protective
Size
Miniature
Protect Feature
Other, IP20
Contact Load
Low Power
Specifications
LRD33 Generator Protection Relay1. Without smell
2. Rated current up to 95A
3. Standard IEC 60947
4. High quality

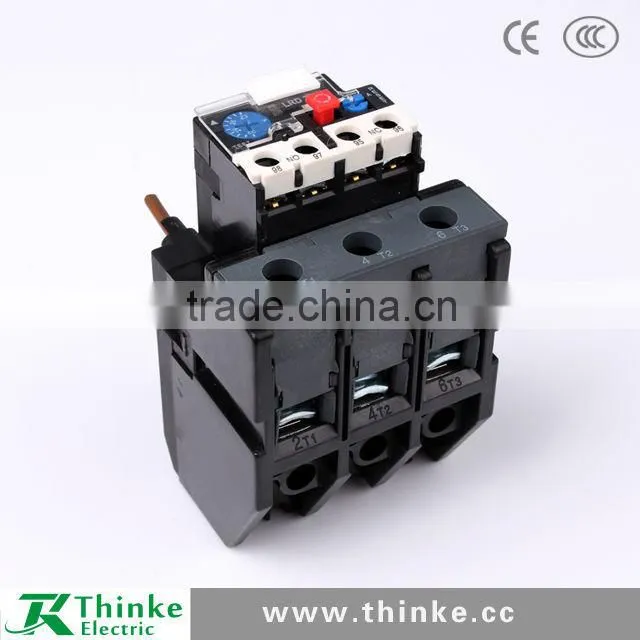

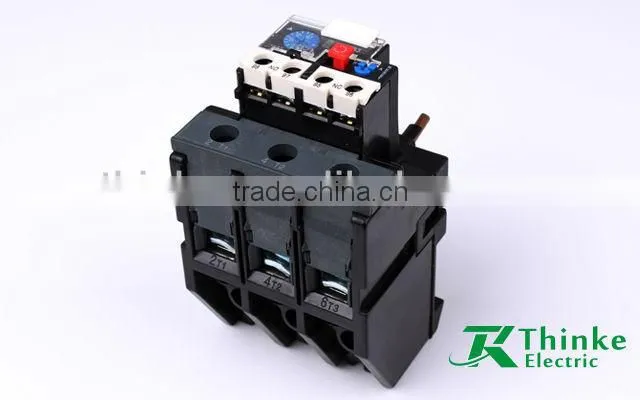

LRD33 Generator Protection Relay
LRD series thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V,
rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay
has different mechanism and temperature compensation& can be plunged in New LC1-D series AC
contactor.
| Type |
Rated Working Current Of Thermal Relay |
Thermal Component | ||
| Rated current (A) | Setting Current Range (A) | |||
|
LR2-D13** LRD** |
25 | 01 | 0.16 | 0.10~0.16 |
| 02 | 0.25 | 0.16~0.25 | ||
| 03 | 0.40 | 0.25~0.40 | ||
| 04 | 0.63 | 0.40~0.63 | ||
| 05 | 1.0 | 0.63~1.0 | ||
| 06 | 1.6 | 1.0~1.6 | ||
| 06 | 2.0 | 1.25~2.0 | ||
| 07 | 2.5 | 1.6~2.5 | ||
| 08 | 4.0 | 2.5~4.0 | ||
| 10 | 6.0 | 4.0~6.0 | ||
| 12 | 8.0 | 5.5~8.0 | ||
| 14 | 10 | 7.0~10.0 | ||
| 16 | 13.0 | 9.0~13.0 | ||
| 21 | 18.0 | 12.0~18.0 | ||
| LR2-D23 | 36 | 22 | 25.0 | 17.0~25.0 |
| 2353 | 32.0 | 23.0~32.0 | ||
|
LR2-D33** LRD33** |
93 | 2355 | 36 | 28.0~36.0 |
| 3353 | 32 | 23.0~32.0 | ||
| 3355 | 40 | 30.0~40.0 | ||
| 3357 | 50 | 37.0~50.0 |
||
| 3359 | 65 | 48.0~65.0 | ||
| 3361 | 70 | 55.0~70.0 |
||
| 3363 | 80 | 63.0~80.0 | ||
| 3365 | 93 | 80.0~93.0 | ||
Thank you for your perusal.If you have any inquiry,please feel free to let me know.
