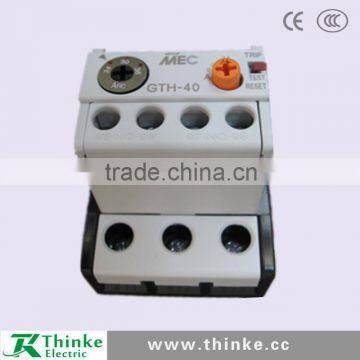

GTH-40 Thermal Overload Relay
USD $1.8 - $5.31
/ Piece
500 Pieces(Min.Order)
- 30000 Piece / Pieces per Month
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Thinke /OEM | |
| Model Number | GTH -40 | Theory | Thermal Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Other, IP20 | Contact Load | Low Power |
Product Description
Specifications
GTH-40 Thermal Overload Relay1.ISO9001
2.CE approved
3.fast delivery time
petitive price
GTH-40 Thermal Overload
GTH thermal overload relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V,
rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay
has different mechanism and temperature compensation& can be plunged in GMC series contactor.
| Ratings | Type | GTH-22 | GTH-40 | GTH-85 | ||||||
| Nominal Current | Ranges | Ranges | Ranges | |||||||
| Min | Mid | Max | Min | Mid | Max | Min | Mid | Max | ||
| Rated current(A) | 0.14 | 0.1 | 0.14 | 0.16 | ||||||
| 0.21 | 0.16 | 0.21 | 0.25 | |||||||
| 0.33 | 0.25 | 0.33 | 0.4 | |||||||
| 0.52 | 0.4 | 0.52 | 0.63 | |||||||
| 0.82 | 0.63 | 0.82 | 1 | |||||||
| 1.3 | 1 | 1.3 | 1.6 | |||||||
| 2.1 | 1.6 | 2.1 | 2.5 | |||||||
| 3.3 | 2.5 | 3.3 | 4 | |||||||
| 5 | 4 | 5 | 6 | 4 | 5 | 6 | ||||
| 6.5 | 5 | 6.5 | 8 | 5 | 6.5 | 8 | ||||
| 7.5 | 6 | 7.5 | 9 | 6 | 7.5 | 9 | ||||
| 8.5 | 7 | 8.5 | 10 | 7 | 8.5 | 10 | 7 | 8.5 | 10 | |
| 11 | 9 | 11 | 13 | 9 | 11 | 13 | 9 | 11 | 13 | |
| 15 | 12 | 15 | 18 | 12 | 15 | 18 | 12 | 15 | 18 | |
| 19 | 16 | 19 | 22 | 16 | 19 | 22 | 16 | 19 | 22 | |
| 22 | 18 | 22 | 26 | 18 | 22 | 26 | ||||
| 30 | 24 | 30 | 36 | 24 | 30 | 36 | ||||
| 34 | 28 | 34 | 40 | 28 | 34 | 40 | ||||
| 42 | 34 | 42 | 50 | |||||||
| 55 | 45 | 55 | 65 | |||||||
| 65 | 54 | 65 | 75 | |||||||
| 74 | 63 | 74 | 85 | |||||||
| Element Number | 2heaters | standard | standard | standard | ||||||
| 3heaters | option | option | option | |||||||
| Aux.Contact | 1NO 1NC | 1NO 1NC | 1NO 1NC | |||||||
| Reset type | Auto/Manual | Auto/Manual | Auto/Manual | |||||||
| Power Consumption | 1.8VA/heater | 2.0VA/heater | 3.5VA/heater | |||||||
| Dimension(mm)(W x H x D) | 44x63x90 | 53x67x90 | 70x73x103 | |||||||
| Separate Mounting Unit | AZ-22H | AZ-40H | AZ-85H | |||||||
| Other Model | 3heaters | GTH-22/3 | GTH-40/3 | GTH-85/3 | ||||||
| Applied Contactor | GMC-9,12,18,22 | GMC-32,40 | GMC-50,65,75,85 | |||||||
