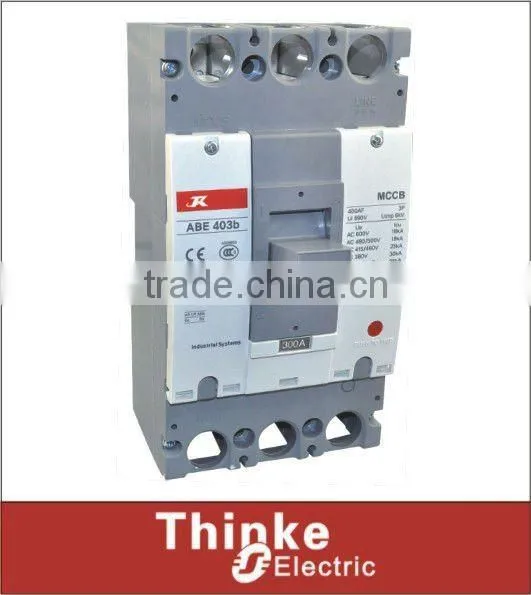

ABE 403b Mouled Case Ciruit Breaker(MCCB)
US$ 5.38 - 10.77
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Thinke/OEM
Model Number:
ABE 403b
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Square EZD Circuit BreakerUS$ 9.231 - 10.77MOQ: 100 Pieces -
Square EZD Circuit BreakerUS$ 3.231 - 20.77MOQ: 100 Pieces
-
4V(A) 200 Series Magnetic Valve Gas Control ValveUS$ 5 - 10MOQ: 1 Piece
-
4V(A) 100 Series 5-nuzzle 2(3)-knob Magnetic Valve Gas Control ValveUS$ 5 - 10MOQ: 1 Piece
-
2V025-08 Series Solenoid Valve 2/2 Way Alumnium Alloy ValveUS$ 5 - 10MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Thinke/OEM
Model Number
ABE 403b
Type
Moulded Case
Poles Number
3
Specifications
ABE-403b moulded case circuit breaker(MCCB)1. ABE-53 63 103 203 403 803
2. specialized production
3. Goog quality & Price
ABE-403b moulded case circuit breaker(MCCB)
ABE/ABS series MCCB is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, undervoltage. The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
| Type | 2pole | AB-32E | AB-52E | AB-52S | AB-62E | AB-62S | AB-102E | AB-102S | AB-203E | AB-203S | AB-403E | AB-403S |
| 3pole | AB-33S | AB-53E | AB-53S | AB-63E | AB-63S | AB-103E | AB-103S | |||||
| Frame size(AF) | 30 | 50 | 60 | 100 | 225 | 400 | ||||||
| Rated operational voltage(V)Ue (50/60Hz) | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | |
| Rated insulation voltage(V)Ui(50/60Hz) | 690 | 690 | 690 | 900 | 900 | 690 | 690 | 690 | 690 | 690 | 690 | |
| Rated impulse withstand voltage(KV)Uimp | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Uitimate breaking capacity (KA,Icu AC 50/60Hz) | 220V/240V | 10 | 10 | 25 | 10 | 25 | 10 | 50 | 35 | 50 | 35 | 50 |
| 380V | 7.5/5 | 7.5/5 | 14/10 | 7.5/5 | 14/10 | 7.5/5 | 25 | 18 | 25 | 30 | 42 | |
| 415V | 7.5/5 | 7.5/5 | 14/10 | 7.5/5 | 14/10 | 7.5/5 | 25 | 18 | 25 | 25 | 35 | |
| 440/460V | 5 | 5 | 10 | 5 | 10 | 5 | 25 | 18 | 25 | 25 | 35 | |
| 480/500V | 2.5 | 2.5 | 7.5 | 2.5 | 7.5 | 2.5 | 25 | 10 | 14 | 18 | 25 | |
| 600V | 2.5 | 2.5 | 5 | 2.5 | 5 | 2.5 | 14 | 7.5 | 10 | 18 | 22 | |
| Utilisation category | A | A | A | A | A | A | A | A | A | A | A | |
| Endurance | Mechanical | 8500 | 8500 | 8500 | 8500 | 8500 | 8500 | 8500 | 7000 | 7000 | 4000 | 400 |
| Electrical | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 | |
