Home > Electrical & Electronics > Breaker & Protector > Circuit Breaker > Square EZD Circuit Breaker

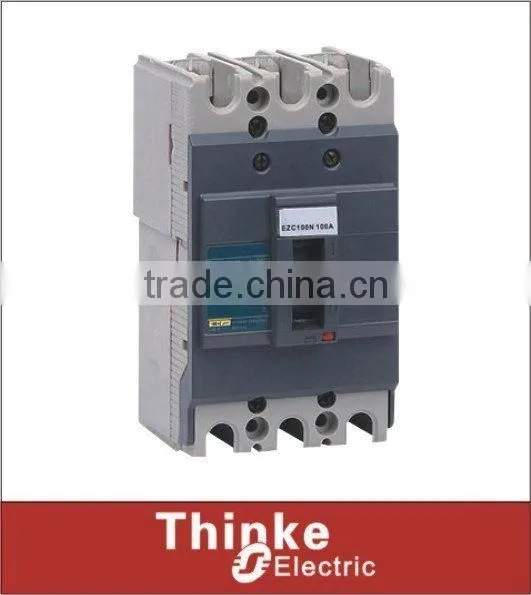

Square EZD Circuit Breaker

Name: Square EZD Circuit Breaker
Brand: Thinke
SKU: 111458715
Availability: InStock

US$ 9.231 - 10.77 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Thinke

Model Number:

EZD-100H

Contact Supplier Request Quote Chat Now

Wenzhou Thinke Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Thinke

Model Number EZD-100H

Type Moulded Case

Poles Number 3

Specifications

Square EZD Circuit Breaker
1. EZD 16A ~250A
2. specialized production
3. High quality & good price

Square EZD Circuit Breaker

EZD series moulded case circuit breaker (ezc mccb, easypact circuit breaker) , which adopts international advanced design and manufacturing technology, they are suitable for short circuit and overload protection for circuit of AC690V, 50/60Hz, rated current from 12.5A to 250A, its rated insulation voltage is 690V, it can make and break the non-frequent circuit in the normal conditions, it takes protecting effect when mouse cage motors when non-frequently start, breaking off working and protecting overload, short circuit and under voltage, complies with IEC60947-2.

Date sheet:

Specification				EZD60E	EZDC100F	EZD100H	EZD250H
Number of Poles				3	3	3	3
Rated Current, In(A)				15, 20, 25, 30, 40, 50, 60	15, 20, 25, 30, 40, 50, 60, 75, 80, 100	15, 20, 25, 30, 40, 50, 60, 75, 80, 100	125, 160, 225, 250
Rated Operating Voltage Ue(V), AC50/60Hz				500	500	500	500
Rated Insulation Voltage Ui(V)				500	500	500	500
Rated Uimp (kV)				6	6	6	6
Breaking Capacity (kA ms), IEC60947-2		Icu, AC	220/240V	10	25	50	85
			380V	7.5	10	30	18
			400V	7.5	7.5	20	15
		Ics%, Icu	220/240V	25%	25%	25%	25%
			380V	25%	25%	25%	25%
			400V	25%	25%	25%	25%
Breaking Capacity (kA), NEMA-ABI, HIC		AC	240V	-	-	25	25
Breaking Capacity (kA), NEMA-ABI, HIC		AC	480V	-	-	10	10
Mechanical Life (times)				8500	8500	8500	8500
Electrical Life (times)				4000	4000	4000	4000
Over Current Protection (A)	Thermal-Magnetic Protection			Fixed	Fixed	Fixed	Fixed
Over Current Protection (A)	Electronic Protection			Fixed	Fixed	Fixed	Fixed
Size (mm), LxWxH				75x130x60	75x130x60	75x130x60	105x165x65
