Home > Industrial Equipment & Components > Valve > Ball Valve > 4V(A) 100 Series 5-nuzzle 2(3)-knob Magnetic Valve Gas Control Valve

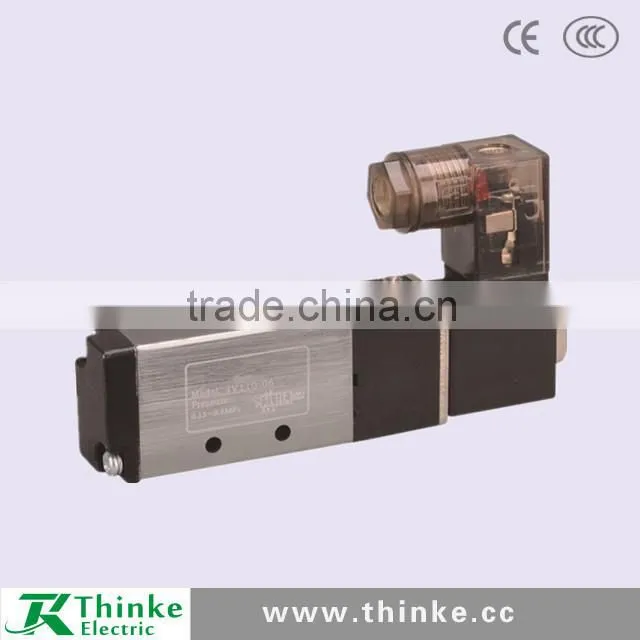

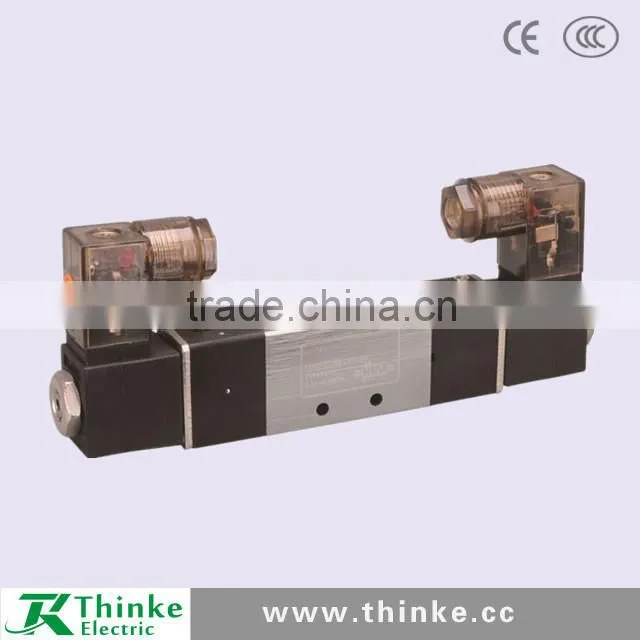

4V(A) 100 Series 5-nuzzle 2(3)-knob Magnetic Valve Gas Control Valve
US$ 5 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Regulating
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2V025-08 Series Solenoid Valve 2/2 Way Alumnium Alloy ValveUS$ 5 - 10MOQ: 1 Piece -
3V210-08 DC 24V 2 Positions 3 Ways Pneumatic Solenoid Valve Quality ChoiceUS$ 5 - 10MOQ: 1 Piece
-
4H Series Pneumatic Hand Lever Valve 4H210/4H310US$ 5 - 10MOQ: 1 Piece
-
Pneumatic 4R Series Hand Control ValveUS$ 5 - 10MOQ: 1 Piece
-
4FM Series 4F210-08 2 Position 5 Way Foot Pressure Control Air Pneumatic ValveUS$ 5 - 10MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Regulating
Pressure
Medium Pressure
Power
Pneumatic
Material
Alloy
Temperature of Media
Other, 5~50
Media
Other, 40 Micron Fitered Air
Port Size
M5: M5x0.8 06:1/8''
Place of Origin
Zhejiang, China
Model Number
4V(A) 100 Series
Brand Name
OEM
Application
Other
Welcome,my friend!
Glad to introduce 4V(A) 100 Series 5-nuzzle 2(3)-knob Magnetic Valve Gas Control Valve and our company to you. If you have any questions, please don't hesitate to ask me.

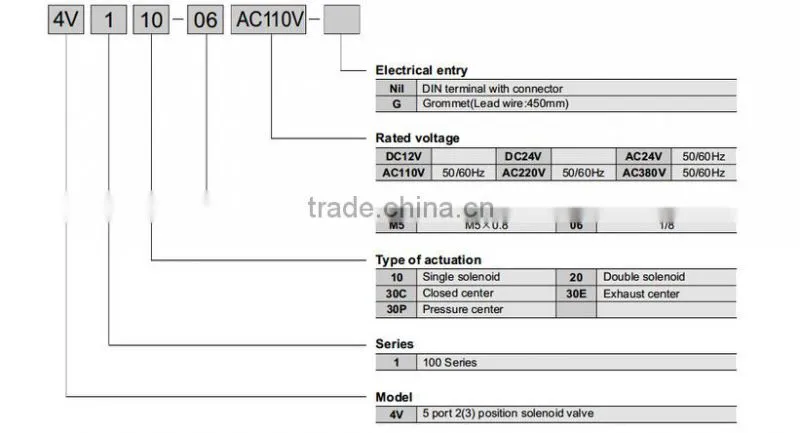

How to order:
Specification:
| Type | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |
| 4V110-M5 | 4V120-M5 | 4A130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 | |
| Position Number | Two-position Five-way | Three-postion Five-way | Two-position Five-way | Three-position Five-way | ||||||
| Effective Sectional Area | 5.5mm2(CV=0.31) | 5mm2(CV=0.28) | 12mm2(CV=0.67) | 9mm2(cv=0.5) | ||||||
| Joint Pipe Bore | Air Inlet=Air Outlet=Exhaust=M5x0.8 | Air Inlet=Air Outlet=Exhaust=PT1/8" | ||||||||
| Working Medium | 40 Micron Fitered Air | |||||||||
| Motion Pattern | Inner Guide Type | |||||||||
| Working-pressure | 0.15~0.8MPa | |||||||||
| Max. Pressure Resistance | 1.2MPa | |||||||||
| Operating Temperature | 5~50 | |||||||||
| Votagel Range | ±10% | |||||||||
| Power Consumption | AC:4.5VA DC:2.5W | |||||||||
| Insulation & Protection Class | F Class IP65 | |||||||||
| Wring Form | Lead Wire or Connector type | |||||||||
| Highest Action Frequency | 3 Cycle Sec | |||||||||
| Shortest Excitation Time | 0.05 Second | |||||||||
If you can cooperate with us, we will be honored and you will benefit from:
1.- Your client satisfied on the right schedule and quality
2.- Your can get good reputation from your market and obtain more orders
3.- Our professional service before and after sale
4.- The reasonable price
5.- Any questions from you are welcome and will be replied in 24 hours
Please contact us for more information.
Our managers will be happy to answer any questions and consider any requests that you may have.
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2010
Factory Size
1,000-3,000 square meters
Total Employees
11 - 50 People
