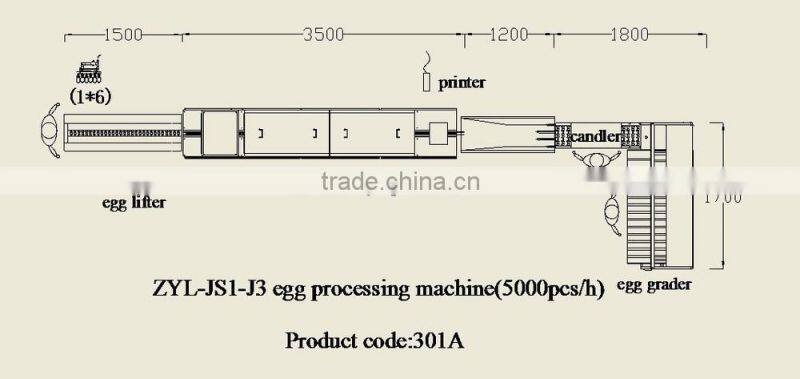

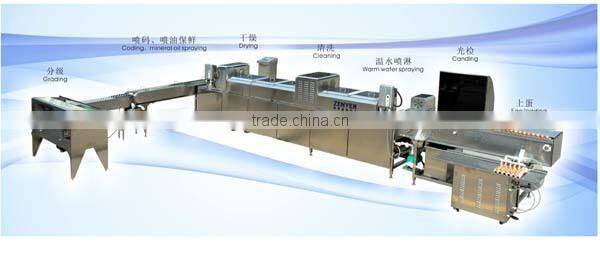

Egg processing machine/ egg washing /egg grading machine

1.Vacuum egg lifter

First, Eggs are sucked onto the roller of egg loading unit by a vacuum egg lifter (5*6=30 eggs each suck). The vacuum egg lifter is sucked by a motor but lift up and down by hand, that helps workers to load eggs onto the egg machine more easily.

Cleaning

Eggs are put by vacuum egg lifter on the roller of cleaner,will be aligned automatically, so as to guarantee all the eggs enter the egg cleaning machine in good order. There are 2 parts of bush in this type of egg cleaning machine, egg will be cleaned with warm water by the first brush.

Drying

Water on the eggs will be swiped off by the second brush, and at same time eggs will be dried by strong heated wind generated by drying fan.

Printing

After being dried, eggs will be printed by the cartridge printer, the position where code is printed is in the middle of the eggs (between the bigger head and the smaller head).

Coating(food-grade oil spraying)

After being printed, the eggs will enter the egg oil spraying part where

eggs will been coated a thin layer of food-grade mineral oil thus preventing the eggs from being intruded by bacteria and keep the eggs fresh for a longer time.

UV

The UV system uses Ultra Violet technology to reduce contamination and bacteria on the shell surface of the eggs after washing. The cover ensures that UV-C light stays within the system. The handle beside the cover makes cleaning very easy.

Candling

Candler with LED light source has been installed on the roller of grader to help operators to check whether there is any damage on the eggs. For example eggs with cracks, eggs with black core, eggs having gone bad can be selected out by hand

Grading

After candling, eggs will enter the weighing part of grader. Egg grading machine can at most separate eggs into 5 grades. Eggs of different weight fall down onto to different lanes of the egg collecting board of grader.

Package

At last, respectively workers pack eggs located on egg collecting belt and egg collecting table into the trays by hand, some eggs will be packed into egg tray automatically by egg packing machine.

We have 20 years experience of machine design and manufacturing. Our designs are being made acooding to the European standants. Our company philosophy is to set customer satisfaction in the first place together with the high quality.
