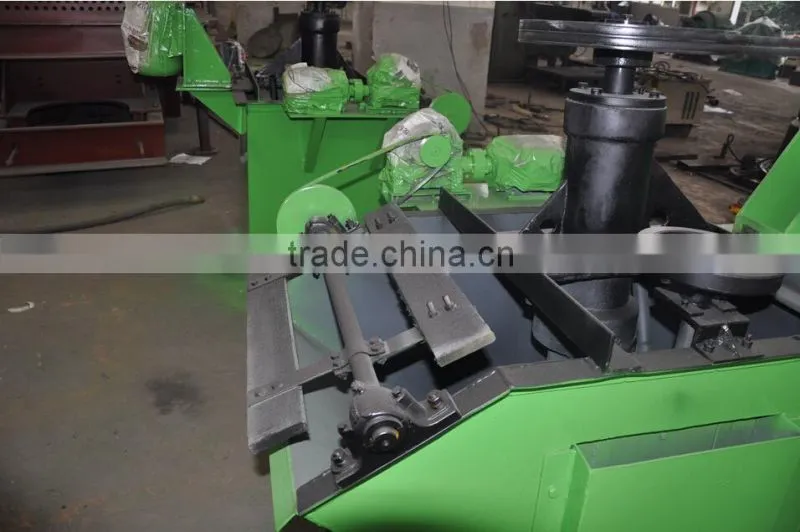

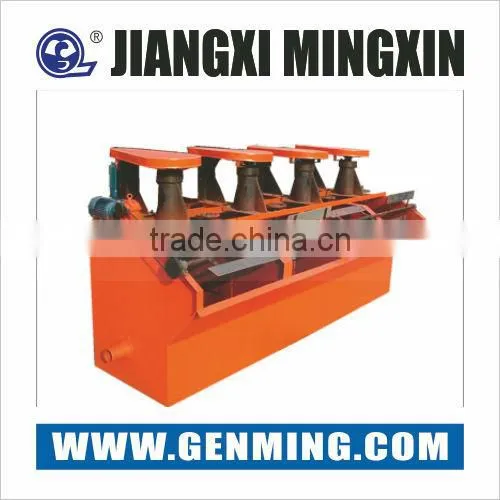

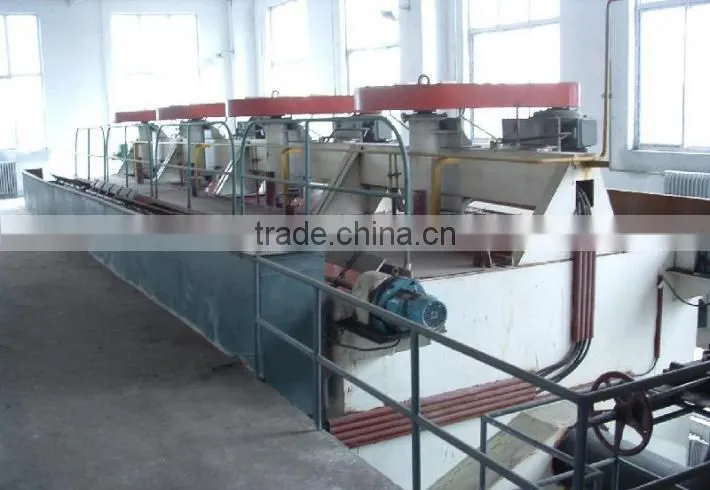

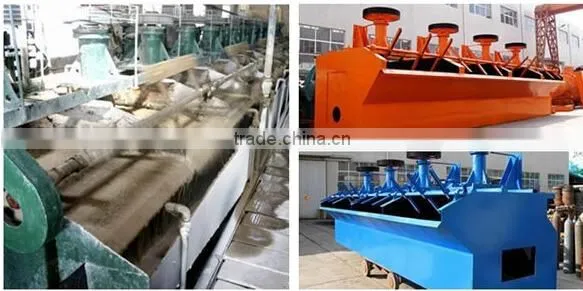

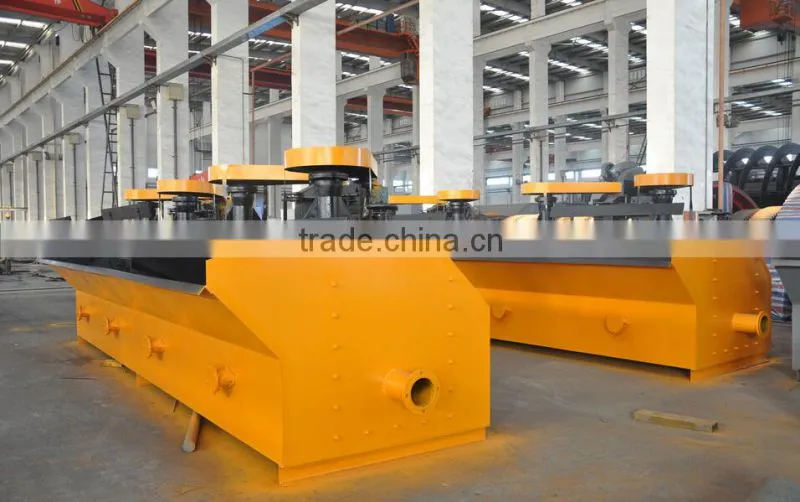

Widely-used mining equipment SF flotation machine
Description of flotation machine
SF series flotation machine is applied for rough,fine and sweep separating process of ferrous metals, precious metals, non-metallic minerals and non-ferrous metals, such as lead, copper, zinc, molybdenum, gold, etc. This series flotation machine is with large inspiratory capacity inflow and low energy consumption.Each chute is levelly installed and performs three functions: inhaling air, inhaling ore pulp and flotation separation without accessories.
working principle of flotation machine
1. when flotation machine works, slurry is inhaled from the bottom of the trough to the space between impellers
2. Meanwhile, the low pressure air send by fan is sent to this area through the air distributor in the hollow shaft
3. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough

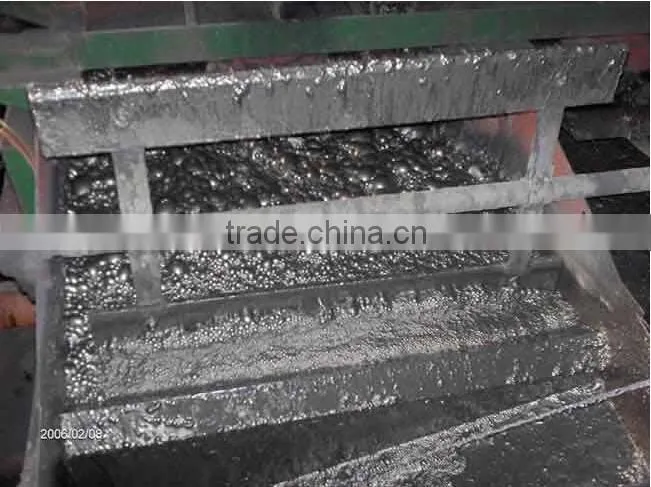

4. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth through from the overflow weir. Another part of ore slurry flows to lower part of impeller for the remis with air
5. The remained slurry flows to the next trough until becomes residue
Features of flotation machine
1. durable using life
2. high efficiency
3. low energy consumption
4. high recovering rate
SF serise flotation machine
| Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | ||
| Volume (m3) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | ||
|
Impeller diameter (mm) |
300 | 350 | 450 | 550 | 650 | ||
| Capacity (t/h) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | ||
| Impeller speed (r/min) | 352 | 400 | 312 | 268 | 238 | ||
| Motor | model | rotor | Y90L-4 | Y132S-6 | Y13M-6 | Y180L-8 | Y200L-8 |
| scraper | Y80L-4 | Y90L-6 | Y90L-6 | Y100L-6 | Y100L-6 | ||
| power(kw) | (1)1.5 (2)0.75 | (1)3 (2)1.1 | (1)5.5 (2)1.1 | (1)11 (2)1.5 | (1)15 (2)1.5 | ||
| Chute weight (kg/chute) | 445 | 600 | 1240 | 2242 | 2660 | ||
| Overall dimension (mm) | 700×700×750 | 900×1100×950 | 1100×1100×1100 | 1700×1600×1150 | 1700×1600×1150 | ||
Our service
1. do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory
2. design the mineral processing and recovering flow chart. design the layout of machines in mining plant
3. provide installation & operation video for mining plant
4. our engineer can go to customer minesite for installation, running test and training staff overseas
