High capacity gold separation shaking table, Gold Mining Equipment Mineral Plant

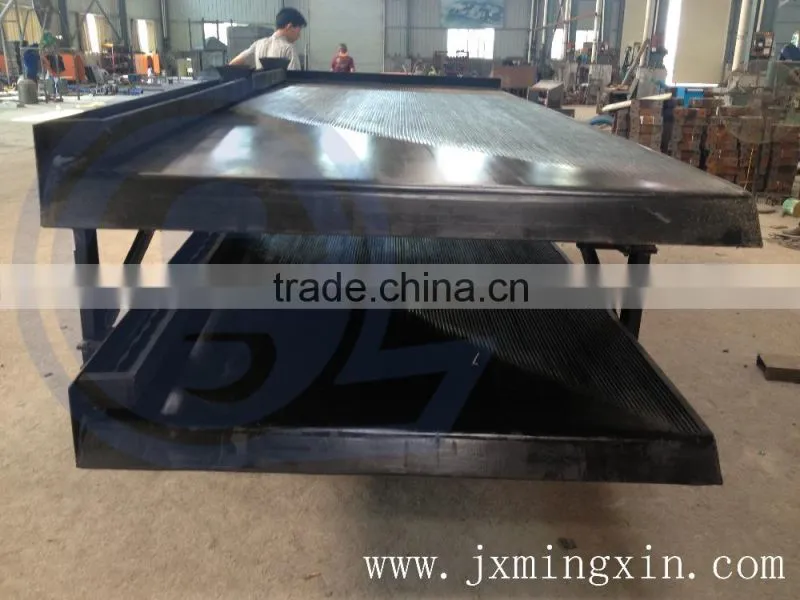

Double-deck mining vibrating table description
There is a trouble for user that the traditional 6-s single-deck shaking table is large area occupied, low capacity and expensive.And haven't been solved effectively for a long time.Since the double-deck shaking table come out,the problem was solved.
Application of mining vibrating
Double-deck shaking table widely used in separating tungsten, tin, tantalum, niobium, gold and other rare metals and precious metal.Can be used for roughing, selection, sweep and other different jobs .Selection Coarse sand (2-0.5mm), fine sand (0.5-0.074mm), sludge (-0.074) and other different size fractions.Can also be used to choose iron, manganese ore and coal.When dealing with tungsten and tin ore, the efficiency size range is 0.02mm to 2mm.
How to choose the right model of mining vibrating table
To Choosing the shaking table model according to the Max feeding size, the feeding amount and plant area.
1.Max feeding size <2mm, coarse sand deck shaking table
2.Max feeding size <0.5mm, fine sand deck shaking table
3.Max feeding size <0.1mm, slime deck shaking table
the smaller the feeding size is, the less feeding amount will be.
if the plant area is not enough, we can use double-decked shaking table.
Feature of 6-S Double deck mining virbrating table
Double-deck shaking table is a innovative products base on Single-deck shaking table ,with the feature ,covers an area of small, large capacity, energy saving, equipment costs are relatively low, with high-grade ore ratio, high sorting efficiency, easy to management, easy to adjust stroke, time of stroke etc.when changing the cross slope and stroke still maintain running balance. spring is placed in the casing, compact structure,and it can obtain a final concentrate and final tailings.
The techincal of MX mining vibrating table
| Model | 6s-7.6 | 6s-4.08 | 6s-1.95 | 6s-0.5 | ||||
| Deck type | Coarse ore deck | Fine sand deck | Slime deck | |||||
| Benefication Area(m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | ||
| Deck size | Length(mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 | |
| Transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | ||
| Concentrate end width (mm) | 1546 | 1546 | 1546 | 110 | 850 | 430 | ||
| Maximum feeding size(mm) | 2 | 0.5 | 0.15 | Sand -2 Slime-0.1 | Sand -2 Slime-0.074 | Sand -2 Slime-0.074 | ||
| Feeding amount | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.4-1.5t/h | 0.3-0.8t/h | 0.05-0.2t/h | ||
| Feeding density(%) | 25-30 | 20-25 | 15-25 | 10-30 | ||||
| Stroke(mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | ||
| Frequency(F) | 45-220 | 53-250 | 60-280 | 210-320 | 250-450 | 280-460 | ||
| Water added | 1-3t/h | 1-3t/h | 1-3t/h | 0.4-2t/h | 0.2-1t/h | 0.1-0.5t/h | ||
| Transverse slope of deck | 2°30-4°30 | 1°30-3°30 | 1°-2° | 0-10° | 0-8° | 0-10° | ||
| Longitudinal slope of deck | 1.4 | 0.92 | --- | --- | --- | --- | ||
| Cross-section shape of deck | rectangular | saw-tooth | triangle | --- | --- | --- | ||
| Motor power(kw) | 1.1 | 0.55 | ||||||
| Transmission mechanism | Eccentric linkage | |||||||
The techincal parameters of double-deck mining vibrating table
number |
name |
Model |
stroke |
Time of stroke |
Feed size |
Dimensions (mm) |
Capacity (t/h) |
Weight (kg) |
Power (KW) |
1 |
double-deck shaking table |
6-s |
8-36 |
240-380 |
0.02-2 |
5600*2000*1200 |
1.5-2 |
1415 |
1.5 |
Our service
1. do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory
2. design the mineral processing and recovering flow chart. design the layout of machines in mining plant
3. provide installation & operation video for mining plant
4. our engineer can go to customer minesite for installation, running test and training staff overseas
1 how long is the product warranty period ?
A: the product warranty period is 12 months
2. I am a foreign customers, if the machine works wrong, how your company resolved ?
A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.
3. how much is MOQ of your machine?
A:our machines MOQ is 1 set and also support the mixed batch.
4.Where can we buy the machine's parts?
A: Our company can provide machine`s parts for your any time
5.How can we get the quotation?
First send the detailed requirement to my email,such as capacity , Power consumption,The recovery rate etc.
Then,we send a process flow(including the introduction of whole recycling production line , flow chart ,configuration of the device,and the techincal parameters) to you according to your requirement.
Untill you agree to our plan ,we will send quotation to you.
6.What's the trade terms and payment terms?
We usually quotated for FOB/Ex-work/CIF price.
Payment we can accept TT in advance/paypal account/wester union....
