Specifications
1) Advanced technical parameters,2) big processing capacity, high efficiency screening.
3) Easy to maintenance and use.
Specification
Being high efficient sieving equipment, it is widely used in mining, coal, metallurgy, building materials, refractory materials, light industry and chemistry industries.

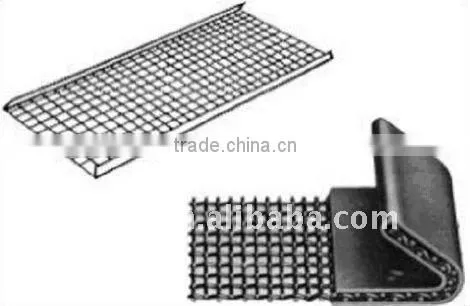

The vibrating exciter is installed in the side plate of sieving box. Together with motor, the exciter rotates through coupling or belt, which produces centrifugal inertia force. The sieving screen is the main easy-wear part. The perforated sieving plate and rubber sieving plate can be knitted by austenitic manganese steel, according to different raw materials and customer requirements. The sieving plate has the types of single layer and double-layers. The sieve obliquity can be adjusted by the height of the supporting seat of spring.
Model |
Screen surface size (mm) |
Screen surface layer (layer) |
Feeding size (mm) |
Sieve Size (mm) |
Vibration frequency (times / min) |
Dual amplitude (mm) |
Sieve Loft (degrees) |
DD918 |
900 * 800 |
1 |
≤ 60 |
1,2,3,6,8,10,13, 16,20,25 |
1000 |
5-6 |
15-25 |
2DD918 |
900 * 1800 |
2 |
≤ 60 |
"" |
" |
" |
" |
SZZ1918 |
900 * 1800 |
1 |
≤ |
1,2,3,6,8,10,13, 16,20 |
" |
" |
" |
SZZ2918 |
900 * 1800 |
2 |
≤ |
"" |
" |
" |
" |
ZD1224 |
1200 * 2400 |
1 |
≤ |
6,8,10,13,13,16 |
850 |
6-7 |
" |
2ZD1224 |
1200 * 2400 |
2 |
≤ |
20,25,30,40 |
" |
" |
" |
DD612 |
600 * 1200 |
1 |
≤ |
1,2,3,6,8,10 |
1000 |
5-6 |
" |
2DD612 |
600 * 1200 |
2 |
≤ |
13,16,20,25 |
" |
" |
" |
