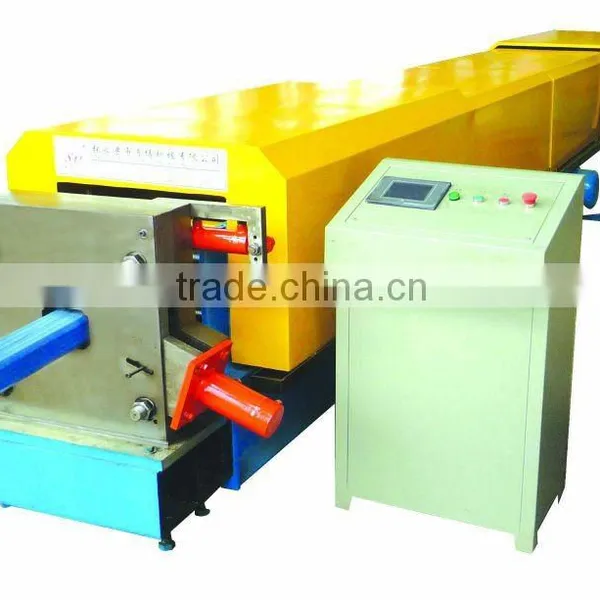

Gutter forming machine

Specifications

Gutter roll forming machine includs: 5 ton manual un-coiler
Main forming machine
Control box
Hydraulic station
Out table

 Gutter forming machine :



Rolling Speed	12 - 15m/min(not include cutting time)
Rolling Thickness	0.4-0.8mm with Aluminum coils, Galvalume coil and coated Galvalume coil
Control System	PLC (Panasonic) as list in the note
Un Coiler	5 ton manual un-coiler
Roller Stations	Upper: 18 station Lower: 22 station According to the final design
Station Type	Wall panel
Roller Material	45# forge steel, coated with chrome
Shaft Material and DIA	76mm, material is 45# forge steel
Maim Motor Power	5.5kw
Hydraulic Station Power	3kw
Hydraulic Pressure	12Mpa



Material Of Cutting	Cr12Mov quenching 58-62°C
Material Of The Stations	Cast iron
Tolerance	3m+-1.5mm
Electric Source	380V, 50HZ,3 phase Also can satisfy customer’s require
Way Of Drive	1 inch single chain
Color Of The Machine	Yellow and blue
Size of the machine	L*W*H   11m*1.7m*1.7m



Main features and components of the machine

1. Main features

a. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.



b. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.



c. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.



d. It is very easy to install the equipment and suitable for producing in the factory.



e. The machine has features of low noise and high efficiency.



Technological process

Uncoiling—Feeding—Roll forming—Cutting—Products collecting
