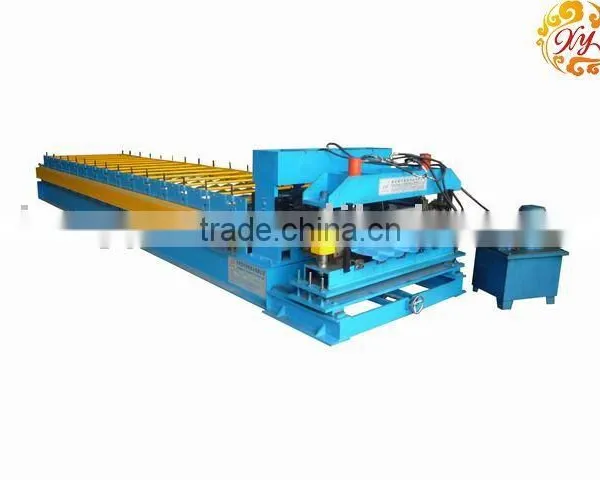

Help CenterGlazed Roofing Forming Machine
Related Products
Specifications
Glazed Roofing Forming Machine,roofing forming machine,steel tile roof forming machineGlazed Roofing Forming Machine,roofing forming machine,steel tile roof forming machine
1. The detailed specifications :
A) Main Technical Specification
1. Material size -width (mm): 1200mm
2. Rolling speed: 3m-5m/min(not including cutting speed)
3. Roller group: 15 groups
4. Roller material: 45# steel, coated with chrome
5. Shaft material: 45# steel after dealing with to enhance the intension of the roller.
6. Main motor power: 5.5Kw
7. Hydraulic station power: 505Kw
8. Hydraulic pressure: 12 Mpa
9. Computer system: PLC: Panasonic Encoder:OMRON Controling desktop: touchscreen computer
10. Material of cutting: Cr12Mov
11.Outside size of machine:8500(L)*1700(W)*1400(H)
14. Voltage: 3-phase/ 220V/ 50HZ
B) Equipment
including: manual decoiler, driving device, roll forming machine, , hydraulic shear, hydraulic station PLC cabinet, output table
C) Flow chart
passive uncoil -- feeding -- adjusted transmit -- formed -- cutting product
2 .Here are the main advantages of our XY brand Rolling Forming Machines:
2.1The structure is simple and the appearance is beautiful. We adopt the shape-steel structure and process as a whole after welding. So the Production lines can be operated stably and strongly.
2.2 All the components on our machine are from first-class enterprises so that ensure the machine running very effectively.
2.3 We adopt the automatic length-fixed forming and cutting system to guarantee the precise and the finished product is smooth without deforming .
2.4 It is easy to be installed and suitable for producing in factory.
2.5 The machine has features of low noise and high efficiency.
