High quality Mingxin brand mining jigging machine for ore processing plant
Product Presentation
Ore dressing by Sawtooth Wave Jig is capable of handling almost full sizes of mineral materials other than very fine material.

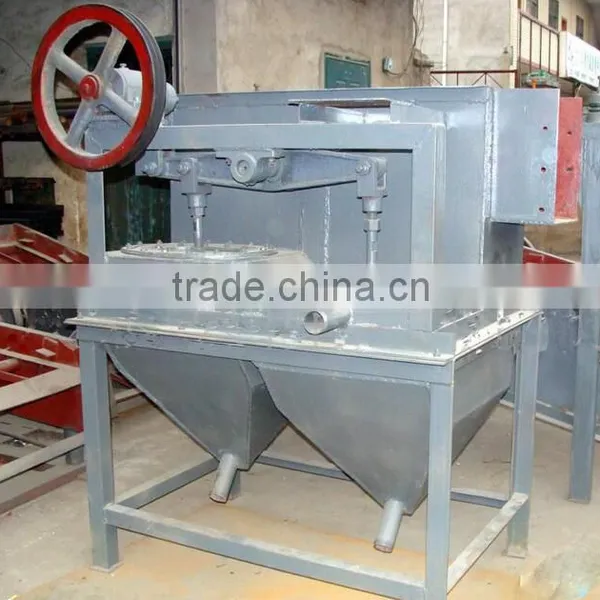

Rectangle Compartment Side Way Action Type Jig is mainly composed of jig box, drive device, water distribution, diaphragm and bibcock. There are two jig buckets with different sizes and each diaphragm is divided into jig area and diaphragm area by clapboard.
Saw-tooth wave jig is suitable for process coarse, medium ores, upper granularity limit to 50 mm, lower limit from 0.2 to 0.074 mm, it’s best to 2-18 mm.It’s often used to process coal, tungsten, tin, gold, iron ore, manganese ore, etc.It’s gravity concentrating equipment , jigging separation process is in saw-tooth wave jig to sorting, the basic principle of jig on market are the same.
Saw-tooth wave jig's core technology is embodied in stroke and jig frequency. It’s determines the speed of water, acceleration and loose bed. Stroke and jig frequency in connection with the material particle size, density and the thickness of the bed. Sorting coarse material the large stroke small jig frequency will be suitable, vice versa.
Features
1 compact structure, small floor area , large processing capacity.
2 adopt CAM mechanism for driving, bring force the saw-tooth waveform jigging cycle curve to make the rising water evenly, falling water speedy, effectively improving the recycling rate of fine grained heavy mineral, perfect mineral separation result .
3 saving water, continuous work.
4 stroke, jig frequency adjustment is convenient, simple installation and maintenance.
Model |
Room |
Room area |
Feed size |
Capacity |
stroke |
jig frequency |
Water consumption |
water pressure |
motor |
Weight |
|
|
|
|
|
|
|
|
|
|
Type |
Power |
|
100×150 |
1 |
0.015 |
less than 3 |
0.018-0.6 |
- |
420 |
- |
1-1.5 |
Y80L-4 |
0.55 |
130 |
300×450 |
2 |
0.27 |
less than 12 |
3-6 |
0-26 |
322 |
2-4 |
1-1.5 |
Y90S-4 |
1.1 |
|
Company Profile
Jiangxi Mingxin Metallurgy Equipment Co., Ltd.(The former is Shicheng Mingxin Equipment Factory) is dedicated to engineering and manufacturing eco-friendly waste recycling machinery and mining Equipment. Covering an area more than 60 acres, our company is a national high-tech enterprise, Comprehensive quality management standard, measuring a qualified provincial enterprises, Jiangxi Province famous trademark, passed ISO9001: 2000 quality system certification standards, with independent import and export rights, lists as the one hundred enterprises in Ganzhou city,large taxpayer as well as a contract-honoring and faith-keeping AAA enterprise.
Our company sticks to combine science research and practice to engineer and develop high efficiently energy-saving new product.Most products were awarded national patents and sold around the world receiving a good reputation.
MingXin people are expecting cooperation and mutual development from customers domestically and abroad based on its best quality products and reasonable price as well as sincerely perfect service through enterprising spirit and technical innovation together with consolidated unity and relentless exploration.
We can provide the following guarantee
1, competitive price and perfect quality
2, the fast delivery time
3, influential production in China
4, fast after-sales service
