Product Details
Condition: | New | Type: | Flotation Separator | Production Capacity: | 0.06-0.18 m3/m |
Place of Origin: | Jiangxi, China | Brand Name: | MinXing | Model Number: | SF |
Voltage: | 380V/50hz , can be customized, 380V/50Hz or customized | Power(W): | 1.5 | Dimension(L*W*H): | 500*500*600 |
Weight: | 0.045-2.66 tons/chute | Certification: | SGS | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
hydrosizer machine for sale

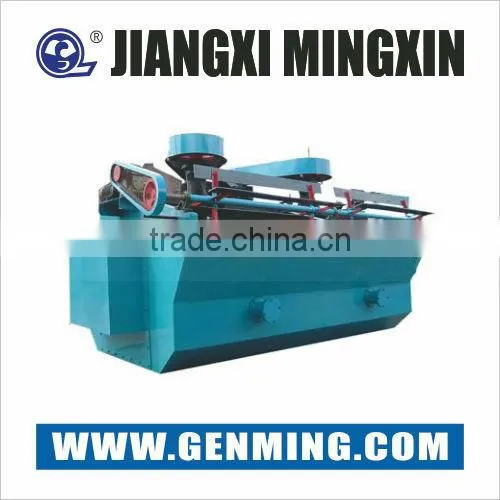

SF flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to roughing and scavenging of large and middle scale flotation plants.
Advantage
Breathe in high volume, low power consumption
Spare parts have long use life
Each tank with suction, suction pulp and flotation triple function, its flotation circuit, without any auxiliary equipment, the level of configuration, easy to change in the process
Mineral slurry cycle reasonably, which can minimize coarse sand deposits, is advantageous to the coarse mineral flotation.
The mineral slurry has self-control device, convenient adjustment.
Working principle
SF type flotation machine impeller rotates, the fluctuation of the impeller chamber under the action of pulp in the upper and lower blades generate centrifugal force is flung around, make up and down the impeller chamber form a negative pressure zone.At the same time, the upper cover plate of the circular hole drawn into the pulp after the cover on the impeller chamber, formed on the pulp cycle.To throw the blade pulp, its lower pulp to complement to the center, forming the next cycle of pulp.And the suction pipe, center air cylinder is sucked into the impeller chamber, blended with inhaled pulp, forming a large number of tiny air bubbles, steady flow through the cover board, evenly dispersed in the groove, form the mineralized bubbles.Mineralized bubbles rise to the foam layer, scrape by scraper is the foam products.
Specifications
hydrosizer
Mining machine
fast delivery as they are in stock
1 year Gurantee
Good quality
Spiral Concentrator in stock
Centrifugal concentrator in stock
Ball mill in stock
Diaphragm Jig in stock
Descriptions
It uses in classifying in non-ferrous and ferrous metal mineral. SF is the mechanical agitation type, and it can own draw It can own draw the inspiration and the pulp; Compared to A, its spirit is big , and the power loss low, and the impeller lap wears lightly; JIF has the self-absorption ability, the suction intensity big, and it may adjust the air input in 0.1---1m3/m2min; the impeller diameter is small, the rotational speed low, consuming electricity few, also advantageous for the automatic control.
Impeller of model SF flotation cell is composed of the dosed double section cones and ot can produce strong smutty cycle doumward.Its features are as follows:
(1)The capacity of air suction is large, the power consumption is low.
(2)Every tend has three functions of air suction, slurry suction and flotation simultaneously being unique in flotation return circuit without need for any supplement and equipment, the circuit change is convenient for horizontal location.
(3)The slurry cycle is rational, the settlement of coarse sand can be reduced into full play.
(4)The regulation is convenient to equip auto and electro-controlling arrangements for slutty level.

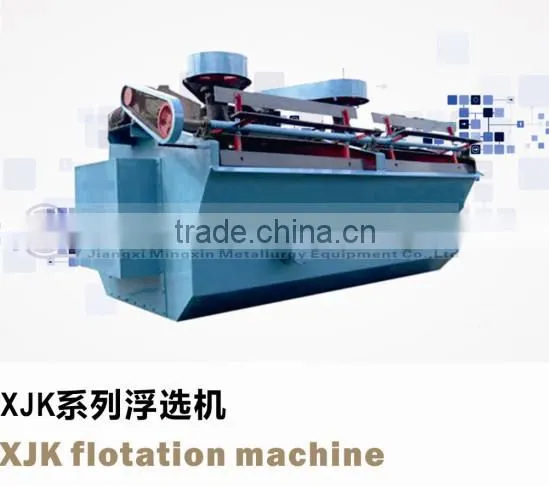

XJK-A series flotation machine is suitable for the flotation process, the ferrous metal mineral, also available in non-metallic mineral classification; it is suitable specially for the ore ,which is contaminated of fine grain, and ingredient complex, as the mineral separation process is able to obtain the good separation effect.
The merit : The air input and the productivity are big; its structure is simple, thus the service is convenient; the impeller and the lap are composed of the wear-resisting rubber, which may carry on the design according to the
user.
Style No. | impeller diameter (mm) | impeller speed (m3/m) | capacity(m3/m) | impeller motor | scraper motor | Groove size(mm) | ||
Type | Motor power(kw) | Type | Motor power(kw) | |||||
SF-0.15 | 200 | 536 | 0.06-0.18 | Y100-6 | 1.5 | Y80L-4 | 0.55 | 500x500x600 |
SF-0.37 | 296 | 386 | 0.2-0.4 | Y90L-4 | 1.5 | Y80L-4 | 0.55 | 700x700x750 |
SF-1.2 | 450 | 312 | 0.6-1.2 | Y32M-6 | 5.5 | 90S-4 | 1.1 | 1100x1100x1100 |
SF-2.8 | 550 | 268 | 1.5-3.5 | Y180L-6 | 11 | Y100L-6 | 1.5 | 1700x1600x1150 |
SF-4 | 650 | 220 | 2-4 | Y200L-8 | 15 | Y100L-6 | 1.5 | 1850x2050x1200 |
SF-8 | 760 | 191 | 4-8 | Y250M-8 | 30 | Y100L-6 | 1.5 | 2200x2900x1400 |
SF-10 | 760 | 191 | 5-10 | Y250M-8 | 30 | Y100L-6 | 1.5 | 2200x2900x1700 |
