Flotation Separation Mining Machine since 1988
It's a type of self-priming pulp, breathe in the mechanical agitation flotation machine
Effective volume :0.37~20m3
Product structure diagram

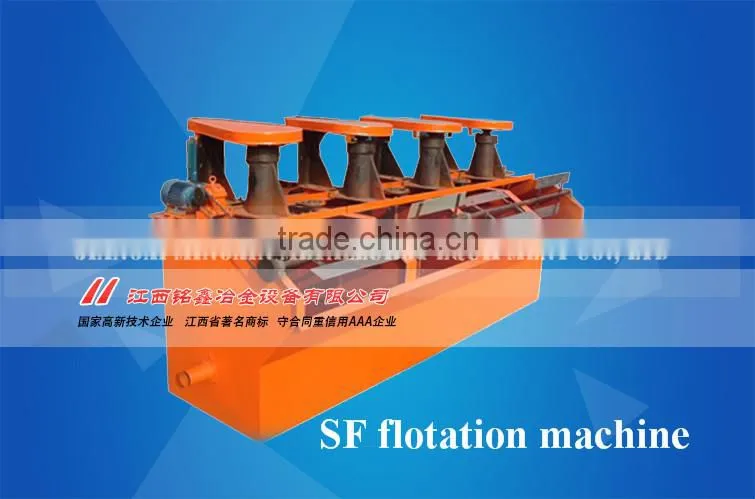

SF type flotation machine used the new structure of the forward type tub, double blade wheel, with the installation of nozzle and false bottom, the flow of the pulp fixed in the groove on the way, under the dual cycle, is advantageous to the suspension of coarse minerals, can be self-priming air, self-priming pulp, don't need the foam pump..
SF type flotation machine can be widely used in non-ferrous metal, black metal and nonmetal mineral, and is suitable for large and medium-sized flotation plant roughing and scavenging homework.
SF flotation machine is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to roughing and scavenging of large and middle scale flotation plants.
Advantage of flotation machine
Breathe in high volume, low power consumption
Spare parts have long use life
Each tank with suction, suction pulp and flotation triple function, its flotation circuit, without any auxiliary equipment, the level of configuration, easy to change in the process
Mineral slurry cycle reasonably, which can minimize coarse sand deposits, is advantageous to the coarse mineral flotation.
The mineral slurry has self-control device, convenient adjustment.
The impeller with the type of upper and lower blade. Upper blade produce recycle on the mineral slurry , lower blade produce recycle under the mineral slurry .
Mechanical stirring, self inspiratory, self-priming pulp.
Can type and JJF flotation mechanism into joint flotation unit, as each operation’s suction slots.

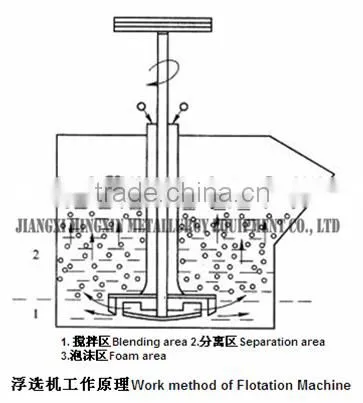

Working principle of flotation machine

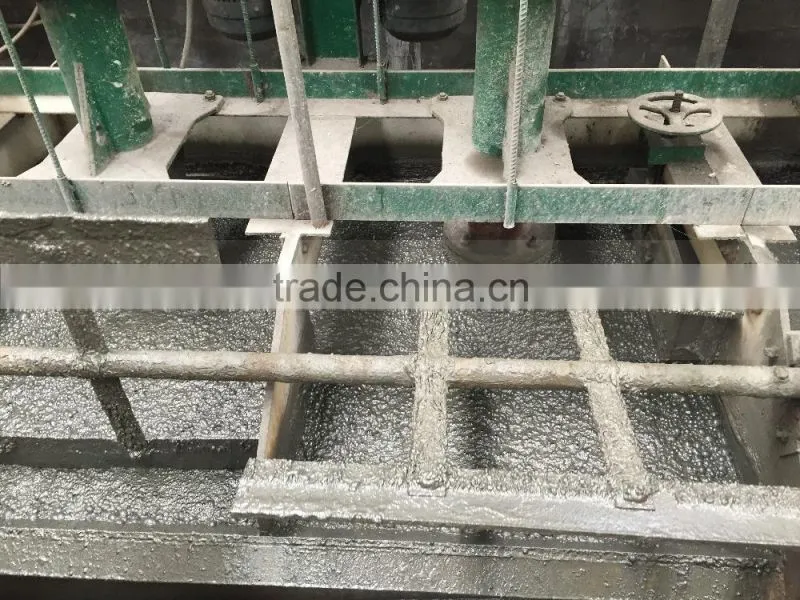

SF type flotation machine impeller rotates, the fluctuation of the impeller chamber under the action of pulp in the upper and lower blades generate centrifugal force is flung around, make up and down the impeller chamber form a negative pressure zone.At the same time, the upper cover plate of the circular hole drawn into the pulp after the cover on the impeller chamber, formed on the pulp cycle.To throw the blade pulp, its lower pulp to complement to the center, forming the next cycle of pulp.And the suction pipe, center air cylinder is sucked into the impeller chamber, blended with inhaled pulp, forming a large number of tiny air bubbles, steady flow through the cover board, evenly dispersed in the groove, form the mineralized bubbles.Mineralized bubbles rise to the foam layer, scrape by scraper is the foam products.
Style No. |
impeller diameter (mm) |
impeller speed (m3/m) |
capacity(m3/m) |
impeller motor |
scraper motor |
Groove size(mm) |
||
Type |
Motor power(kw) |
Type |
Motor power(kw) |
|||||
SF-0.15 |
200 |
536 |
0.06-0.18 |
Y100-6 |
1.5 |
Y80L-4 |
0.55 |
500x500x600 |
SF-0.37 |
296 |
386 |
0.2-0.4 |
Y90L-4 |
1.5 |
Y80L-4 |
0.55 |
700x700x750 |
SF-1.2 |
450 |
312 |
0.6-1.2 |
Y32M-6 |
5.5 |
90S-4 |
1.1 |
1100x1100x1100 |
SF-2.8 |
550 |
268 |
1.5-3.5 |
Y180L-6 |
11 |
Y100L-6 |
1.5 |
1700x1600x1150 |
SF-4 |
650 |
220 |
2-4 |
Y200L-8 |
15 |
Y100L-6 |
1.5 |
1850x2050x1200 |
SF-8 |
760 |
191 |
4-8 |
Y250M-8 |
30 |
Y100L-6 |
1.5 |
2200x2900x1400 |
SF-10 |
760 |
191 |
5-10 |
Y250M-8 |
30 |
Y100L-6 |
1.5 |
2200x2900x1700 |
Company Profile
Jiangxi Mingxin Metallurgy Equipment Co., Ltd.(The former is Shicheng Mingxin Equipment Factory) is dedicated to engineering and manufacturing eco-friendly waste recycling machinery and mining Equipment. Covering an area more than 60 acres, our company is a national high-tech enterprise, Comprehensive quality management standard, measuring a qualified provincial enterprises, Jiangxi Province famous trademark, passed ISO9001: 2000 quality system certification standards, with independent import and export rights, lists as the one hundred enterprises in Ganzhou city,large taxpayer as well as a contract-honoring and faith-keeping AAA enterprise.
Our company sticks to combine science research and practice to engineer and develop high efficiently energy-saving new product.Most products were awarded national patents and sold around the world receiving a good reputation.
MingXin people are expecting cooperation and mutual development from customers domestically and abroad based on its best quality products and reasonable price as well as sincerely perfect service through enterprising spirit and technical innovation together with consolidated unity and relentless exploration.
1,Using SF type flotation machine which should be paid attention to?
SF type flotation machine, should first check before starting each place bolt, downtime should be manually before starting generation wheel rotation, to prevent sediment deposition to increase the motor load, SF type flotation machine work should be careful when adjusting the gate height, make the liquid level stable, at any time will be mineralized bubbles on the surface of the ore slurry inflow slot.Should maintain a certain distance between the impeller and stator, SF type flotation machine wear should be paid attention to when replacement, bearing in the pump body once every three months to maintenance.SF type flotation machine, parts, impeller, stator.
2,The use of SF type flotation machine instructions
The appearance of the flotation foam including foam flotation machine of the actual situation, size, color, luster, shape, thickness, strength and fluidity, the phenomenon such as sound, these phenomena mainly determined by adhered on the surface of the bubble of mineral species, quantity, size, color, luster, density, how much dosage of foaming agent, etc .
