SMA Male to Female Connector Antenna Extension Cable

Specifications

SMA Male to Female Connector Antenna Extension Cable
1.gold plated
2. SMA male to female

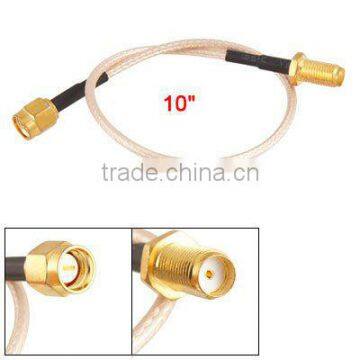

SMA Male to Female Connector Antenna Extension Cable.jpg

75 Ohm RF Coaxial Cable Assembly with I-PEX Plug to I-PEX Plug and Ø1.37mm Cable
1.gold plated braid and connector.
2.SMA connector.
3.apply to communication equipment

IPEX / I-PEX / IPX MHF Series Miniature Micro Coaxial Connector
Features:
SMT Receptacle and Mating Plug Cable Connector
Small form factor and low profile: 1. 5mm to 2. 5mm Max. Mating Height
Applicable 0. 81mm / 1. 13mm / / 1. 32mm / 1. 37mm / RG178
Applicable Technology: IEEE802. 11 a / b / g / n, UWB, WiMax, iBurst, Zigbee, Bluetooth Wireless and MIMO
Specification
Frequency Range: DC to 6GHz (VSWR: 1. 3max. )
Characteristic Impedance: 50 ohm
Temperature: -40 to 90
Rated Voltage: AC 60V
Contact Resistance: 20m ohm Max. (Signal) and 10m ohm Max. (Ground)
Withstand Voltage: AC 200V
Insulation Resistance: 500M ohm Min. / DC 100V Specifications

Technical Specifications:

Impedance:50Ω

Frequency Range:DC to 6GHz

Working Voltage Rating: 375  VRMS

VSWR: 1.30 MAX  0-3GHz

          1.40 MAX  3-6GHz

Insulation Resistance: 5000MΩ Min

Center Conductor Contact Resistance: 2mΩ Max

Outer Conductor Contact Resistance: 2 mΩ Max



Materials:

Body: Brass

Center Contact: Brass

Insulator: PTFE



Surface Plated:

Body:  Gold Plating

Center Contact: Gold Plating



According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
