Specifications
RP-SMA Female RG316 Coaxial Cable1.gold plated
2.SMA connector.
3.EXW price
4.Quick response

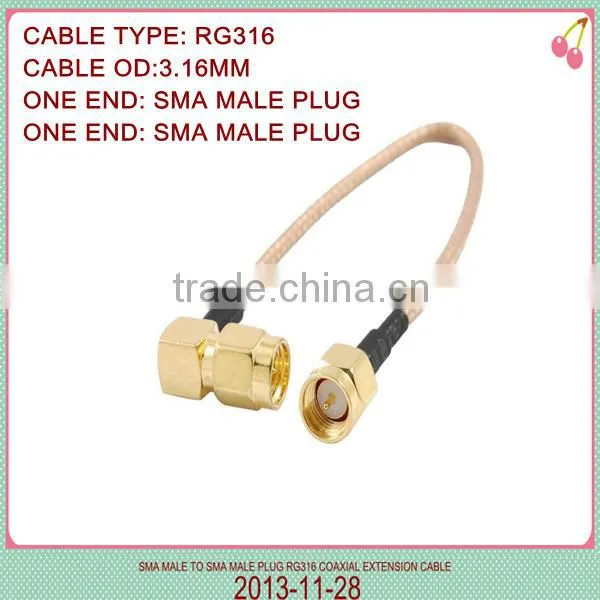

sma male to sma male cable
Technical Specifications:
Impedance:50Ω
Frequency Range:DC to 6GHz
Working Voltage Rating: 375 VRMS
VSWR: 1.30 MAX 0-3GHz
1.40 MAX 3-6GHz
Insulation Resistance: 5000MΩ Min
Center Conductor Contact Resistance: 2mΩ Max
Outer Conductor Contact Resistance: 2 mΩ Max
Materials:
Body: Brass
Center Contact: Brass
Insulator: PTFE
Surface Plated:
Body: Gold Plating
Center Contact: Gold Plating
According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
