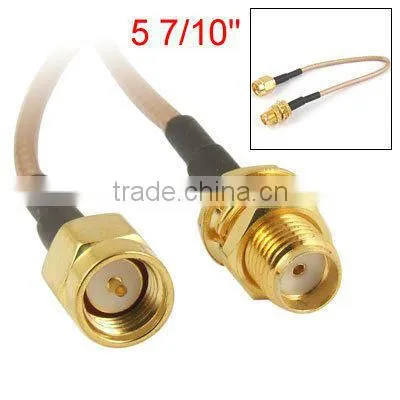

Help CenterRG316 Coax Cable Jumper Pigtail 15cm With SMA Male to SMA Female Nut Bulkhead Crimp
Related Products
-
Rg178 Ipex to Ipex rf Coaxial Connectors Cable Assembly Jumper Cable AssemblyUS$ 0.3 - 1.28MOQ: 500 Pieces -
Sma Male to Sma Male RG316 Coaxial CableUS$ 1.25 - 4.28MOQ: 500 Pieces
-
IPX I-PEX UFL To SMA Female Ipx Cable AssemblyUS$ 0.33 - 1.68MOQ: 500 Pieces
-
rf Cable in Telecommunication With Ipx to SmaUS$ 0.33 - 1.68MOQ: 500 Pieces
-
rg 6 Coaxial Cable With Sma to Sma PlugUS$ 0.33 - 1.68MOQ: 500 Pieces
Specifications
RG316 Coax Cable Jumper Pigtail 15cm with SMA Male to SMA Female Connector1.gold plated
2. SMA male to female
RG316 Coax Cable Jumper Pigtail 15cm with SMA Male to SMA Female Connector
75 Ohm RF Coaxial Cable Assembly with I-PEX Plug to I-PEX Plug and Ø1.37mm Cable
1.gold plated braid and connector.
2.SMA connector.
3.apply to communication equipment
IPEX / I-PEX / IPX MHF Series Miniature Micro Coaxial Connector
Features:
SMT Receptacle and Mating Plug Cable Connector
Small form factor and low profile: 1. 5mm to 2. 5mm Max. Mating Height
Applicable 0. 81mm / 1. 13mm / / 1. 32mm / 1. 37mm / RG178
Applicable Technology: IEEE802. 11 a / b / g / n, UWB, WiMax, iBurst, Zigbee, Bluetooth Wireless and MIMO
Specification
Frequency Range: DC to 6GHz (VSWR: 1. 3max. )
Characteristic Impedance: 50 ohm
Temperature: -40 to 90
Rated Voltage: AC 60V
Contact Resistance: 20m ohm Max. (Signal) and 10m ohm Max. (Ground)
Withstand Voltage: AC 200V
Insulation Resistance: 500M ohm Min. / DC 100V Specifications
RG316 Coax Cable Jumper Pigtail 15cm with SMA Male to SMA Female Connector
Technical Specifications:
Impedance:50Ω
Frequency Range:DC to 6GHz
Working Voltage Rating: 375 VRMS
VSWR: 1.30 MAX 0-3GHz
1.40 MAX 3-6GHz
Insulation Resistance: 5000MΩ Min
Center Conductor Contact Resistance: 2mΩ Max
Outer Conductor Contact Resistance: 2 mΩ Max
Materials:
Body: Brass
Center Contact: Brass
Insulator: PTFE
Surface Plated:
Body: Gold Plating
Center Contact: Gold Plating
According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
