Specifications
rg178 ipex to ipex rf coaxial connectors cable assembly jumper cable assembly1.gold plated braid and connector.
2.SMA connec

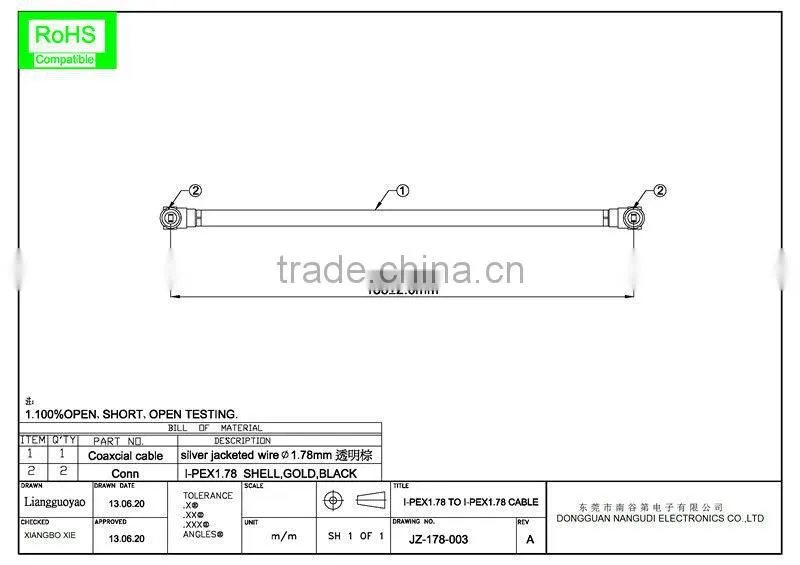

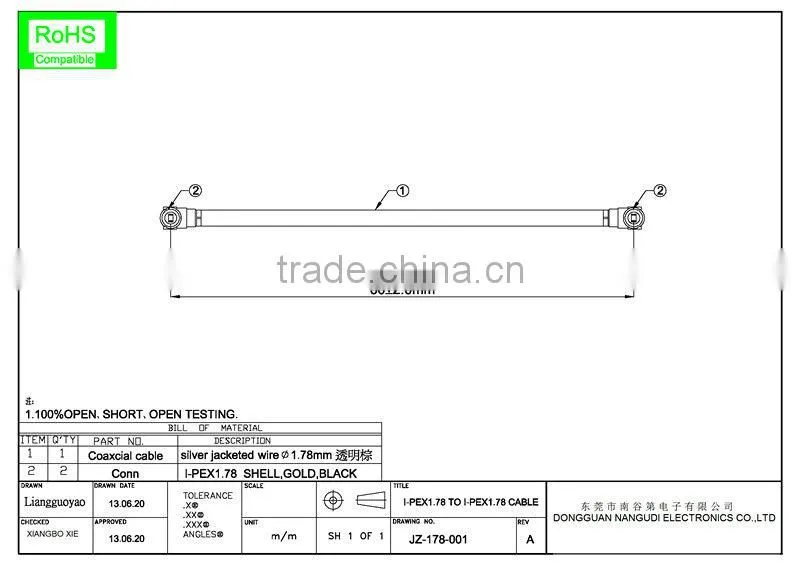

rg178 ipex to ipex rf coaxial connectors cable assembly jumper cable assembly
1.gold plated braid and connector.
2.SMA connector.
3.apply to communication equipment
IPEX / I-PEX / IPX MHF Series Miniature Micro Coaxial Connector
Features:
SMT Receptacle and Mating Plug Cable Connector
Small form factor and low profile: 1. 5mm to 2. 5mm Max. Mating Height
Applicable 0. 81mm / 1. 13mm / / 1. 32mm / 1. 37mm / RG178
Applicable Technology: IEEE802. 11 a / b / g / n, UWB, WiMax, iBurst, Zigbee, Bluetooth Wireless and MIMO
Specification
Frequency Range: DC to 6GHz (VSWR: 1. 3max. )
Characteristic Impedance: 50 ohm
Temperature: -40 to 90
Rated Voltage: AC 60V
Contact Resistance: 20m ohm Max. (Signal) and 10m ohm Max. (Ground)
Withstand Voltage: AC 200V
Insulation Resistance: 500M ohm Min. / DC 100V Specifications
RG178 Pigtial Cable
Technical Specifications:
Impedance:50Ω
Frequency Range:DC to 6GHz
Working Voltage Rating: 375 VRMS
VSWR: 1.30 MAX 0-3GHz
1.40 MAX 3-6GHz
Insulation Resistance: 5000MΩ Min
Center Conductor Contact Resistance: 2mΩ Max
Outer Conductor Contact Resistance: 2 mΩ Max
Materials:
Body: Brass
Center Contact: Brass
Insulator: PTFE
Surface Plated:
Body: Gold Plating
Center Contact: Gold Plating
According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
Send Inquiry to This Supplier
