UL1569 Hook-up Wire RoHS/REACH

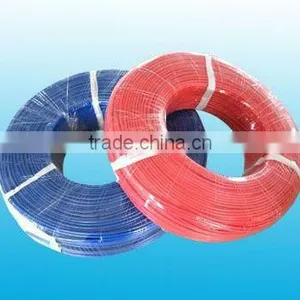

UL1569 Hook-up Wire RoHS/REACH thumbnail-1
UL1569 Hook-up Wire RoHS/REACH photo-1
US$ 0.05 - 0.2 MOQ: 610 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NANGUDI
Model Number:
UL1569
Contact Supplier Request Quote Chat Now
Dongguan Nangudi Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NANGUDI
Model Number UL1569
Type Insulated
Application Other, internal wiring of appliances, Electrical Equipment,circuit
Conductor Material Other, bare copper,tinned copper
Conductor Type Other, solid,stranded
Insulation Material PVC

Specifications

UL1569 Hook-up Wire RoHS/REACH
1,UL approval.RoHS compliant.
2,ISO9001:2008 certified manufacturer.
3,100% inspection

UL1569 Hook-up Wire RoHS/REACH



Packaging & Delivery

Packaging Detail: 2KFT(610M)&1KFT(305M)/Coil
Delivery Time: 5-7 workdays after payment

Product Characteristic :

1)  Tinned,annealed,stranded or solid copper conductor.

2)  PVC insulation.

3)  Rated temperature:80°C.

4)  Resistant to haet,cold,abrasion,tinned flexibility,cut-through,oil,ect.

5)  Passes UL VW-1 & CSA FT1 vertical flame test.

6)  Executive Standard:UL758,UL1581,CSA22.2.



Product Construction:



UL Style & CSA Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance at 20°C
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL1569
(Stranded)		 30 7/0.100 0.41 1.10 2000 610 381.00
28 7/0.127 0.41 1.20 2000 610 239.00
26 7/0.160 0.41 1.30 2000 610 150.00
24 11/0.160 0.41 1.40 2000 610 94.20
22 17/0.160 0.41 1.60 2000 610 59.40
20 21/0.178 0.41 1.80 2000 610 36.70
18 34/0.178 0.41 2.10 2000 610 23.20
16 26/0.250 0.41 2.40 2000 610 14.60
UL1569   (Top-coated) 26 7/0.160 0.41 1.30 2000 610 150.00
24 7/0.200 0.41 1.40 2000 610 94.20
22 7/0.250 0.41 1.60 2000 610 59.40
UL1569    (Solid) 28 1/0.320 0.41 1.15 2000 610 239.00
26 1/0.404 0.41 1.25 2000 610 150.00
24 1/0.511 0.41 1.35 2000 610 94.20
22 1/0.643 0.41 1.50 2000 610 59.40
20 1/0.813 0.41 1.65 2000 610 36.70
18 1/1.024 0.41 1.85 2000 610 23.20







Product Pictures:

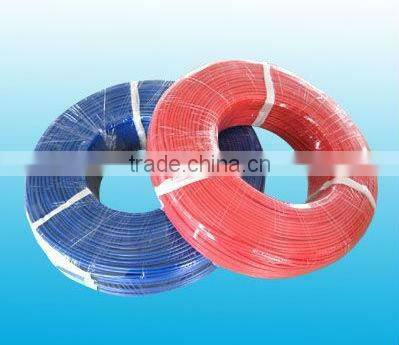

UL1569 Hook-up Wire RoHS/REACH
