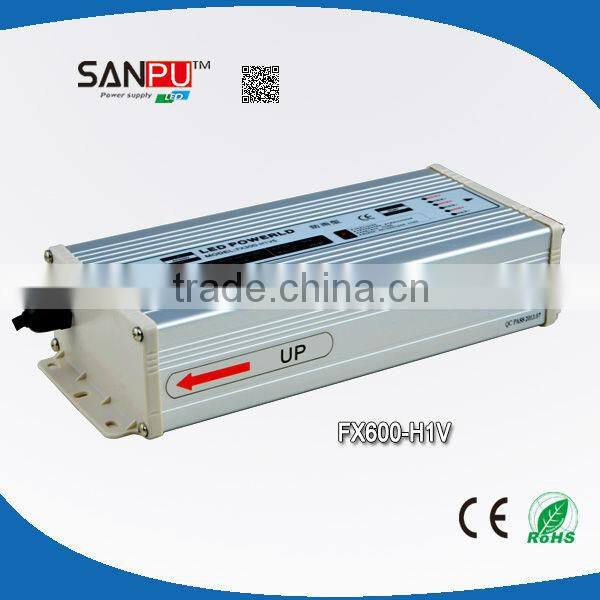

CE ROHS OEM FX600-H1V24 600w 24v ac dc led waterproof switching power supplies

Specifications

Abnormality protection
Various types ,Convenient wiring
2 years warranty
led waterproof switching power supplies

 Features:



1. High efficiency.

2. The product consists of indoor type and outdoor type.

3. Convenient wiring.

4. Abnormality protection function : short circuit ,over load ,over voltage,over temp .

5. Various types for your choice:Constant Voltage Power supply and Constant Current Power supply.

6. Quality assurance: 2 years warranty.

7.48v 600w waterproof switching power supplies

8.International AC input .

9.Built-in EMI fiter .

10.100% full load burn-in test .

















FX Waterproof type     FX 600-H1V
MODEL		24V 600W	27V 600W	48V 600W
OUTPUT	DC VOLTAGE	24V	27V	48V
	RATED CURRENT	25A	22A	12.5A
	CURRENT RANGE	0~25A	0~22A	0~12.5A
	RATED POWER	600W	600W	600W
	RIPPLE& NOISE (MAX.)NOTE2	240mV	240mV	300mV
	VOLTAGE TOLERANCENOTE3	±1%	±1%	±1%
	SETUP , RISE TIME	80ms/220VAC 50ms/220VAC
	HOLD UP TIME(Typ.)	20ms/220VAC
INPUT	VOLTAGE RANGE	180~264VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR(Typ.)	PF>0.6/220VAC
	EFFICIENCY(Typ.)	82%	82%	84%
	AC CURRENT(Typ.)	6.5A/230VAC
	INRUSH CURRENT(Typ.)	COLD START 50A/230VAC
PROTECTION	Short circuit	Protection type : recovers automatically after fault condition is removed
	Over load	105~135% hiccup mode , auto-recovery
	Over voltage	115%~135% Cut off the output , auto-recovery
	Over temperature	Rectifier ≥90°C cut off the output , auto-recovery
ENVIRONMENT	WORKING TEMP	-20°C~ +60°C
	WORKING HUMIDITY	20%~90%RH
	STORAGE TEMP , HUMIDITY	-40°C~+85°C,10%~90%RH
SAFETY & EMC	SAFETY STANDARDS	CE,ROHS
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	EMC Test Standards	EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006;
		EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006
NOTE	1.All paraments NOT specially mentioned are measured at 220VAC input ,reted load and 25°C of ambient temperature 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 10 uf parallel capacitpr . 3.Tolerance : includes set up tolerance , line regulation and load regulation .

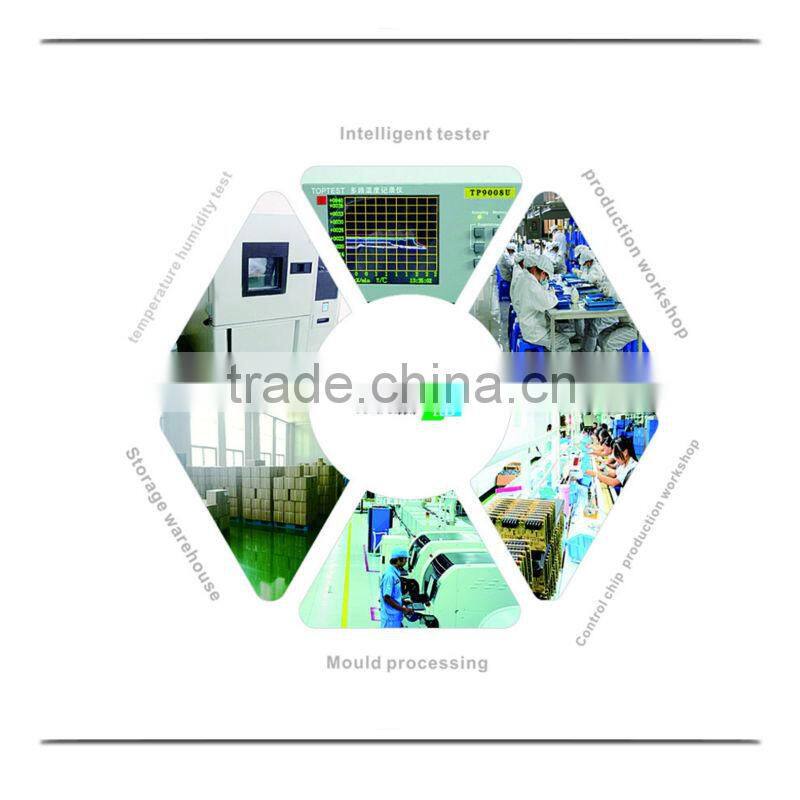

Manufacture procedures
