Steam Autoclave for Sterilizing Medical Waste
- 100 Set / Sets per Month
- Shanghai Port Chongqing Port
- T/T
Product Details
Place of Origin: | Chongqing, China | Brand Name: | Gient | Model Number: | MWO80 |
Type: | Other, Steam Autoclave for Sterilizing Medical Waste |
Packaging Details
Exporting Box
Product Description
Specifications
1. gient brand2. made in China
3. Low price& High quality
4. Global supplier
5. MOQ: 1 set

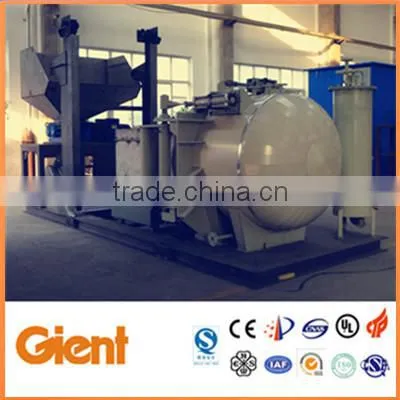

Steam Autoclave for Sterilizing Medical Waste
On-site Integrated Medical Waste Treatment Station (MWO80, MWO160)
Description: Capacity 80kg/cycle and 160kg/cycle, 1t/d-2t/d around, fully automated process, highly integrated on a skid-mounted seat.
Application: Suitable for on-site and in-site treatment of medical waste in hospitals.
Characteristics: Easy to operate, occupying small space.
1. Operating Principle
Medical waste are put into autoclave vessel under saturated steam with temperature 134°C(273°F) and pressure 0.22Mpa(32psi) in 45 min to get fully sterilized; then the sterilized waste sent to shredder to crush into short pieces. The final treated medical with volume reduction of 80% and weight reduction of 20% can achieve the microbial inactivation LOG4 (99.99%) and finally become ordinary city refuse for safe landfill.
2. Complete equipment consists of autoclave system, steam boiler system, shredder system, clean and disinfection unit etc
*Gient provide customized design, autoclave capacity and size can be adjusted as requested. Picture above is only for reference and subject to final.
3. Advantages:
4. Basic Technical Parameter:
MODEL | MWO80 |
Capacity | 80KG/cycle |
Autoclave Loading | Horizontal |
Single Door | Quick Opening Door/ Safety Pin Interlock/Locking Ring |
Size | 5870*2250*3200mm |
Thermal Source | Saturated Steam |
Vacuum Pressure | -0.09Mpa (13psi) |
Pre-vacuum Time | 1 min |
Post-vacuum Time (cooling down time) | 3 min |
Sterilization Pressure | 0.22Mpa (32psi) |
Sterilization Temperature | 134°C (273°F) |
Treatment Cycle | 60 min |
Microbial Inactivation | 99.99 %(LOG4) |
5. Product Details:
6. More models of autoclave system
Model | Capacity (kg/cycle) | Autoclave Bin (Pieces) | Rated Power (kw) | Autoclave Door | Overall Dimension |
MWO80/MWM80 | 80 | 1 | 2 | Single | 5870 x2250 x3200 |
MWO160/MWM160 | 160 | 2 | 2 | Single | 7000 x2400 x3200 |
MWS250 | 250 | 2 | 2 | Single/double | 4000x2200x2280 |
MWS400 | 400 | 3 | 2 | Single/double | 5400x2200x2280 |
MWS650 | 650 | 5 | 2 | Single/double | 7800x2200x2280 |
MWS800 | 800 | 6 | 2 | Single/double | 9000x2200x2280 |
MWS1200 | 1200 | 6 | 2 | Single/double | 9360 x2800 x2880 |
MWS1600 | 1600 | 8 | 2 | Single/double | 12160 x2800 x2880 |
* Power supply: 3N-380V;
* Microbial Inactivation>99.99%
Gient is the largest manufacturer for steam autoclave system of medical waste treatment in China, we provide the best solution of medical waste management for our customer since 1995.
8. Fully Automated Treatment System
Gient provide a complete line of medical waste treatment equipments as one stop turnkey solution, including ancillary and accessory for customer’s options.
Ancillary Equipments for customer’s option:
*Steam Boiler
*Autoclave Bin
*Discharge Conveying Unit
*Cleaning and Disinfection unit
*Cold Storage
We are Looking foward to your inquiry, please contact us at any time. Thank you!
Company Profile
Established in 1995, Chongqing Gient Heating Industry Co., Ltd. (abbreviated as "Gient") is a world leading manufacturer and supplier of medical waste treatment system, which is specialized in designing, fabrication and installation of medical waste treatment system, boilers and energy-saving solutions etc. Gient's marketing network covers dozens of provinces and cities in China, and the products are sold to lots of countries and regions.
As a national level high-tech enterprise, Gient is a professional production base of medical waste treatment equipments that supported by national debts funds of Chinese government and innovation fund of Ministry of Science and Technology. Currently, Gient has 3 series of products, including centralized medical waste treatment system, on-site integrated medical waste treatment station and mobile medical waste treatment station, which will be able to meet the different demands of medical waste treatment.
Gient owns a global leading technology in steam medical waste treatment. With China's first-tier R&D team in the field, Gient owns a number of patented technologies and proprietary technologies, especially in energy efficiency technology, system integration technology, and thermal deodorant technology, etc..
