Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!



Centralized Medical Waste Treatment System(MWS250~MWS1600)


1. Brief Description:

Capacity:250 ~1600kg/h, about 3t/d -20t/day, fully automated and semi automated process are available.

Process:

Shredding prior to sterilization
Application:

Commercial centralized medical waste facilities for cities.
Features:

High efficiency and low operation cost suitable for large amount of medical waste treatment.

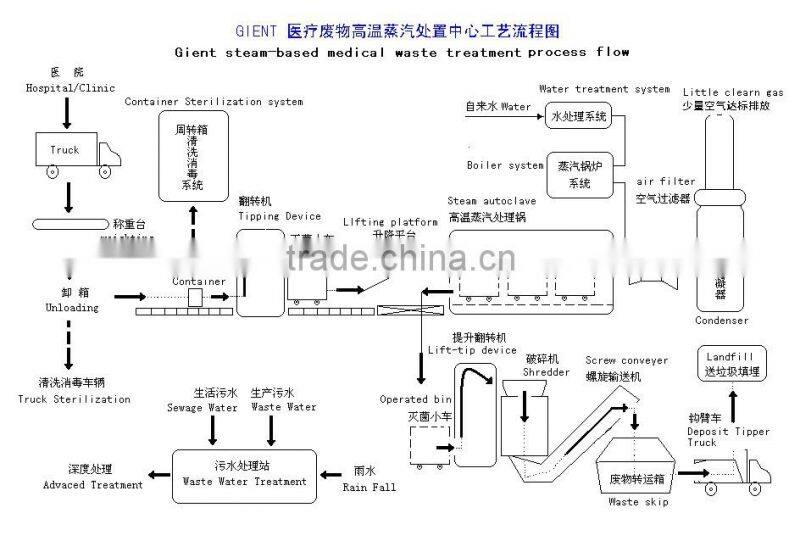

 2. Operating Principle

Medical waste are put into autoclave vessel under saturated steam with temperature 134°C(273°F) and pressure 0.22Mpa(32psi) in 45 min to get fully sterilized; then the sterilized waste sent to shredder to crush into short pieces. The final treated medical with volume reduction of 80% and weight reduction of 20% can achieve the microbial inactivation LOG6(99.9999%) and finally become ordinary city refuse for safe landfill.



 Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!

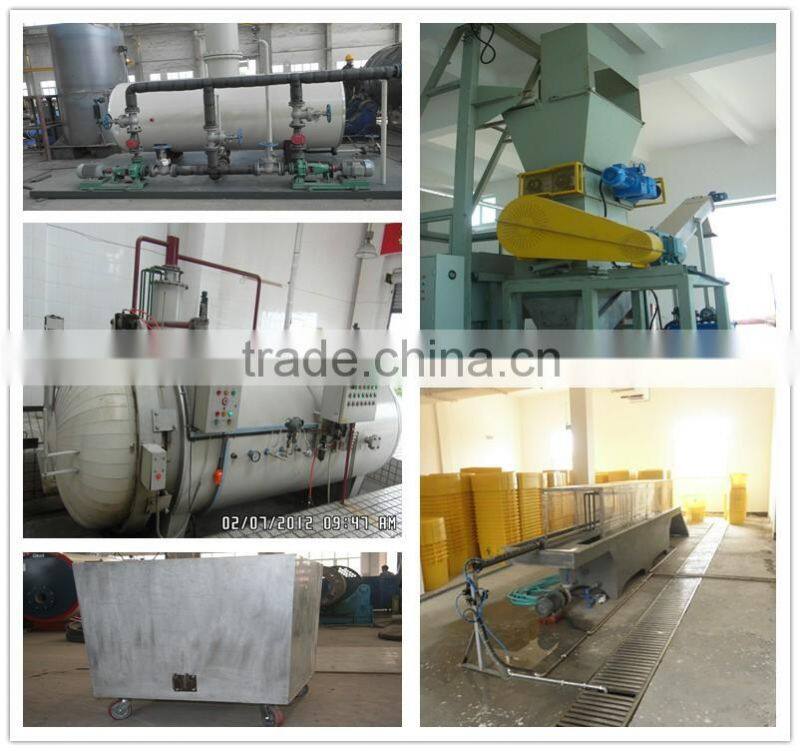

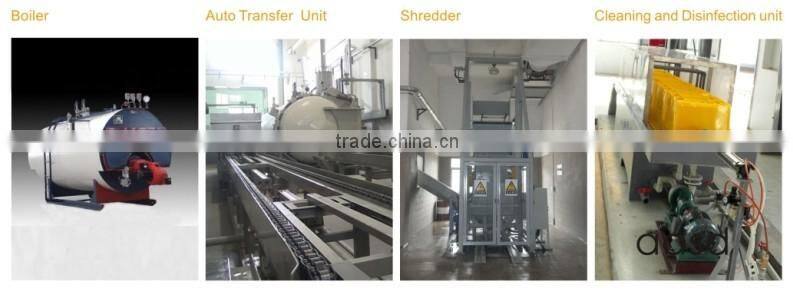

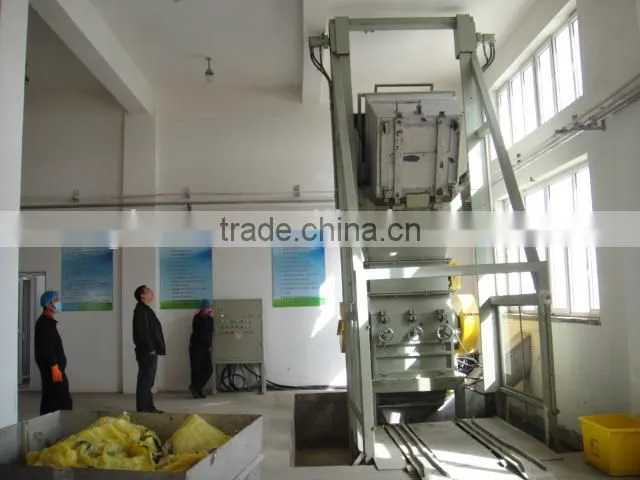

3. Complete equipment consists of autoclave system, steam boiler system, shredder system, clean and disinfection unit etc



Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!



*Gient provide customized design, autoclave capacity and size can be adjusted as requested. Picture above is only for reference and subject to final.





4. Key Features and Advantages
1. Easy and Safe
1) Fully automated operation process
2) User-friendly touch screen for visible process

3) Zero infection risk for operators

4) Multiple safety protection mechanism

2. Economical
1) Proven high efficiency and low operation cost
2) Low maintenance cost
3) 15-year life span
3. Environmental friendly
1) Green process without hazardous emissions
2) Compliance with strict environmental standards worldwide
3) Microbial inactivation efficacy exceeds 99.9999%
4. Smart technology
1) Smart lifelong services based on Gient Monitoring Center(GMC)
2) Self-recording operation data
3) Remote online diagnosis and problem-resolving

4) Data analysis and alarm prior to abnormalities



Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!





5. Basic Technical Parameter:

MODEL: MWS800
Capacity: 600-700KG/cycle
Autoclave Loading: Horizontal
Door: Quick Opening Door/ Safety Pin Interlock/Locking Ring
Size:9000x2200x2280mm
Thermal Source: Saturated Steam
Vacuum Pressure: -0.09Mpa (13psi)
Pre-vacuum Time: 1 min
Post-vacuum Time (cooling down time): 3 min
Sterilization Pressure: 0.22Mpa (32psi)
Sterilization Temperature: 134° C (273° F)
Treatment Cycle: 60 min
Microbial Inactivation: 99.9999 %(LOG6)

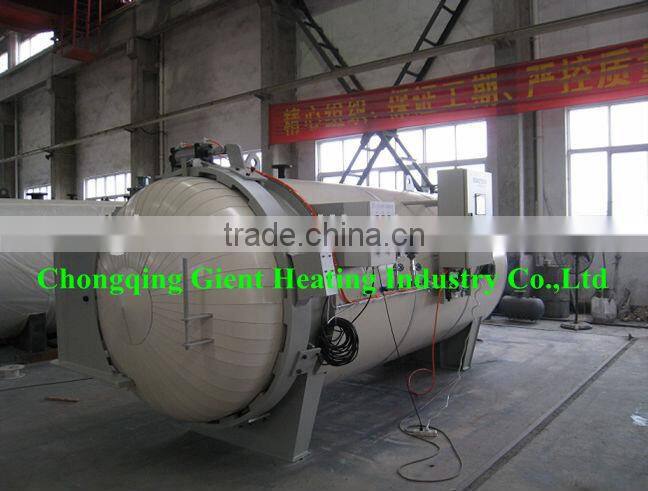

6. Product Details:



Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!

 Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!









7. MWS Series technical specifications



MWS Series

Unit

MWS250

MWS400

MWS650

MWS800

MWS1200

MWS1600

Autoclave System

Size(L*W*H)

mm

4000*2200*2280

5400*2200*2280

7800*2200*2280

9000*2200*2280

9360*2850*2800

12700*2850*2800

Net Weight

t

3.5

4.3

5.5

6.4

10.5

12.5

Rated Power

kw

4

5

8

10

12

15

Operating Parameter

Bin Volume

liter

1000

1000

1000

1000

1600

1600

Bin Qty

pc

2

3

5

6

6

8

Disposal Weight

Kg/cycle

200-240

300-360

500-600

600-720

960-1200

1300-1600

Avg.Cycle Time

min

60

60

70

70

70

70

Consumption/cycle

Steam

kg

70

80

100

120

150

160

Electricity

kWh

0.1

0.1

0.1

0.1

0.15

0.15

Water(Recyclable)

liter

800

1000

1200

1200

2400

3000

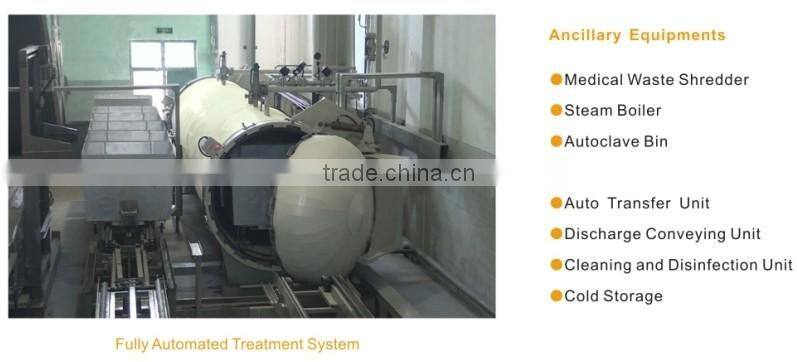

8. Fully Automated Treatment System

 Gient provides packaged supply of medical waste treatment system and customized solutions.

Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!

Gient follows the principle of continuous improvement and innovation, so there may be some difference with the real products. Please contact with Gient sales team as final. We deeply apologize for the inconvenience caused.

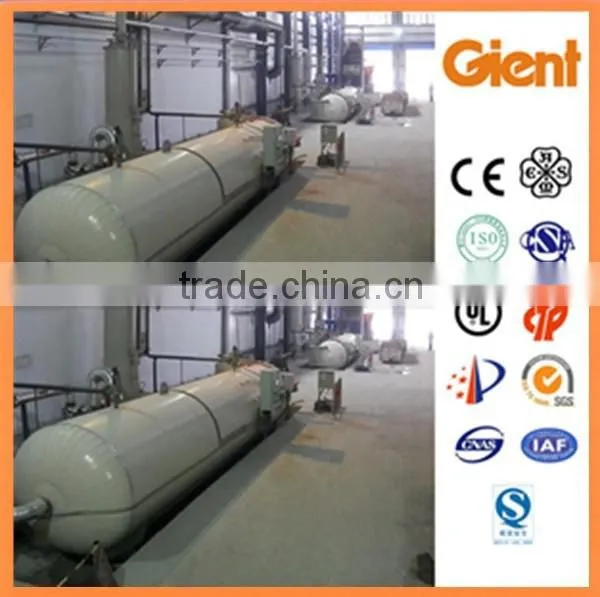

9.  Gient‘s Certificates:



Amazing Price! Fully Automated Line and Large Amount of Medical Waste Treatment!




 Gient is the largest manufacturer for steam autoclave system of medical waste treatment in China, we provide the best solution of medical waste management for our customer since 1995.







       10. More models of autoclave system

Model

Capacity
(kg/cycle)

Autoclave Bin (Pieces)

Rated Power
(kw)

Autoclave Door

Overall Dimension

MWM80/MWO80

80

1

15

Double

5870*2250*3200

MWM160/MWM160

160

1

15

double

7000*2400*3200

MWI300

300

-

14

double

1500*1850*2600

MWI500

500

-

18

double

1800*2100*3000

MWI1000

1000

-

26

double

1900*3300*5000

MWI2500

2500

-

37

double

4300*5100*8000

MWS250

250

2

4

Single/double

4000x2200x2280

MWS400

400

3

5

Single/double

5400x2200x2280

MWS650

650

5

8

Single/double

7800x2200x2280

MWS800

800

6

10

Single/double

9000x2200x2280

MWS1200

1200

6

12

Single/double

9360 x2800 x2880

MWS1600

1600

8

15

Single/double

12160 x2800 x2880

* Power supply: 3N-380V;

* Microbial Inactivation>99.9999%

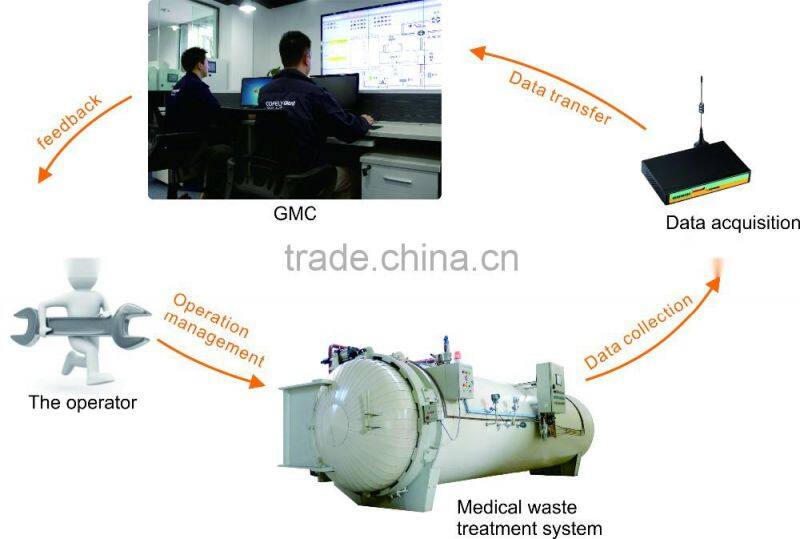

11. The benefits we bring to our clients:

1) Self-recording management: Equipment files ( including equipment documents, system drawings ,spare parts ,maintenance and operation recordings etc) are completely stored in GMC(Gient  Monitoring Center), it can be checked anytime.

2) Remote Expert Management: Expert provide remote guidance for client’s  on-site operation management, which realizes remote diagnosis and problem-solve online as well as reducing the operating cost.

3) Failure Rate Management: Based on the data of the user’s system, GMC can analyze the data and diagnose the equipment. GMC will alarm automatically prior to abnormal problems happen so as to reduce the failure  rate of the equipment.



We are Looking foward to your inquiry, please contact us at any time. Thank you!
