Place of Origin Chongqing, China
Brand Name Gient
Model Number MWO80
Type Other, Autoclave





On-site Intelligent Medical Waste Treatment Station



Steam Autoclave for Medical Waste -HIGHLY INTEGRATED! FULLY AUTOMATED LINE!



Brief Description:

Capacity: 80kg/cycle and 160kg/cycle, about 1t/d-2t/day

Process: Sterilization prior to shredding

Application: on-site treatment of medical waste in hospitals and towns

Features: Highly Integrated and fully automated


1. Operating Principle
Medical waste are put into autoclave vessel under saturated steam with temperature 134° C(273° F) and pressure 0.22Mpa(32psi) in 45 min to get fully sterilized; Then the sterilized waste sent to shredder to crush into short pieces. The final treated medical with volume reduction of 80% and weight reduction of 20% can achieve the microbial inactivation LOG6 (99.9999%) and finally become ordinary city refuse for safe landfill.

Steam Autoclave for Medical Waste -HIGHLY INTEGRATED! FULLY AUTOMATED LINE!

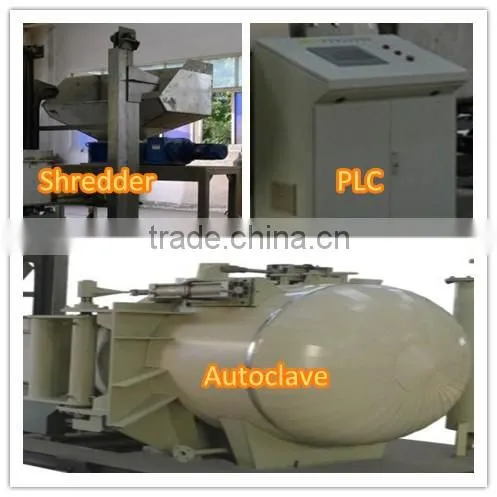

2. Complete equipment consists of autoclave system, steam boiler system, shredder system, clean and disinfection unit etc

3. Key Features and Advantages
Easy and Safe
1) Fully automated operation process
2) User-friendly touch screen for visible process

3) Zero infection risk for operators

4) Multiple safety protection mechanism



Economical
1) Proven high efficiency and low operation cost
2) Low maintenance cost
3) 15-year life span


Environmental friendly
1) Green process without hazardous emissions
2) Compliance with strict environmental standards worldwide
3) Microbial inactivation efficacy exceeds 99.9999%


Smart technology
1) Smart lifelong services based on Gient Monitoring Center(GMC)
2) Self-recording operation data
3) Remote online diagnosis and problem-resolving

4) Data analysis and alarm prior to abnormalities

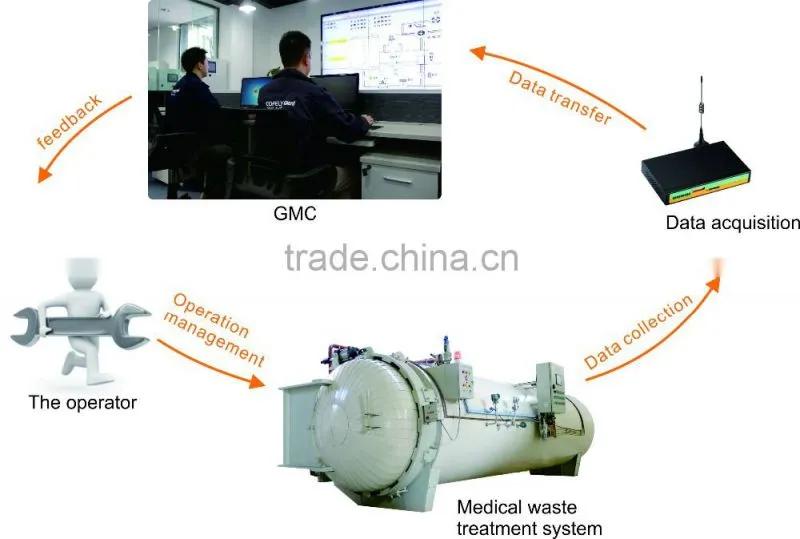

GMC  === feedback ===>  The operator  === Operation Management ===> Medical Waste treatment system  === Data collection= ==>  Data acquisition gateway  ===>  Data transfer ===>GMC



Steam Autoclave for Medical Waste -HIGHLY INTEGRATED! FULLY AUTOMATED LINE!


4. Basic Technical Parameter:
MODEL: MWO80
Capacity: 80KG/cycle
Autoclave Loading: Horizontal
Door: Quick Opening Door/ Safety Pin Interlock/Locking Ring
Size: 5870*2250*3200mm
Thermal Source: Saturated Steam
Vacuum Pressure: -0.09Mpa (13psi)
Pre-vacuum Time: 1 min
Post-vacuum Time (cooling down time): 3 min
Sterilization Pressure: 0.22Mpa (32psi)
Sterilization Temperature: 134° C (273° F)
Treatment Cycle: 60 min
Microbial Inactivation: 99.9999 %(LOG6)

5. MWO Series

MWO Series

Unit

MWO80

MWO160

Basic Parameter

Size(L*W*H)

mm

5870*2250*3200

7000*2400*3200

Net Weight

t

7.0

8.2

Rated Power

kW

15

15

Operating Parameter

Disposal Weight

Kg/cycle

70-84

140-168

Avg. Cycle Time

min

50

50

Consumption/cycle

Steam

kg

30

36

Electricity

kWh

2.5

3.0

Water(Recyclable)

liter

330

650

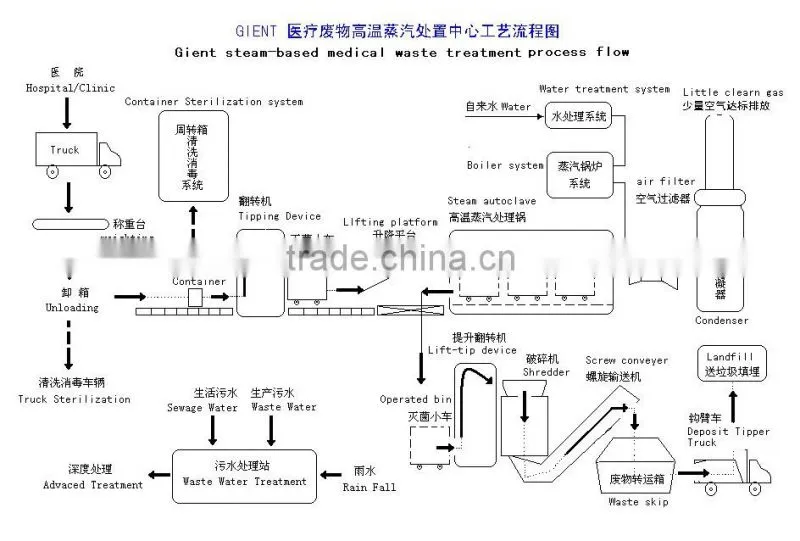

6. Fully Automated Treatment System
Gient provide a complete line of medical waste treatment equipments as one stop turnkey solution, including ancillary and accessory for customer's options.

Ancillary Equipments for customer's option:
*Steam Boiler
*Autoclave Bin
*Discharge Conveying Unit
*Cleaning and Disinfection unit
*Cold Storage



7. Gient‘s Certificates:
   ---ASME (U)
   ---ASME(H)
   ---ASME(S)
   ---CE Certificate
   ---SGS
   ---ISO9001
   ---ISO14001
   ---ISO18001

Steam Autoclave for Medical Waste -HIGHLY INTEGRATED! FULLY AUTOMATED LINE!



Gient is the largest manufacturer for steam autoclave system of medical waste treatment in China, we provide the best solution of medical waste management for our customer since 1995.






 8.  More models of autoclave system

Model

Capacity
(kg/cycle)

Autoclave Bin (Pieces)

Rated Power
(kw)

Autoclave Door

Overall Dimension

MWM80/MWO80

80

1

15

Double

5870*2250*3200

MWM160/MWM160

160

1

15

double

7000*2400*3200

MWI300

300

-

14

double

1500*1850*2600

MWI500

500

-

18

double

1800*2100*3000

MWI1000

1000

-

26

double

1900*3300*5000

MWI2500

2500

-

37

double

4300*5100*8000

MWS250

250

2

4

Single/double

4000x2200x2280

MWS400

400

3

5

Single/double

5400x2200x2280

MWS650

650

5

8

Single/double

7800x2200x2280

MWS800

800

6

10

Single/double

9000x2200x2280

MWS1200

1200

6

12

Single/double

9360 x2800 x2880

MWS1600

1600

8

15

Single/double

12160 x2800 x2880

* Power supply: 3N-380V;

* Microbial Inactivation>99.9999%



9. The benefits we bring to our clients:

1) Self-recording management: Equipment files ( including equipment documents, system drawings ,spare parts ,maintenance and operation recordings etc) are completely stored in GMC(Gient  Monitoring Center), it can be checked anytime.

2) Remote Expert Management: Expert provide remote guidance for client’s  on-site operation management, which realizes remote diagnosis and problem-solve online as well as reducing the operating cost.

3) Failure Rate Management: Based on the data of the user’s system, GMC can analyze the data and diagnose the equipment. GMC will alarm automatically prior to abnormal problems happen so as to reduce the failure  rate of the equipment.

 We are Looking foward to your inquiry, please contact us at any time. Thank you!
