Pressure Steam Sterilization Equipments

Exporting Box

Specifications

1. gient brand
2. made in China
3. Low price& High quality
4. Global supplier
5. MOQ: 1 set



         Pressure Steam Sterilization Equipments









 * Application:



Applied to in-time and on-site treatment of medical waste in emergency case, such as major epidemic or disaster area etc. Also apply to collect and transport small quantity of medical waste which can solve the issue of high-contagious medical pollution during the way of transportation.





Operating Principle







Medical waste are put into autoclave vessel under saturated steam with temperature 134°C(273°F) and pressure 0.22Mpa(32psi) in 45 min to get fully sterilized; then the sterilized waste sent to shredder to crush into short pieces. The final treated medical with volume reduction of 80% and weight reduction of 20% can achieve the microbial inactivation LOGO6 (99.9999%) and finally become ordinary city refuse for safe landfill.















Complete equipment system

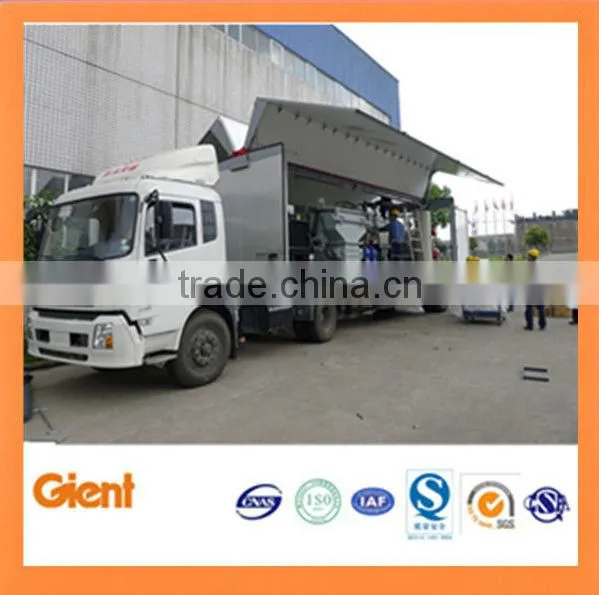

consists of autoclave system, steam boiler system, shredder & lifting device, automatic loading/delivery/un-loading unit, clean and disinfection system, semi-trailer (including wing carriage and vice-linked arm system)











All equipment integarted on a steel board & fixed onto the semi-trailer









*Gient provide customized design, autoclave capacity and size can be adjusted as requested. Picture above is only for reference and subject to final.









Advantages:





1) World Leading Technology in Pollution Control:



Thermal deodorant technology can reduce obnoxious gas emission more than 90%, through effluent disposal technology, waste gas and effluent can meet emission standard and discharge directly. Operator doesn’t need to touch with medical waste during both operating process and maintenance.



2) World Leading & Patented Technology in Practical and Durable Design:



Major equipment with long-life & Pressure-proof design: special galvanized steel material + high-tech protective coating + rigorous treatment process, which can effectively solve aseptic problem of the inner wall to complex environment, such as high temperature, high pressure, high humidity, alternating positive and negative pressure and chloride ions corrosion etc, the normal life of the autoclave is above 15 years.



3) Safe and Easy to Operate:



100% automated system and only one operator can manage all handling process. Safety system is protected by hydraulic, mechanical and electricity systems at the same time.



4) Energy Efficiency



Lowest level of energy consumption in the world, efficient energy-saving operation, minimized power consumption.







Basic Technical Parameter:





MODEL: MWT90



Capacity: 90KG/cycle



Autoclave Loading: Horizontal



Single Door: Quick Opening Door/ Safety Pin Interlock/Locking Ring



Thermal Source: Saturated Steam



Vacuum Pressure: -0.09Mpa (13psi)



Pre-vacuum Time: 1 min



Post-vacuum Time (cooling down time): 3 min



Sterilization Pressure: 0.22Mpa (32psi)



Sterilization Temperature: 134°C (273°F)



Treatment Cycle: 60 min



Microbial Inactivation: 99.99 %(LOGO4)







Gient is the largest manufacturer for steam autoclave system of medical waste treatment in China, we provide the best solution of medical waste management for our customer since 1995.





Product Details:















 We are Looking foward to your inquiry, please contact us at any time. Thank you!
