Integrated hazardous waste treatment facility

Exporting Box

Specifications

             Integrated hazardous waste treatment facility

 *Application:

Applied to in-time and on-site treatment of medical waste in large and medium hospitals and scattered medical waste in rural areas. All equipments are integrated on one steel boar so the installation is quite easy.

Operating Principle

Medical waste are put into autoclave vessel under saturated steam with temperature 134°C(273°F) and pressure 0.22Mpa(32psi) in 45 min to get fully sterilized; then the sterilized waste sent to shredder to crush into short pieces. The final treated medical with volume reduction of 80% and weight reduction of 20% can achieve the microbial inactivation LOGO4 (99.99%) and finally become ordinary city refuse for safe landfill

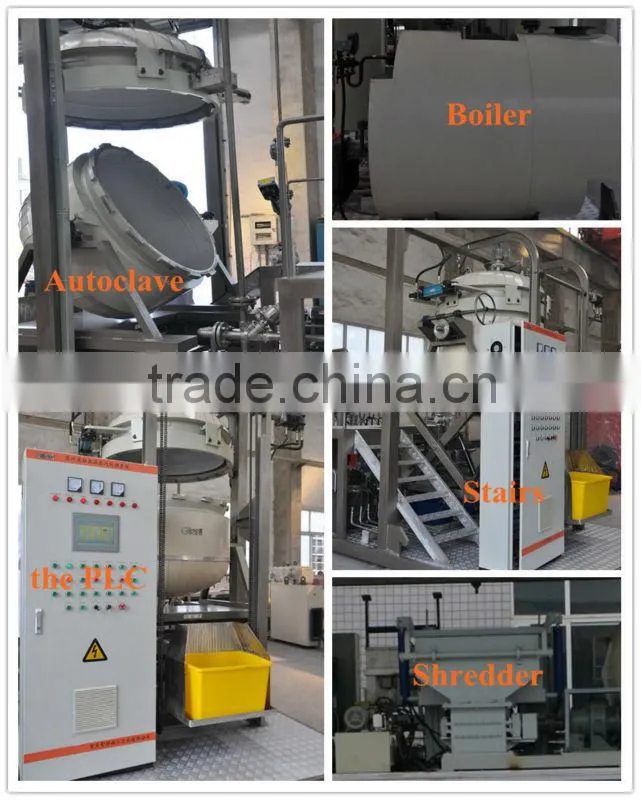

 Complete equipment system

consists of autoclave system, steam boiler system, shredder & lifting device, automatic loading/delivery/un-loading unit, clean and disinfection system etc.

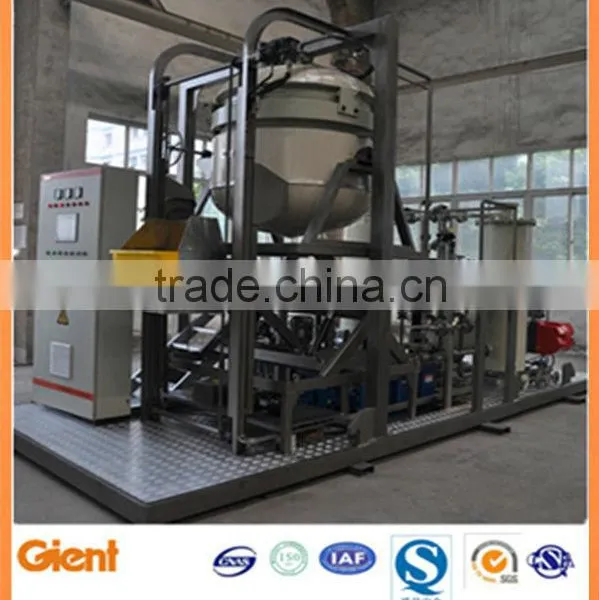

*Gient provide customized design, autoclave capacity and size can be adjusted as requested. Picture above is only for reference and subject to final.

3. Advantages:

1) World Leading Technology in Pollution Control:

Thermal deodorant technology can reduce obnoxious gas emission more than 90%, through effluent disposal technology, waste gas and effluent can meet emission standard and discharge directly. Operator doesn’t need to touch with medical waste during both operating process and maintenance.

2) World Leading & Patented Technology in Practical and Durable Design:

Major equipment with long-life & Pressure-proof design: special galvanized steel material + high-tech protective coating + rigorous treatment process, which can effectively solve aseptic problem of the inner wall to complex environment, such as high temperature, high pressure, high humidity, alternating positive and negative pressure and chloride ions corrosion etc, the normal life of the autoclave is above 15 years.

3) Safe and Easy to Operate:

100% automated system and only one operator can manage all handling process. Safety system is protected by hydraulic, mechanical and electricity systems at the same time.

4) Energy Efficiency

Lowest level of energy consumption in the world, efficient energy-saving operation, minimized power consumption.

 Basic Technical Parameter:

MODEL: MWM40

Capacity: 40KG/cycle

Autoclave Loading: Horizontal

Single Door: Quick Opening Door/ Safety Pin Interlock/Locking Ring

Thermal Source: Saturated Steam

Vacuum Pressure: -0.09Mpa (13psi)

Pre-vacuum Time: 1 min

Post-vacuum Time (cooling down time): 3 min

Sterilization Pressure: 0.22Mpa (32psi)

Sterilization Temperature: 134°C (273°F)

Treatment Cycle: 60 min

Microbial Inactivation: 99.99 %(LOGO4)

Gient is the largest manufacturer for steam autoclave system of medical waste treatment in China, we provide the best solution of medical waste management for our customer since 1995.

Product Details:

 We are Looking foward to your inquiry, please contact us at any time. Thank you!
