Medical Waste Treatment with Medical Waste Bag
*Application:
Applied to centralized disposal center of medical waste treatment in medium and large city.
Operating Principle
Medical waste are put into autoclave vessel under saturated steam with temperature 134°C(273°F) and pressure 0.22Mpa(32psi) in 45 min to get fully sterilized; then the sterilized waste sent to shredder to crush into short pieces. The final treated medical with volume reduction of 80% and weight reduction of 20% can achieve the microbial inactivation LOGO6 (99.9999%) and finally become ordinary city refuse for safe landfill.

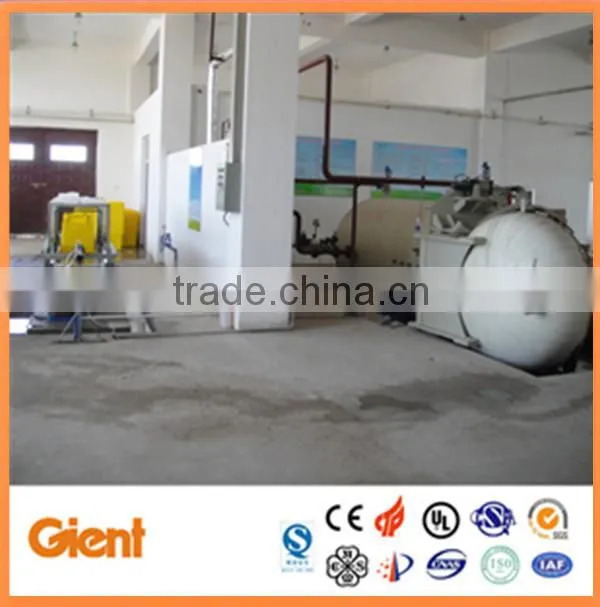

Complete equipment system
consists of autoclave system, steam boiler system, loading & delivery system, shredder & lifting device, clean and disinfection system etc.
*Gient provide customized design, autoclave capacity and size can be adjusted as requested. Picture above is only for reference and subject to final.
Advantages:
1) World Leading Technology in Pollution Control:
Thermal deodorant technology can reduce obnoxious gas emission more than 90%, through effluent disposal technology, waste gas and effluent can meet emission standard and discharge directly. Operator doesn’t need to touch with medical waste during both in operating process and maintenance.
2) World Leading & Patented Technology in Practical and Durable Design:
Major equipment with long-life & Pressure-proof design: special galvanized steel material + high-tech protective coating + rigorous treatment process, which can effectively solve aseptic problem of the inner wall to complex environment, such as high temperature, high pressure, high humidity, alternating positive and negative pressure and chloride ions corrosion etc, the normal life of the autoclave is above 15 years.
3) Safe and Easy to Operate:
Highly automated process that is easy to handle& triple protected by hydraulic, mechanical and electricity systems at the same time.
4) Energy Efficiency:
Lowest level of energy consumption in the world, efficient energy-saving operation, minimized power consumption.
Basic Technical Parameter:
MODEL: MWS800
Capacity: 800KG/cycle
Autoclave Loading: Horizontal
Single Door: Quick Opening Door/ Safety Pin Interlock/Locking Ring
Thermal Source: Saturated Steam
Overall size: 9000*2200*2280mm
Vacuum Pressure: -0.09Mpa (13psi)
Pre-vacuum Time: 1 min
Post-vacuum Time (cooling down time): 3 min
Sterilization Pressure: 0.22Mpa (32psi)
Sterilization Temperature: 134°C (273°F)
Treatment Cycle: 60 min
Microbial Inactivation: 99.9999 %(LOG6)
Gient is the largest manufacturer for steam autoclave system of medical waste treatment in China, we provide the best solution of medical waste management for our customer since 1995.
Product Details:

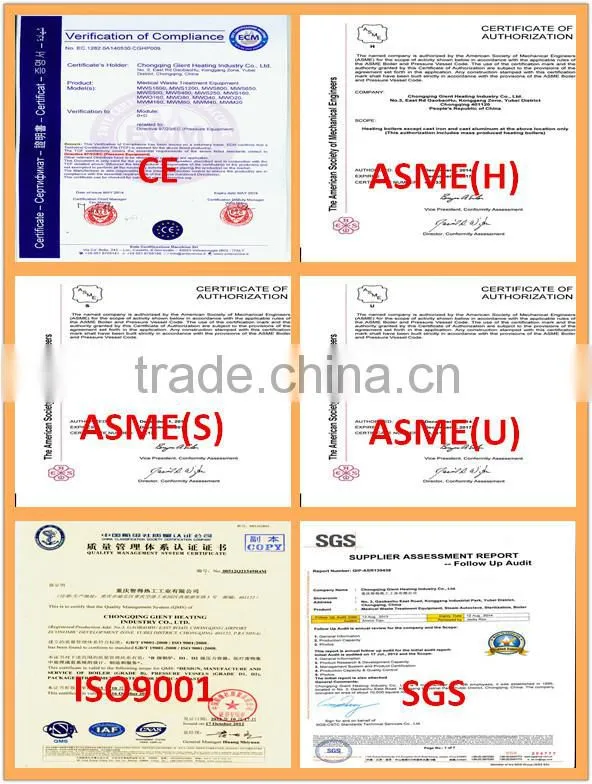

Certificates:
We are Looking foward to your inquiry, please contact us at any time. Thank you!
