Home > Products > FeCrAl & NiCr Wire Strip > STA High quality vape coil fecral 0cr23al5 heating wire
STA High quality vape coil fecral 0cr23al5 heating wire
- 5000 Kilogram / Kilograms per Month
- Any China port
- T/T L/C D/P D/A Credit Card
You May Like
-
STA Fecral heating wire 0Cr25Al5 resistance Wire
-
STA FeCrAl Electric Heating Wire,Iron chrome aluminium alloy heating wire
-
STA CE Approved Electric Heating Resistance FeCrAl Wire
-
STA FeCrAl electric heater element wire 0Cr25Al5
-
STA FeCrAl heating resistance wire for Diffusion furnaces
-
ZhengZhou STA High quality FeCrAl alloy resistance wire
Product Details
| Place of Origin | Henan, China | Brand Name | STA | |
| Model Number | 0Cr25Al5, 0Cr23Al5, 0Cr27Al7 | Type | Bare | |
| Application | Other, furnace, oven, heaters and other heating elements, industry heating elements,home appliance | Conductor Material | Other, FeCrAl | |
| Conductor Type | Solid | Insulation Material | Other, none |
Product Description
1.Product forms and size range
Round wire
0.010-12 mm (0.00039-0.472 inch) Other sizes are available on request.
Ribbon (flat wire)
Thickness: 0.023-0.8 mm (0.0009-0.031 inch)
Width: 0.038-4 mm (0.0015-0.157 inch)
Width/thickess ratio max 60, depending on alloy and tolerance
Other sizes are available on request.
2.Physical parameter:
1) Wire diameter: 0.025 ~ 0.20mm
2) Pure nickel has the ability to withstand relatively high temperatures without deterioration. Maximum operating temperature is approximate 600°C .
3) Nickel wire is available in single strand or multi-strand construction. It is supplied from stock either bare, or insulated.
3. Main chemical composition:
| Type | Cr | NI | Fe |
| Cr15Ni60 | 15-18 | 55-61 | rest |
| Cr20Ni80 | 20-23 | 77-80 | 0 |
| Cr20Ni30 | 18-21 | 30-35 | rest |
4. Properties:
| Type | Cr15Ni60 | Cr20Ni80 | Cr20Ni30 |
| Max continuous service Temp of element(°c) | 1100 | 1150 | 1100 |
| Density (g/CM3) | 8.2 | 8.4 | 7.9 |
| Melting point (°c) | 1390 | 1400 | 1390 |
| Elongation(%) | >20 | >20 | >20 |
| Resistivity(Ωmm/m2) | 1.12±1.15 | 1.09±1.14 | 1.04±1.06 |
5. Features:
(1) High electric resistance (2) Antioxidant (3) High tensile strength under high temperature (4) Good formability and weldability (5) Long service life

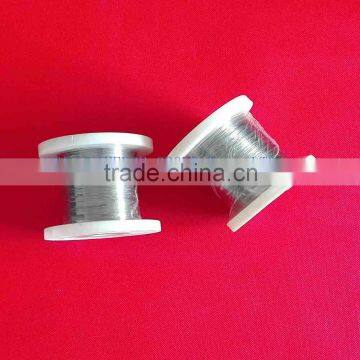

6. More pictures of our products
